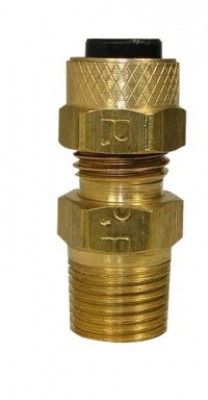

Str Fitting 1/8 NPT-1/4 Comp

$6.50/Each
Part# 06-01137
MFR Model# MSC268P
ImageDescriptionPNMatco
Part No.
Straight 1/8" NPT - 1/4" Compression06-01137MSC268P

Overview

Matco brake tubes, brass fittings, straight fittings, elbow fittings, T-fittings, ferrules, & nuts.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Parfait

Gilles C Verified Purchase

Str Fitting 1/8 NPT-1/4 Comp

April 2, 2024

Just right for my use.

Boyd E Verified Purchase

Str Fitting 1/8 NPT-1/4 Comp

October 4, 2023

as ordered

Bill P Verified Purchase

Str Fitting 1/8 NPT-1/4 Comp

February 4, 2023

Easy to use and they work great.

James B Verified Purchase

Str Fitting 1/8 NPT-1/4 Comp

January 11, 2022

Got here quick and complete

Michael D
March 5, 2020

Gotta have these just in case of a seeping brake line. Finger tight and one turn of the wrench and you’re back in business.

Loren
January 24, 2020

Great fittings for aircraft brake lines. Makes connections very easy.

Greg P
January 20, 2020

Bought the 06-01139 (90 degree) and it works fantastic with my grove brakes to connect the caliper to the nylon brake line. quality product and cheap!

Nic C
January 24, 2019

Hi quality parts that fit well. The inner sleeve holds line nicely

Al F
April 8, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the ID,wall thickness and bursting pressure of the .125 brake line? Who is the manufacturer?

The ID of this would be .073". Wall thickness would be .026". Bursting pressure of 2,100 PSI, working pressure of 600 PSI. The manufacture would be Parker.

Q: For the tubing listed on this page: what is the length sold at the price quoted per unit?

The tubing listed on this page is priced and sold per foot.

Q: Do the fittings & elbows come with the ferrule and nut as shown in the photos, or must they be ordered separately?

Yes they come as shown in the photo.

Q: Is the 1/4 fitting for tubing that is 3/16 OD?

No they will be for 1/4" tubing.

Q: What is the ID,wall thickness and bursting pressure of the .25 brake line, part # 06-01133?

This will have a burst pressure of 1700 psi. The ID is 0.215" while the wall thickness is 0.035".

Q: Will the nut with 1/4 ferrule PN 06-01134 fit on the other end of the 90 degree elbow PN 06-01139? I want a ferrule on both ends.

For that to work an adapter is required, please see part # 05-12251.
