Grove 500X5 Standard Axle

0 Reviews 0 Answered Questions
From $114.75 to $122.75
Main Image
Description Part Number Price Buy
Grove 500X5 Standard Axle 5013
06-00917
$122.75
Quantity
Grove 1-1/4 Axle With Wheel Pant Stub
06-00601
$114.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The most popular axle for 500x5 wheels.
Designed to fit 500x5 Grove and Cleveland wheels.

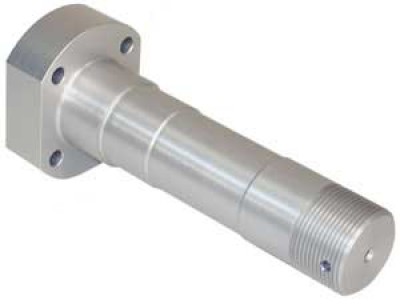

500x5 Standard Axle
PN 06-00917
* Diameter: 1-1/4"
* Material: Solid 2024-T3 aluminum with anodized finish
* Type 1Hole Pattern:
1-15/16" Bolt Circle
1/4" diameter holes
* Axle Weight: 0.92 lbs.
* Static Load Rating 1,250 lbs.
* Requires two spacers. Part Number 5710 per axle.
* For use with Grove 50-1, 51-1, 56-1, 57-1, 57-5 and Cleveland 500x5 wheels.

500x5 Standard Axle With Wheel Pant Stub
PN 06-00601
Axle has built-in wheel pant stub with 1/4-28 thread.
* Diameter: 1-1/4"
* Material: Solid 2024-T3 aluminum with anodized finish
* Type 1 Hole Pattern:
1-15/16" Bolt Circle;
1/4" diameter holes
* Axle Weight: 0.95 lbs.
* Static Load Rating 1,250 lbs.
* Requires two spacers. Part Number 5710 per axle.
* For use with all Grove 5" wheels with 1-1/4" bearings.
