| Description | Part Number | Price | Buy |
|---|---|---|---|
| Skybolt Spruce Kit Click Here for Kit Components | 02-05700 | $3916.07 | |
| Skybolt Spruce Spar Kit Click Here for Kit Components | 02-07900 | $3283.22 | |
| Skybolt 4130 Tubing Kit Click Here for Kit Components | 03-15500 | $6058.78 |
Overview
|

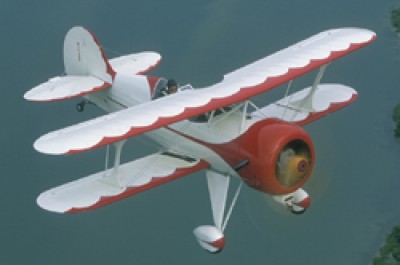

The Skybolt is a 2 place fully aerobatic biplane which is also an excellent cross country aircraft. It is larger and easier to handle than smaller biplanes, and construction can be completed with hand tools by first time builders. We have provided materials for many Skybolt builders around the world for over 20 years. Contact: Steen Aero Lab 1451 Clearmont St. NE, Palm Bay, FL 32905 Phone: (321) 725-4160 Fax: (321) 725-3058 |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Kit Price Without Engine: ~$25,000
- Plans Price: $165
- Number of Seats: 2
- Building Materials: T, W ,F
- Building Time: ~3000 Hours
- Standard Engine: Lycoming IO-360 / 180 hp
- Horsepower: 180-350
- Wing Span: 23'
- Wing Area: 153 sq ft
- Empty Weight: 1000 lbs
- Gross Weight: 1800 lbs
- Takeoff Distance: 300'
- Landing Distance: 800'
- Cruise Speed: 180 mph
- Top Speed: 225 mph
- Fuel Capacity: 29 Gallons
- Range: 450 miles
