BendixKing Xpoint 100 Engine Data Monitoring For Experimental Aircraft

Select Cylinders
4 Cylinders6 Cylinders
Quantity
Add to Wishlist

Overview

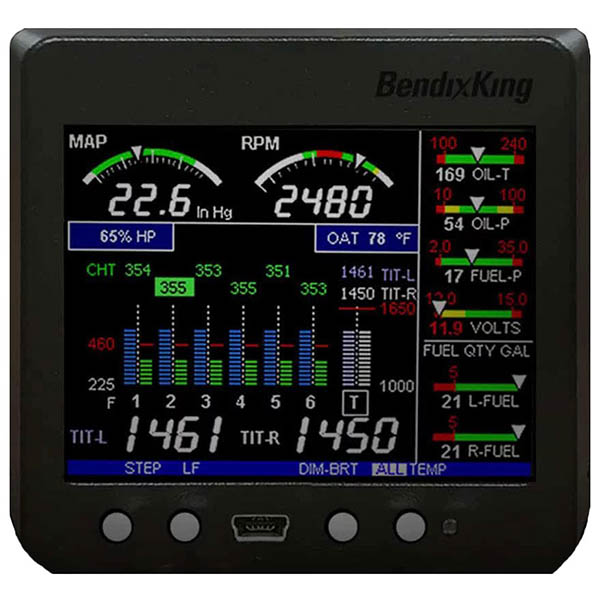

The xPoint 100 is a high-resolution / low-cost piston-engine indication system for experimental aircraft. Extremely compact, this advanced solution provides incredible resolution and legibility packaged in a 13-ounce unit.

SAVE SPACE & WEIGHT Extremely compact system: 3.5” square footprint, the high-resolution screen provides excellent legibility, which helped to reduce the overall LRU (line replaceable unit) size. The xPoint 100 weighs 13 ounces, with each probe and 8’ of cable weighing an additional 3 ounces, so impact on payload remains minimal.

ADVANCED CAPABILITIES Advanced and accurate for experimental engines, this small yet powerful system offers a wide variety of engine parameter displays from TIT (turbine inlet temperature) to Fuel Flow.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Pre-wired harness for all functions
  • New display SVGA & view angle 85 degrees all around
  • Back lit buttons
  • Exhaust gas temperature
  • EGT Normalize mode
  • Differential EGT
  • Cylinder head temperature
  • Voltage (VDC)
  • Shock cooling
  • LOP/ROP JPI exclusive leaning mode
  • 3-year warranty

Specifications

  • Dimensions 3.47” H x 4.81” W x 3.56” D
  • Weight 13 Oz
  • 1°F resolution
  • Accuracy ½%
  • Display 1000 nits
  • Voltage 7.5 to 35 volts at ½ amp
  • Note: Connectors are recessed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This page does not contain any information about sensors and harnesses. How do we go about getting a full system quote?

Please contact our Avionics Sales team for full system pricing and lead time. Additional probes and sensors can be added for functionality of systems.

Q: What sensors/harnesses are included with the BendixKing Xpoint 100? Or is it just the instrument?

Included:
Harness (all functioning)
EGT probes
CHT probes
VDC probe
LOR/ROP
The Instrument
