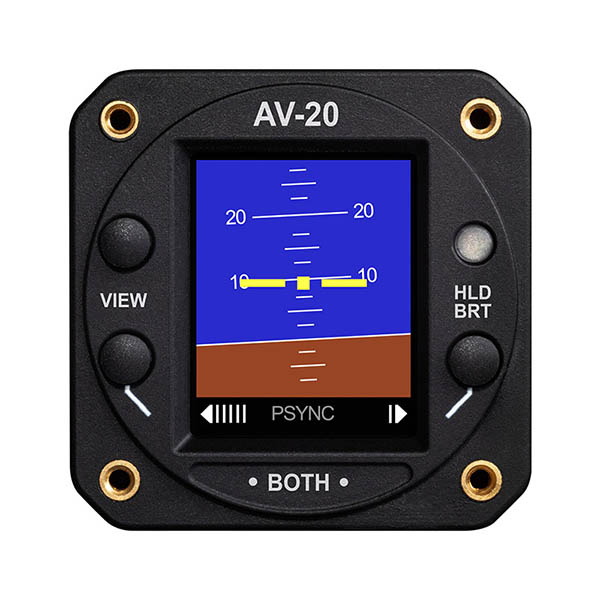

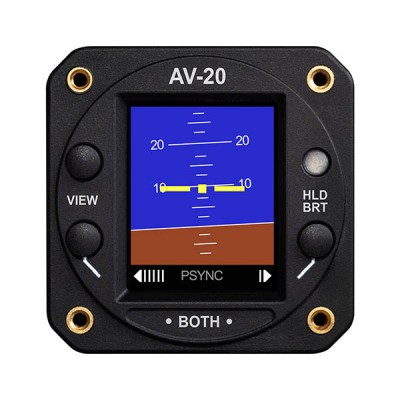

uAvionix AV-20-E Multi-Function Display - Experimental Only

0 Reviews 0 Answered Questions
$895.00/Each
Quantity
Add to Wishlist
Part# 11-20344
MFR Model# UAX-90062-01

Overview

Transform your panel without sacrificing simplicity.

Complement Your Panel with a 12-In-1 Display that adds a suite of in-flight information to nearly any panel. Designed to seamlessly fit in a standard 2 1/4-inch round instrument opening, the AV-20-E offers a standby attitude indicator, angle of attack, bus voltage, slip/skid Indication, outside air temperature, density altitude, G meter, and more—all protected with a 30-minute internal battery backup for uninterrupted function in the event of power loss. Now also approved by the FAA as an advanced time-keeping device equivalent and hence a replacement for the sweep-second-hand clocks of old. The unit is considered a replacement for clocks in Part 23, Class I and II IFR aircraft per advisory circular AC 20-94A.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • AoA Display (Voice Alerting & Peaks)
  • G-Meter Display (Voice Alerting & Peaks)
  • Attitude (Roll / Pitch)
  • Slip / Skid Indication (NEW!)
  • Clock (GMT / Local)
  • Outside Air Temperature (C / F)
  • Bus Voltage Display
  • Dual User Timers (Count Up / Down)
  • Engine Run Timer
  • Flight Timer
  • Density Altitude Display
  • True Airspeed Display (Kts / Mph)
  • Internal Battery Operation (30 Min)

Specifications

  • Input Voltage Nominal: +10 to +32 VDC
  • Input Voltage Max: +60 VDC
  • Input Power Nominal: 3 Watts (0.25 Amps @ 12VDC)
  • Input Power Max: 6 Watts (0.50 Amps @ 12VDC)
  • Required Circuit Breaker: 1 Amp
  • Operation on Battery: 30 Minutes (Standard 15°C Env)

  • Physical Attributes
    • Mounting Configuration: 2 1/4” Round Instrument Hole
    • Dimensions wo/Connector: 2.4 x 2.4 x 1.2 Inches
    • Weight: 0.25 Lbs.

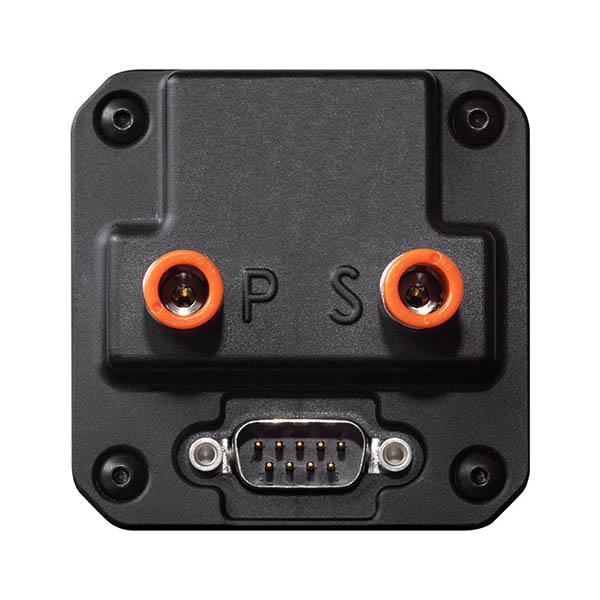

    • Electrical Connector: 9 Pin Male D-Sub

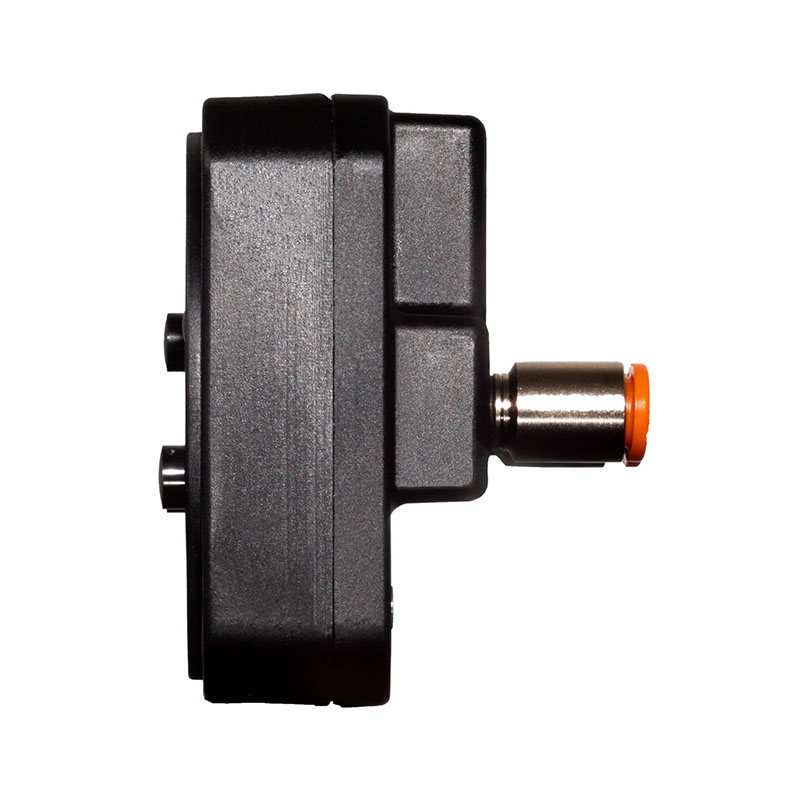

    • Pneumatic Connectors: 1/4" OD Quick Connect
    • Mounting: (4X) #6-32 Machine Screws
    • Case Material: High Impact ABS Plastic
  • Environmental
    • Operating Temp: -20°C to +55°C
    • Storage Temp (48 Hrs): -30°C to +80°C (Via Analysis)
    • Humidity (48 Hrs): 90% RH (Via Analysis)
  • Display
    • Diagonal Size: 1.8” Circular
    • Contrast Ratio (Typical): 500
    • Brightness (Typical): 1000 cd/m2
    • Viewing Angle Left/Right:60°
    • Viewing Angle Up: 45°
    • Viewing Angle Down: 10°
    • Backlight Lifetime (Typical): 50,000 Hrs

Benefits

Sunlight Readable Display - Goodbye Glare
  • With a matte display, AV-20E is visible in direct sunlight and automatically adjusts brightness to ambient light.
Audio Alerts - Eyes On the Sky
  • Fly focused and aware with customizable audio alerts. AV-20S’ many display configurations offer several audio triggers to alert you of critical flight information.
Probeless Angle of Attack - Avoid Stalls
  • The AV-20E alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.

In The Box

  • OAT probe is NOT included and must be purchased separately. The AV-20-E is compatible with the industry standard Davtron Analog probe, C307PS.
