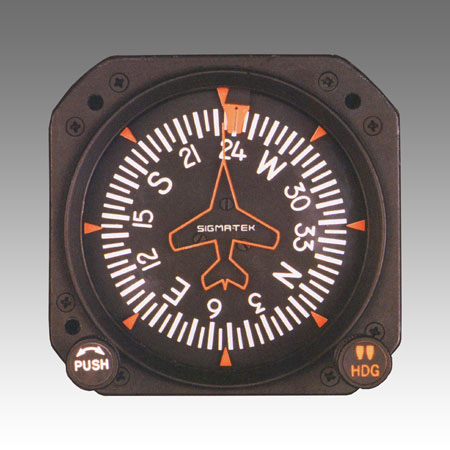

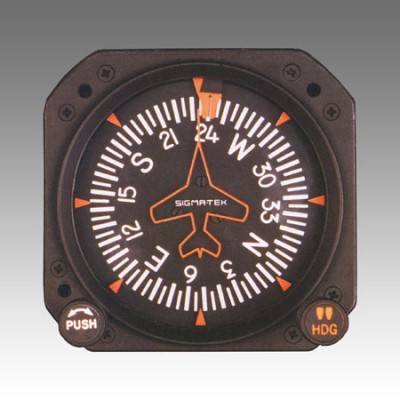

- Photo may represent series and not specific product
- SHARE
Sigma-Tek 4000H Series Xyz Bootstrap Directional Gyro
From $3246.00 to $4532.00
| Sigma-Tek | Model | Autopilot Interface | Airplane Index | Dial @ 30 Deg. | Letters @ 90 Deg. | Lighted | Part Number | Price | Buy |
|---|---|---|---|---|---|---|---|---|---|
| 1U262-031-1 | 4000H | None | Orange | White | Yes | Yes | 10-05142 | $3246.00 | |
| 1U262-033-3 | 4000H-2 | ARC | Orange | White | Yes | Yes | 10-05143 | $4532.00 | |
| 1U262-034-4 | 4000H-3 | ARC | Orange | White | Yes | No | 10-05144 | $4447.00 | |
| 1U262-033-5 | 4000H-4 | S-TEC | Orange | White | Yes | Yes | 10-05145 | $4447.00 | |
| 1U262-034-6 | 4000H-5 | S-TEC | Orange | White | Yes | No | 10-02106 | $4342.00 | |
| 1U262-035-7 | 4000H-6 | CFS | Orange | White | Yes | Yes | 10-05146 | $4521.00 | |
| 1U262-036-8 | 4000H-7 | CFS | Orange | White | Yes | No | 10-05147 | $4199.00 | |
| 1U262-039-11 | 4000H-10 | KING (DC) | Orange | White | Yes | Yes | 10-05149 | $4273.00 | |
| 1U262-040-12 | 4000H-11 | KING (DC) | Orange | White | Yes | No | 10-05150 | $4184.00 | |
| 1U262-237-9 | 4000H-8 | CFS (DC) | Orange | White | Yes | Yes | 10-05148 | $4183.00 |
Overview
|
Sigma Tek's Directional Gyro with heading synchro output provides a cost effective link to "bootstrap" other instruments requiring heading information for: display orientation to aircraft heading, heading stabilization functions, and other navigational calculations and/or solutions. Specific applications include: Argus Moving Map Display®, L-3 Avionics Stormscope®, and Insight Strike Finder®. The heading output exactly tracks the aircraft heading as depicted under the index pointer on the Directional Gyro. The synchro index and rotation reference is set to ARINC characteristics. The 26 VAC, 400 HZ heading synchro requires a readily available external excitation, preferable from the instrument/system receiving the heading output or from an independent inverter. Sigma Tek's Directional "Bootstrap" gyro includes options for lighting and interfaces for ARC, Century Flight System, and S-Tec autopilots. The Bootstrap gyros offer cost-effective ways for adding heading syncro information for systems such as: Moving Map Displays, Storm Scopes, Insight Strikefinder, and various Auto-Pilot interface options. NOTE: Lighted instruments do not include lamp trays, please see accessories to purchase separately. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
The 4000H-series is compatible with the following systems:L-3 Avionics Stormscope®:
WX-11
WX-500
WX950
WX1000
Argus Moving Map Display®:
Model 5000
Model 7000
Insight Strike Finder®:
All Models
Specifications
- Height: 3.25"
- Width: 3.38"
- Depth: 6.68" (max)
- Weight: 2.5 lbs. (max)
- Markings: Matte white
- Finish: Dull black
Pin Out - Connector: S24008-002
- Pin A: CT Stator (X) Black
- Pin B: CT Stator (Y) Blue
- Pin D: CT Stator (Z) Yellow
- Pin E: CT Rotor (H) Red/White
- Pin H: CT Rotor (C) Black/White
Environmental Characteristics - Temperature: -30° to 50° C
- Vibration:
- - CPS: 5 to 50
- - Maximum Double Amplitude: 0.020 in.
- - Maximum Acceleration: 1.5 G's
- Humidity: 0% to 95% at 32° C
- Altitude: 0 to 40,000 ft.
