MGL Capacitance Fuel Level Senders
FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

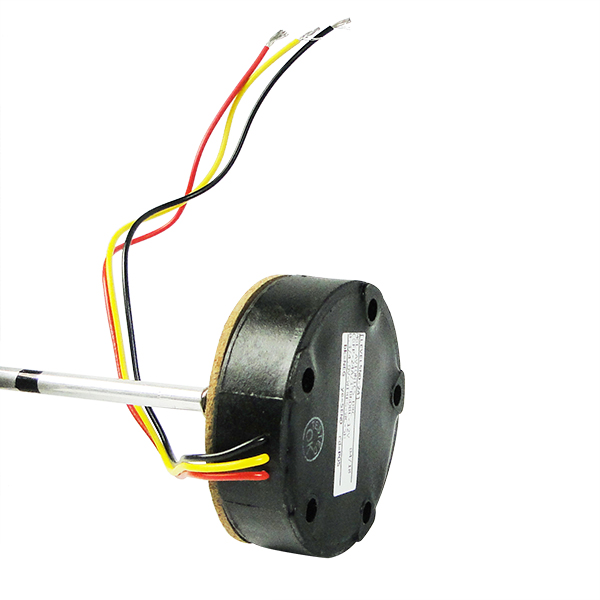

Capacitance Fuel Level Sender, Bendable, Cutable. Senders are produced by Centroid Products. MGL Avionics Capacitance Probe is available in 12" or 24" long. The senders can be bent above the black mark on the probe (first several inches only), and they can be cut to length. If the sender is NOT cut, there is NO Empty/Full Calibration that needs to be done on the sender - you go straight to Fuel Level Calibration on the EFIS. If the sender HAS been cut shorter, then the Empty/Full Calibration must be done before EFIS Fuel Level Calibration is done. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Product arrived quickly, well packed, and in good condition. It is not yet installed, but it will replace similar product made by Swift. The Swift product (at least one of two) was damaged by the NTSB when they were analyzing the cause of engine-out off-airport landing. The Swift units seem easily damaged and their price has doubled, leading me to buy the competition.
Verified Purchase
MGL Capacitance Fuel Level Sender Bendable Cutable 24
Perfect for my 1951 MG TD which has a 19 deep fuel tank and came with only a low fuel warning float sensor, which is stuck low. With this cut-down 24 unit and a LM3914 ten segment LED indicator display I will have a complete FULL to EMPTY reading on my dash.
Wow! These work great. After trying a float sender, that wouldnt read any fuel below 1/2 tank then trying the same type of sender as this MGL but I didnt change more than a volt, and wouldnt change readings above 1/2 tank. Horrible luck! Finally after working directly with Aircraft Spruce, they mentioned MGL makes a sender. Once it was installed it worked great. Now I can see the whole tank, not just 1/2. And there is no calibration on the sender itself because the voltage stays within limits of 0.3v and 4v. I calibrated the MGL iEFIS and thats it. It worked. Easily bendable. Careful not to bend it beyond its radius limit, or below its black mark. The other senders did not include the mark, adding to the confusion.
Worked very well for my application, did not give 5 stars due to the fact that it looks nothing like the picture it is not adjustable as the picture would suggest Nor does it have the screws on the top which would have worked better for me. I have the Taskem EFI and it worked very well with it and priced right as well.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per MGL: This probe comes with the wires needed for use. The probe does not have to be sealed when going through a 1/4 brass fitting hole.
The probe tube will have a black mark showing the end of the bendable area from the mounting base. It is 3-5 inches long.
We do not have any data to support use of MGL senders with out manufacturer systems. They very well may work, but we cannot guarantee or recommend it.
0 volts empty, 4 volts full.
Height: 0.72
Diameter: 2.625
