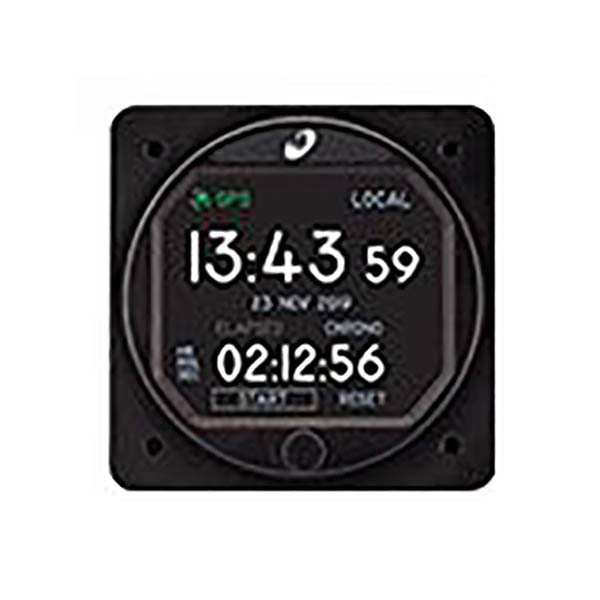

Mid-Continent Flex MD23-190 Digital GPS Clock

0 Reviews 0 Answered Questions
$3361.00/Each
Quantity
Add to Wishlist
Part# 10-07602
MFR Model# MD23-190

Overview

Digital GPS Clock 2-inch, 10-32 VDC, LCD, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Date, Time to Waypoint, Hobbs, Run Timer

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 9 Functions Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Date, Time to Waypoint, Hobbs, Run Timer
  • Receives ARINC 429 input to sync with a GPS source
  • Maintains accuracy, even if GPS input is unavailable
  • Outputs time to external equipment and provides Estimated Time (ET) to your next waypoint
  • Clock settings include 12- or 24-hour mode and seconds ON or OFF
  • Standard 2-inch size
  • Lightweight — 0.4 lbs
  • Simple user interface — Single, push-and-turn control knob
  • Daylight readable LCD and smooth, high-resolution graphics
  • Manual external lighting control or built-in photocell for automatic dimming
  • Night Vision Imaging System (NVIS) compatible (available)
  • Field-upgradeable software via standard USB-A port
  • TSO-certified (Design Assurance Level A)
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Power Input:
  • 10–32 VDC
  • 0.14A @ 28 VDC; 4 watts nominal
  • Data Input: ARINC 429: Low or high speed; Labels 150, 252
  • Data Output: ARINC 429: Low or high speed; Label 150
  • Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
  • Battery: Rechargeable coin cell (memory only)
  • Weight: 0.4 lbs (0.17 kg)
  • Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
  • Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
  • Mating Connector: MCIA P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
  • Certification:
  • FAA TSO certified to C113b
  • RTCA DO-160G qualified
  • RTCA DO-178C qualified, Design Assurance Level (DAL) A
  • Rights: U.S. Patent 11,048,389
