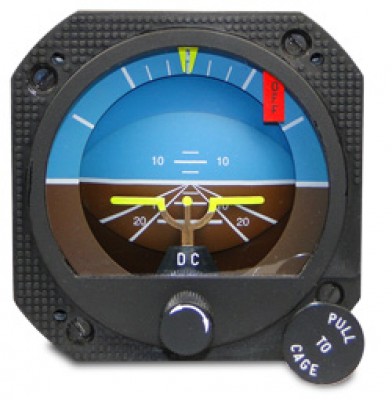

Skysports Electrical 14V Lighted Attitude Gyro With Connector And Clamp

$1696.00/Kit
Quantity
Add to Wishlist
Part# 10-05310

Overview

This Skysports attitude gyro provides a continuous visual display of the aircraft attitude with respect to the earth for maneuvering around the longitudinal (pitch), and lateral (roll) axes, and yaw.
A precision AC brushless motor is featured in the electrical attitude gyro. The Power failure drops into view whenever the power is insufficient for operation of the gyro.
Electrical gyro can be caged by pulling the "Pull to Cage" knob.


Lighted
Power Supply: 14V
Dimension: 3-3/8" x 6.46/164mm
Weight: 2.4lb/ 984g


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the skysports lighted electric attitude indicator always lit? If not, what is the connector for the light?

The instrument always stays lit. Per the manufactuerer, you can connect a swith to PIN B+14DVC. They recomend not installing a dimmer as the LEDs do not consume much power.

Q: What are the dimensions of the Skysports Electrical 14V lighted attitude Gyro?

Dimensions: 3-3/8"x 6.46/164mm

Q: Is this Skysports electrical attitude gyro FAA TSO Approved?

No, Skysports instruments are not FAA TSO approved. They are intended for use in experimental aircraft only.

Q: Can install in R44?

This unit can only be installed in experimental aircraft. If the helicopter certified it cannot be used.
