Dynon Pitot / Static / AOA Pneumatic Installation Kit

5 Reviews 2 Answered Questions
$160.00/Kit
Quantity
Add to Wishlist
Part# 12-03283
MFR Model# 102628-000

Overview

The fittings capture the tubing with stainless steel retainers. By suppressing the release ring (around the tubing entry port on the fitting), the tubing is easily removed. Within just a few minutes, you'll be able to disconnect and reconnect tubing. O-ring seals, and maintaining precise tubing diameter during the manufacturing process, ensures a reliable seal.

For Experimental Aircraft ONLY. Applicability and suitability of this kit is the responsibility of the builder.

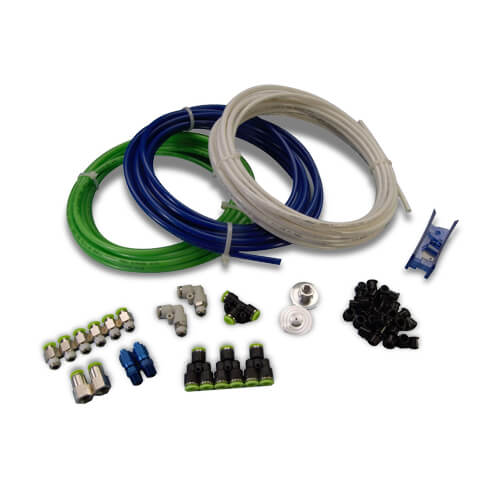

Kit Includes:
  • 2 x 102559-000, Static Port Alum 3/8″ NPT
  • 2 x 102630-000, Fitting Tube Pneumatic Strt Female 1/4″ OD PTC X 1/8″ NPT
  • 6 x 102631-000, Fitting Tube Pneumatic Strt Male 1/4″ OD PTC X 1/8″ NPT
  • 2 x 102631-001, Fitting Tube Pneumatic Elbow Male 1/4″ OD PTC X 1/8″ NPT
  • 25′ x 102632-000, Tube Pneumatic Polyethylene 0.17 ID X .25 OD BLU
  • 25′ x 102632-001, Tube Pneumatic Polyethylene 0.17 ID X .25 OD GRN
  • 35′ x 102632-002, Tube Pneumatic Polyethylene 0.17 ID X .25 OD Natural
  • 3 x 102639-000, Fitting Tube Pneumatic Y Union 1/4″ OD
  • 1 x 102639-001, Fitting Tube Pneumatic T Union 1/4″ OD
  • 1 x 102641-000, Tube Cutter
  • 30 x 102642-000, Snap Bushing
  • 2 x 102643-000, Sleeve Alum Coupling Tube 3/16″ OD
  • 2 x 102644-000, Fitting Alum Flared Tube and Pipe Thread 3/16″ OD

Click Here to Enlarge

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
