Alpha Systems AOA Indicator Elliptical Mounting Plate for Cirrus G3 / G5

$650.00/Each
Quantity
Add to Wishlist
Part# 11-09305
MFR Model# DSTR-AOA-4150K

Overview

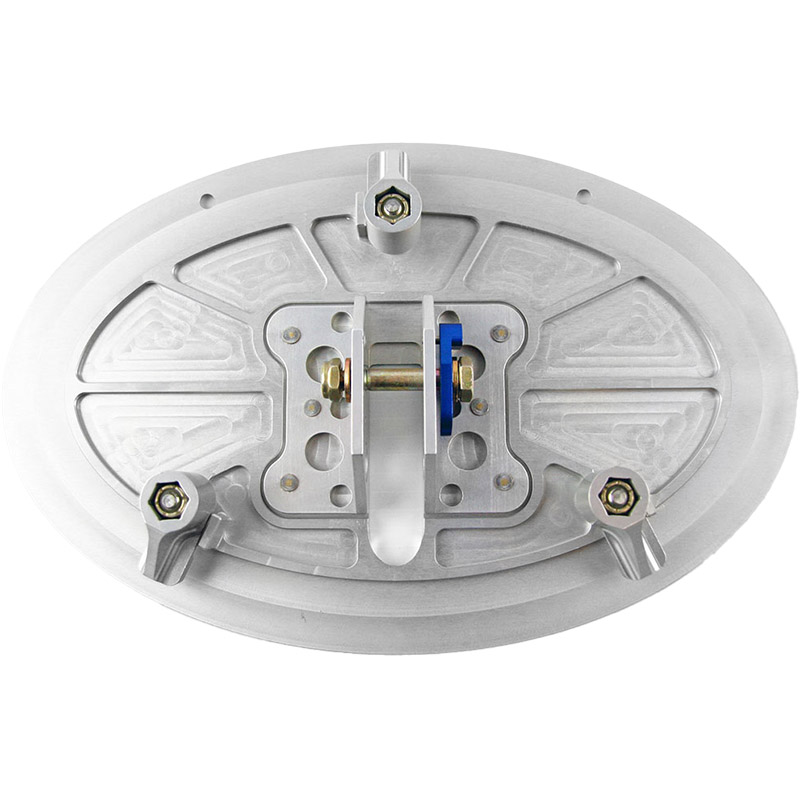

Elliptical 8" x 4-1/2" Custom AOA Probe Mounting Plate is used by installers for Cirrus G3/G5 wing.

Has 3 equally spaced swivel clamps, tightened down from outside of the aircraft, allowing the plate to be clamped in place without modification to the wing.
No doublers or nut plates needed.
Minimizes installation time.
This mounting plate utilizes the existing inspection cover location.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Complete Plate Weight: Approximately .075 LBs
  • Elliptical Mounting Plate Size: 8" x 4-1/2"

In The Box

  • 8” x 4-1/2” Elliptical Custom AOA Probe Mounting Plate with blue probe locking plate
  • Blue Pneumatic Hose 36ft
  • White Pneumatic Hose 36ft
  • Installation Instructions
