Alpha Systems Sloped Panel Spacer Kit For Flush Mount HUD

$150.00/Each
Quantity
Add to Wishlist
Part# 11-20655
MFR Model# DSTR-AOA-9095K

Overview

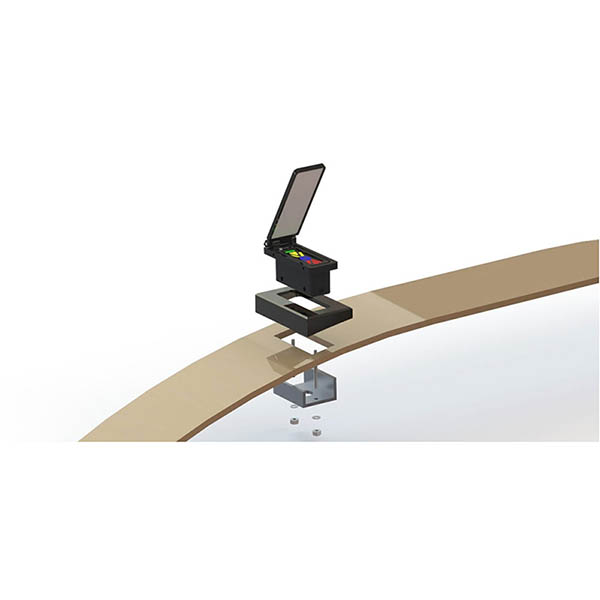

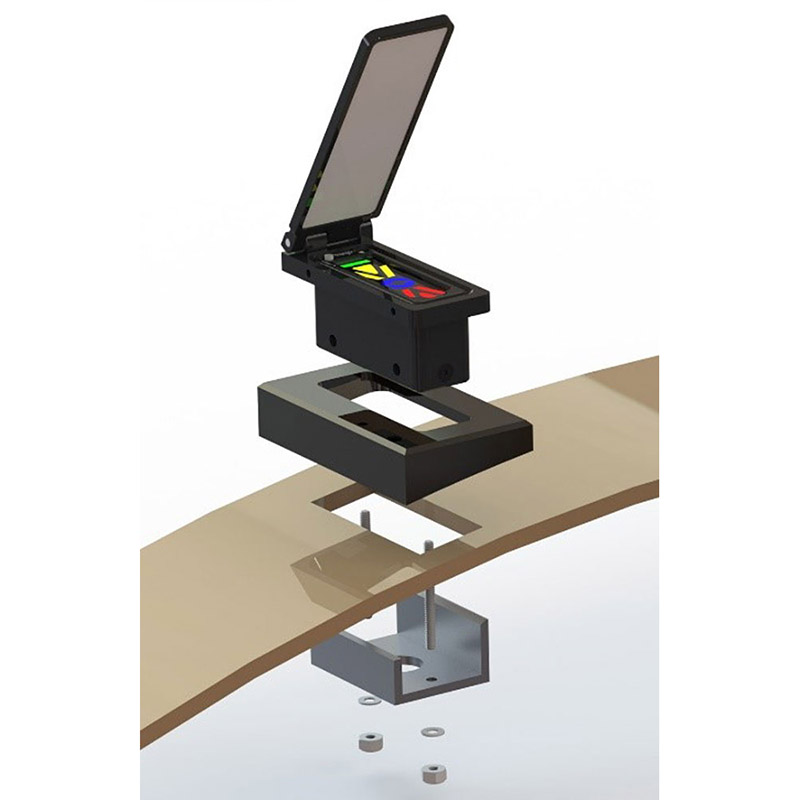

To accommodate aircraft with a sloped glare shield, Alpha Systems designed a mounting kit that replaces the standard plate and below dash angle brackets.
  • Used with the flush mount HUD for the Eagle or Falcon.
  • This universal kit can be used with pilot or co-pilot side.
  • Intended for placement directly within the pilot's peripheral vision.
  • Allows for instantaneous viewing of AOA information exactly where needed.
  • This kit helps customers who want the flush mount HUD and have very sloped glare shields.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Complete Kit Weight: 2.24 oz / 0.14 lb

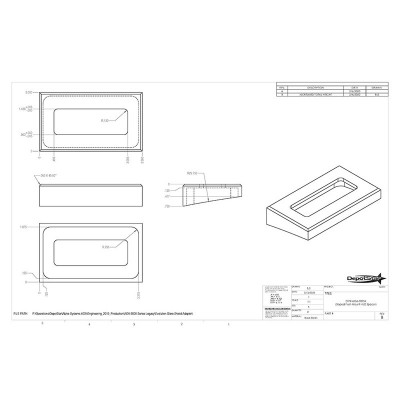

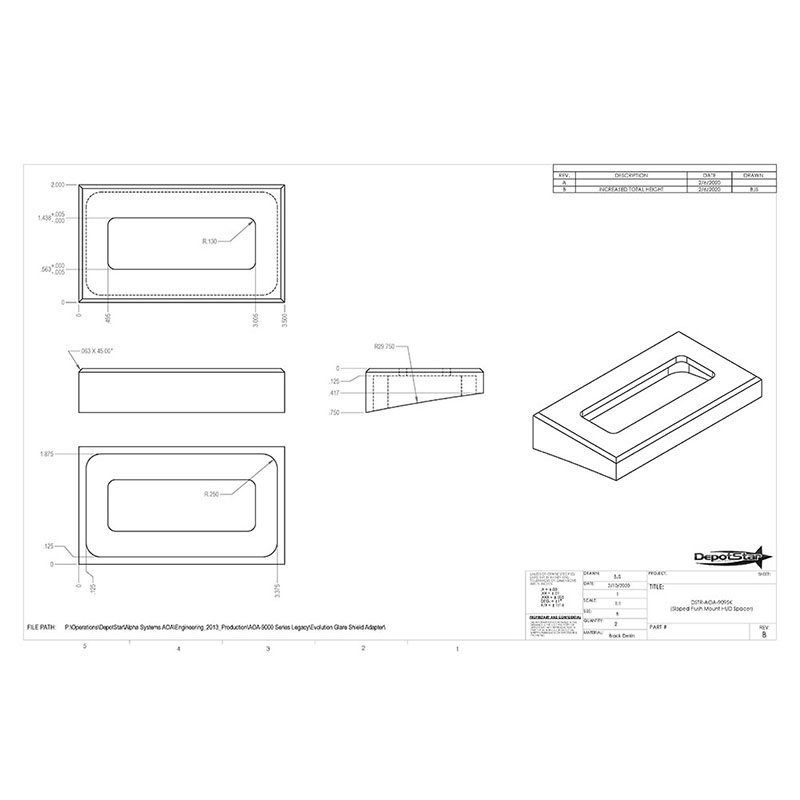

  • Spacer Dimensions: L: 3.5", W: 20", Tall H: .750", Short H: .417"

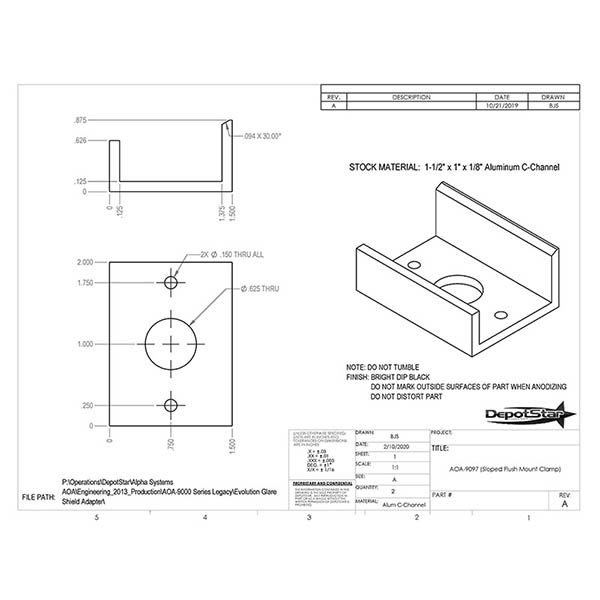

  • Clamp Dimensions: L: 2", W: 1.5", Tall H: .875", Short H: .626"

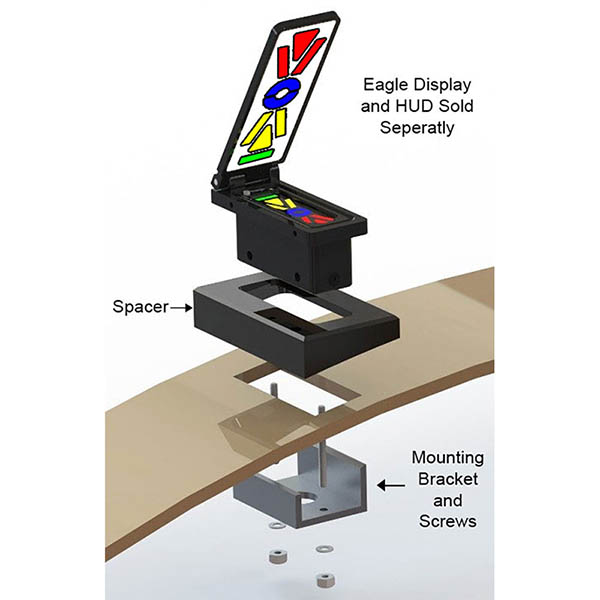

In The Box

  • Flush Mount HUD Spacer
  • Mounting Bracket
  • Hardware
