Alpha Systems AOA Flap Transmitter Kit

0 Reviews 0 Answered Questions
Select Cable Clamp:
1/8 Inch Cable Clamp1/16 Inch Cable ClampBar Cable Clamp
Quantity
Add to Wishlist

Overview

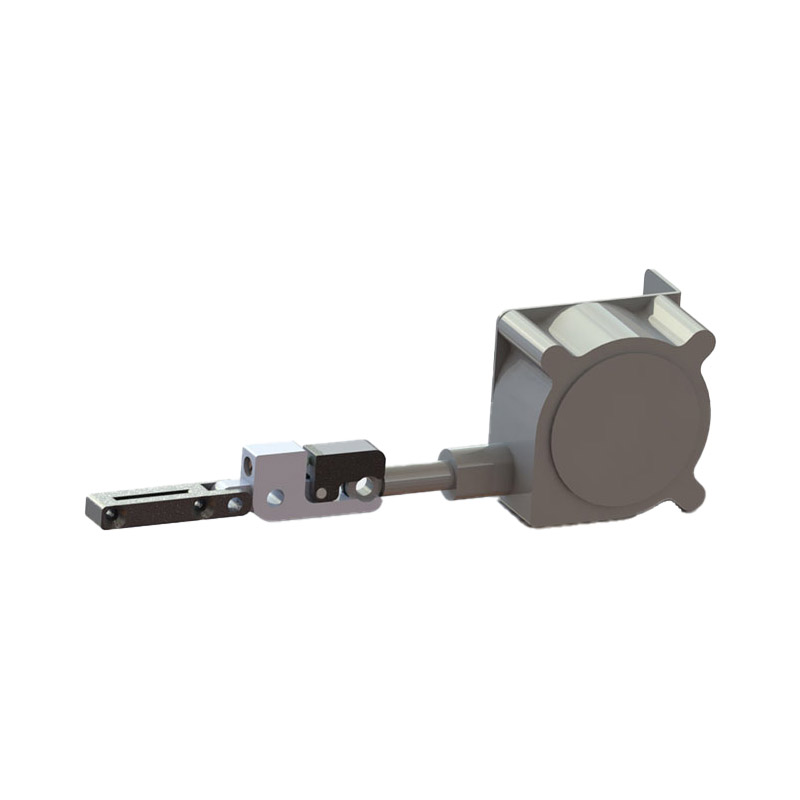

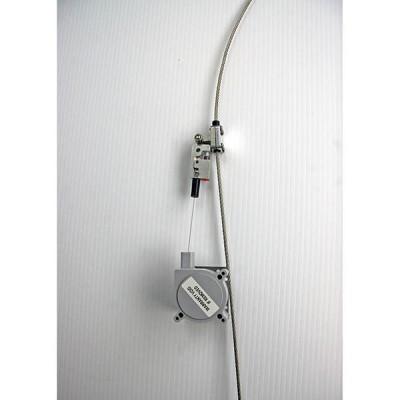

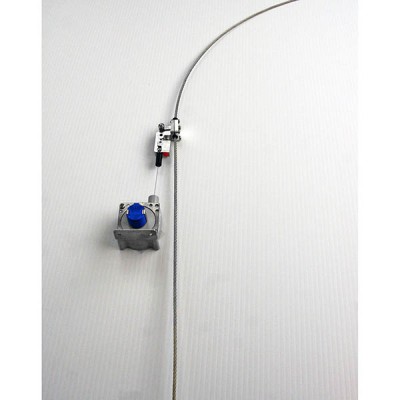

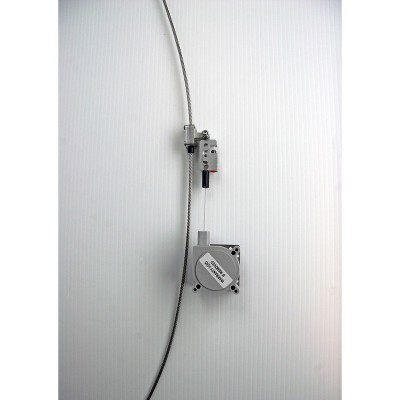

The Flap Transmitter is a spring loaded cable potentiometer. The cable clamp system is designed to clamp around a flap cable or tube. When the flaps are deployed the cable is pulled out and the voltage from the transmitter is calibrated to the charged flap positions. For use with Analog Flaps.

NOTES:
This part is required if the aircraft has no electrical feedback to tell the Alpha Systems AOA the position of the flaps such as: Switches for each flap setting or an analog voltage representing flap voltage.

Additional paperwork may be required for install in a certified aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Transmitter + Fuse Assy Weight: Approximately .2 LBs / 3.2 oz
  • 20Ft of Cable Weight: Approximately 0.4375 LBs / .7 oz
  • 1/8" Clamp Weight: Approximately 0.0375 LBs / .6 oz
  • 1/16" Clamp Weight: Approximately 0.4375 LBs / .7 oz
  • Bar Clamp Weight: Approximately 0.01875 LBs / .3 oz

Documents

In The Box

  • Transmitter
  • 2 Fuse Assemblys
  • Choice of Cable Clamps: 1/8", 1/16" or Bar
  • 20ft of 24 AWG 4 conductor cable
  • Diagrams/Instructions
