Part No. | Description | Hose I.D. | Pipe Size | Cut-off Factor | Price | Buy |
---|---|---|---|---|---|---|
10006B-104 | 3/8 | 1/4 | 1-1/2 | $4.35 | ||
10006B-106 | 3/8 | 3/8 | 1-11/16 | $5.35 | ||

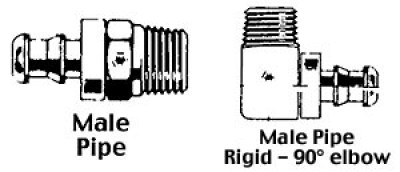

10006B-C02 | 90° Pipe | 3/8 | 1/8 | 3/8 | $8.90 | |
10006B-C04 | 3/8 | 1/4 | 3/8 | $15.70 |

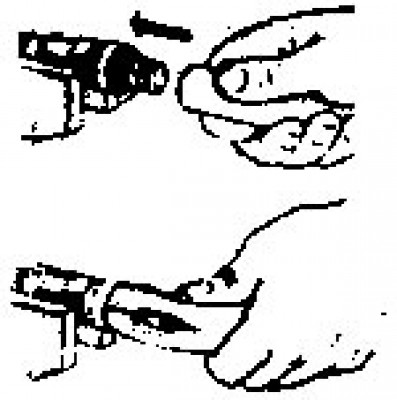

Designed for use with hoses with maximum working pressure up to 250 PSI. Easy to assemble and disassemble. < ASSEMBLY INSTRUCTIONS TO ASSEMBLE - Cut hose to correct length. To obtain correct length, subtract "Cut-Off Factor" for each end from overall length. Push hose on fitting until seated under protective cap. Lubricate hose and end for easy assembly. TO DISASSEMBLE -Slit hose from protective cap to end of Barb- Tite insert. Bend hose and remove with quick jerk |
