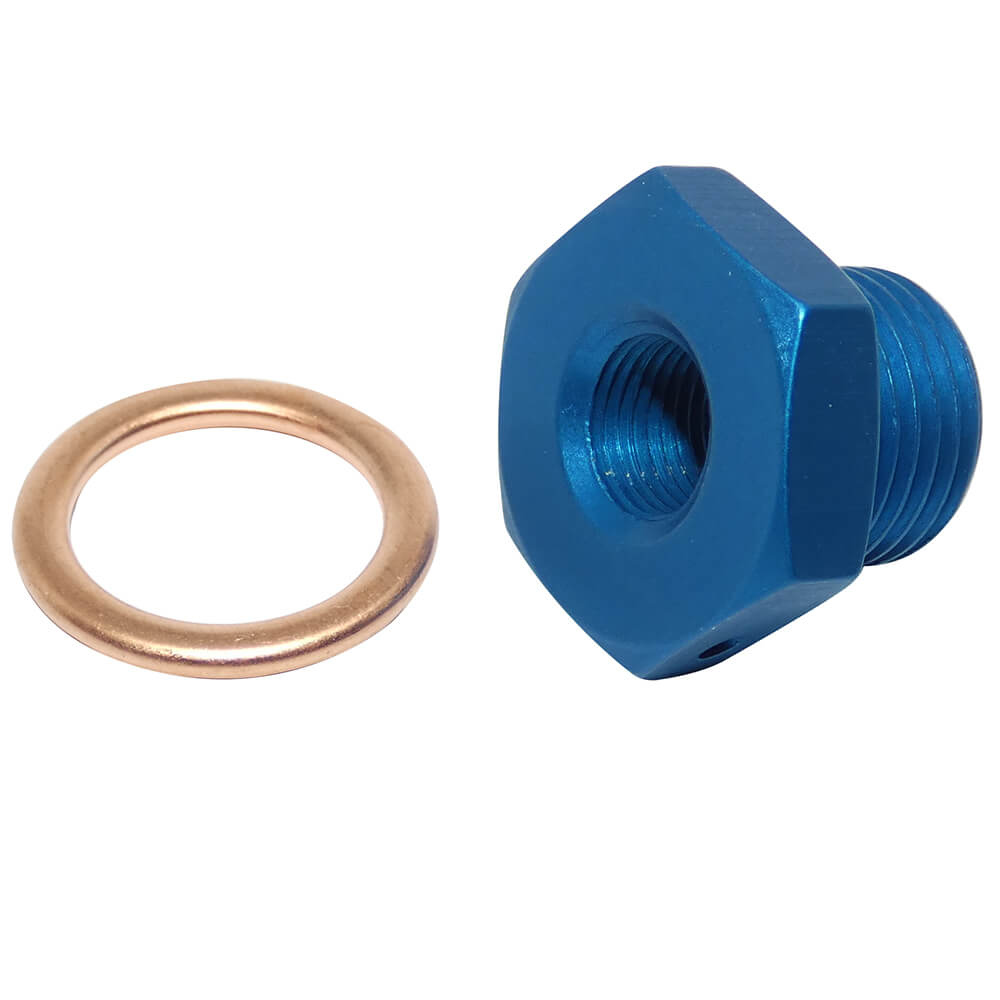

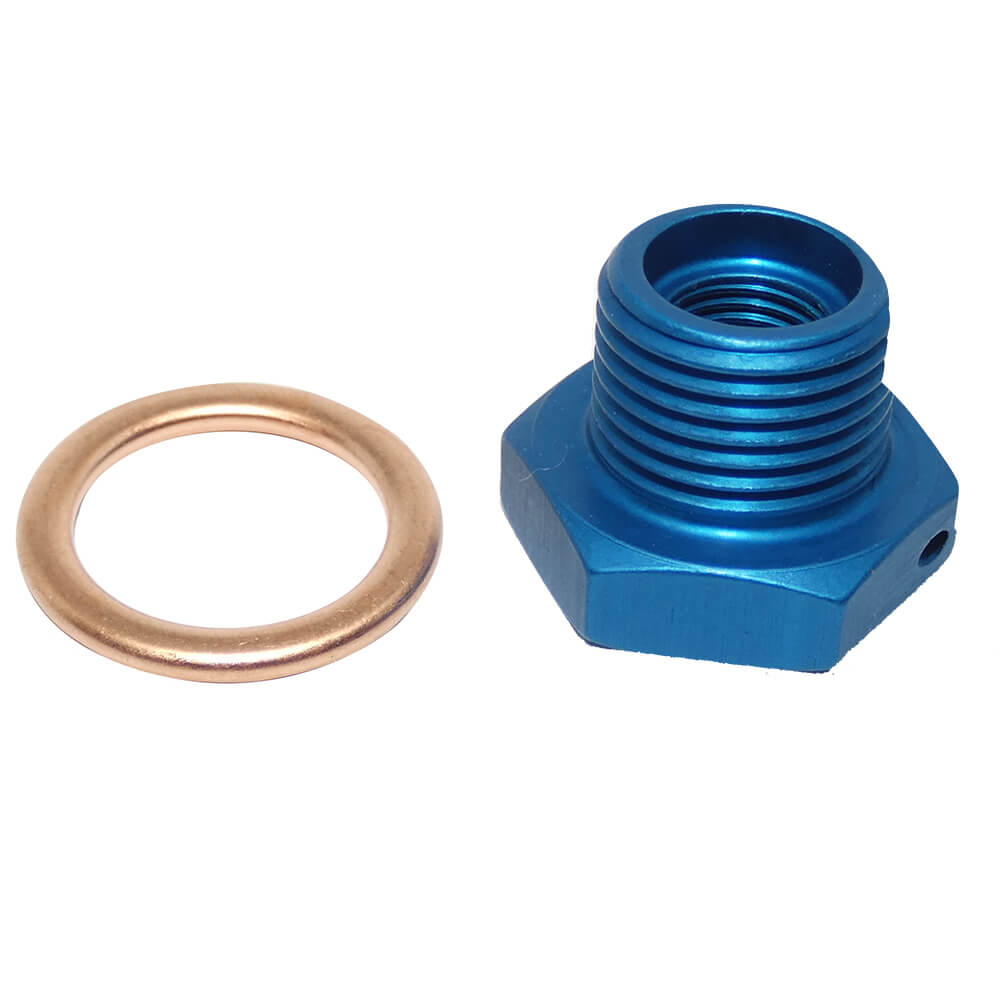

Adapter For ISS Gauge

$22.50/Each
Quantity
Add to Wishlist
Part# 07-01999
MFR Model# VA-147

Overview

Adapter for ISS gauges like
ISS 2-1/4" Oil Temp Gauge 50-250°F or
ISS Oil Temp Sender 240°
5/8” diameter for most Continental / Lycoming engines

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Perfect fit for O-320 oil filter mount and 1/8-27 oil temperature sensor.

Epix I Verified Purchase

Adapter Used For Iss Gauge

June 18, 2024

Stephen H Verified Purchase

Adapter Used For Iss Gauge

May 3, 2024

This product was perfect fit for my 540 oil filter housing for 1/8 inch oil temp sender

Charles D Verified Purchase

Adapter Used For Iss Gauge

June 20, 2021

Adapted ISS temperature sensor to my Lycoming O-320 perfectly.

Rob B
June 22, 2020

A must have for the Titan 340 engine if your oil temp sensor is 1/8 in NPT.

Darrell M
March 8, 2020

Well made and the gasket is included. Would have preferred that it be made of brass but Im confident that will work well.

Chris D Verified Purchase

Adapter Used For Iss Gauge

January 19, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the threads 1/8-27 NPT and 5/8-18 NF on part# 07-01999? Thanks

Yes, male 5/8-18 thread to 1/8" NPT female thread to allow the use of smaller 1/8" NPT probes.

Q: What is the ohm range of this adapter?

This adapter does not have an ohm range.

Q: 07-01999 is the washer included?

Yes, part # 07-01999 includes a washer.

Q: Does this fit a Continental 0200A?

We do not have an engine application guide for this adapter. It should work but we cannot say for sure.
