Tension Bolts NAS6303

From $1.30 to $18.95
Material Grip Length Part Number Price Buy

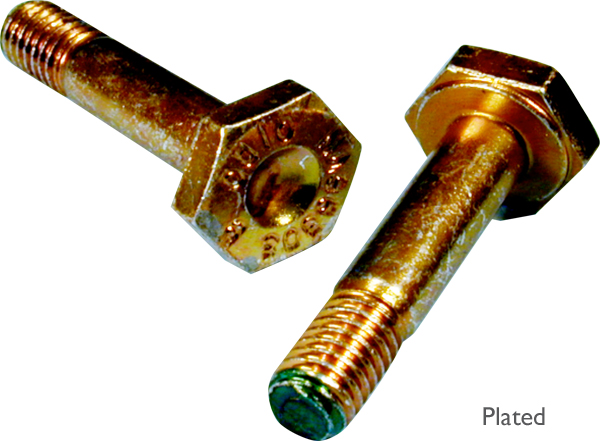

Plated0.06250.3855
NAS6303-1
$1.40
Quantity
Plated0.12500.4480
NAS6303-2
$1.44
Quantity
Plated0.18750.5105
NAS6303-3
$2.90
Quantity
Plated0.25000.5730
NAS6303-4
$2.00
Quantity
Plated0.31250.6355
NAS6303-5
$3.80
Quantity
Plated0.37500.6980
NAS6303-6
$1.52
Quantity
Plated0.50000.8230
NAS6303-8
$2.80
Quantity

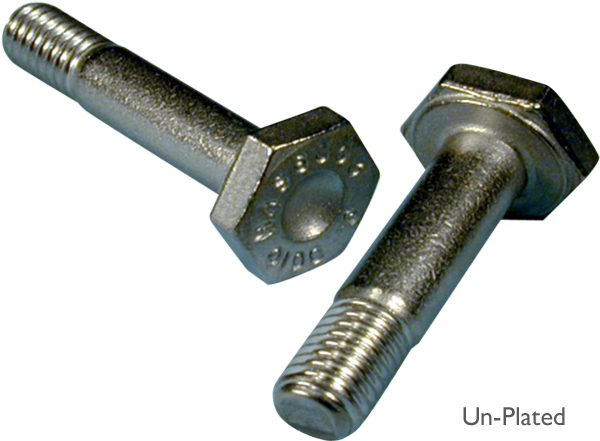

Un-Plated0.06250.3855
NAS6303U1
$1.40
Quantity
Un-Plated0.12500.4480
NAS6303U2
$1.44
Quantity
Un-Plated0.18750.5105
NAS6303U3
$1.48
Quantity
Un-Plated0.25000.5730
NAS6303U4
$4.85
Quantity
Un-Plated0.31250.6355
NAS6303U5
$3.35
Quantity
Un-Plated0.37500.6980
NAS6303U6
$1.52
Quantity
Un-Plated0.43750.7605
NAS6303U7
$4.65
Quantity
Un-Plated0.50000.8230
NAS6303U8
$1.60
Quantity
Un-Plated0.56250.8855
NAS6303U9
$1.30
Quantity
Un-Plated0.62500.9480
NAS6303U10
$18.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Hex Head, Short Thread NAS6303

Material - Cres (A286) Per AMS5731, AMS5732, AMS5737 or AMS5853
Finish - Cadmium Per AMS-QQ-P-416 Type II, Class 2 or Passivate Per Ams2700 (U Code)
Heat Treat - 160-190 KSI Per AMS2759

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • A = .376
  • D = .1895
  • H = .110
  • Thread: 10-32 UNJF-3a
  • Tensile: 3620 Lbs. Min
  • Shear: 5380 Lbs. Min
