| Model No. | A | B | L | Grommets & Snap Rings |
Springs | Cat # |
Price | Buy |
|---|---|---|---|---|---|---|---|---|

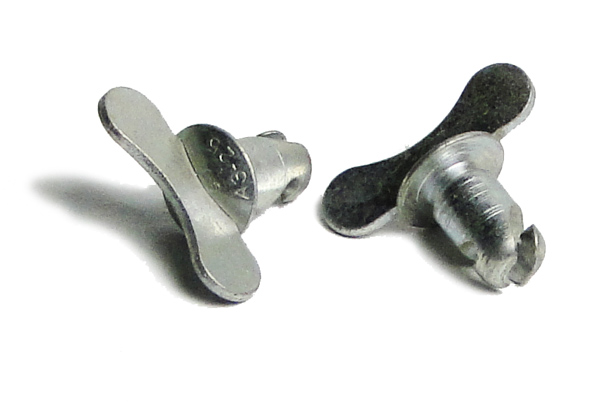

| -- | -- | -- | -- | -- | -- | AW3-30 | $11.50 | |
| 121J-W330-Z3C | .1875 | .100 | .300 | GA3-175, 200, 250 GP3B, GH3 SR3SS SX-520SS | S3-150, 175 200, 225 | AJW3-30 | $5.35 | |
| 121J-W335-Z3C | .1875 | .150 | .350 | GA3-175, 200, 250 GP3B, GH3 SR3SS SX-520SS | S3-150, 175 200, 225 | AJW3-35* | $5.45 | |
| 121J-W340-Z3C | .1875 | .200 | .400 | GA3-175, 200, 250 GP3B, GH3 SR3SS SX-520SS | S3-150, 175 200, 225 | AJW3-40 | $2.51 | |
| 121J-W425-Z3C | .250 | .100 | .250 | GA4-225, 250, 275, 300 GP4B, GH4 SR4SS SX-523SS | S4-200, 225 | AJW4-25* | $2.48 | |
| 121J-W430-Z3C | .250 | .100 | .300 | GA4-225, 250, 275, 300 GP4B, GH4 SR5SS SX-523SS | S4-200, 225 | AJW4-30 | $3.55 | |
| 121J-W435-Z3C | .250 | .150 | .350 | GA4-225, 250, 275, 300 GP4B, GH4 SR4SS SX523SS | S4-200, 225 | AJW4-35* | $4.35 | |
| 121J-W440-Z3C | .250 | .200 | .400 | GA4-225, 250, 275, 300 GP4B, GH4 SR4SS SX-523SS | S4-200, 225 | AJW4-40 | $2.60 | |
| 121J-W530-Z3C | .3125 | .125 | .300 | GA5-312, 350, 375 SR5SS SX-510SS | S5A200, 225 | AJW5-30 | $5.35 | |
| 121J-W540-Z3C | .3125 | .190 | .400 | GA5-312, 350, 375 SR5SS SX-510SS | S5A200, 225 | AJW5-40 | $2.95 | |
| 121J-W545-Z3C | .3125 | .200 | .450 | GA5-312, 250, 275 SR5SS SX-510SS | S5A200, 225 | AJW5-45* | $3.95 | |
| 121J-W550-Z3C | .3125 | .250 | .500 | GA5-312, 350, 375 SR5SS SX-510SS | S5A200, 225 | AJW5-50 | $3.35 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

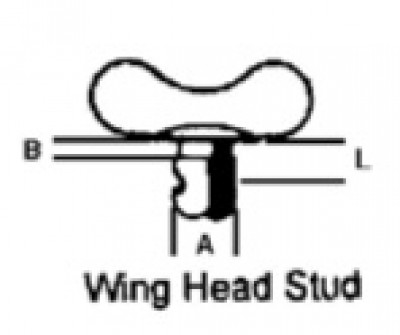

(A, B, L dimensions for AJW are same as for AJ; P, Q, R dimensions given are for wing head) CAD PLATED FASTENERS ARE NO LONGER AVAILABLE DUE TO ENVIROMENTAL REASONS. *No longer available after our current stock is depleted. Please order next longer size. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Good product and works well.
Verified Purchase
Dzus Fastener AjW5-40 Wng Type
This was the wing nut I wanted and it works!
Verified Purchase
AjW5-45 Cadmium Wing Head Stud
Verified Purchase
AjW3-40 Cadmium Wing Head Stud
Verified Purchase
AjW3-30 Cadmium Wing Head Stud
My product when received was exactly what I needed to finish a restoration project. My only glitch was not being able to locate the retaining washer for the ordered part Also I didn’t note a phone number to call customer service. Again thank you for providing me the part as I’ve spent a few hours locating what I needed to complete the project.
Verified Purchase
AjW5-50 Cadmium Wing Head Stud
good Product
Verified Purchase
AjW5-50 Cadmium Wing Head Stud
Very small order treated as a significantly large order. Fast, considerate service
Verified Purchase
AjW4-25 Cadmium Wing Head Stud
Verified Purchase
AjW5-30 Wing Head Stud
we received the order on time, no issues with part or paper work.
I am happy that studs were available. Super fast shipping, Excellent dimensional guide on the web. I had to contact Customer Support to correct my mistake and got immediate response to my request. Thank you for outstanding service!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The prices listed here are for the wing head stud only. Our part number for the wing head stud is AJW4-40. The current price of $3.55 is for one wing head stud. (May 7, 2013)
We offer the installation "C" clamp, p/n 12-02272, to use with specific size grommet dies, to install Dzus studs, but we do not have any removal tools.
