Home / Engine Parts / Gaskets / Tempest /Tempest Gasket Kit ST07
Main Image

Tempest Gasket Kit ST07

13 Reviews 3 Answered Questions
$32.50/Each
Quantity
Add to Wishlist
Part# 08-17584
MFR Model# ST-07

Overview

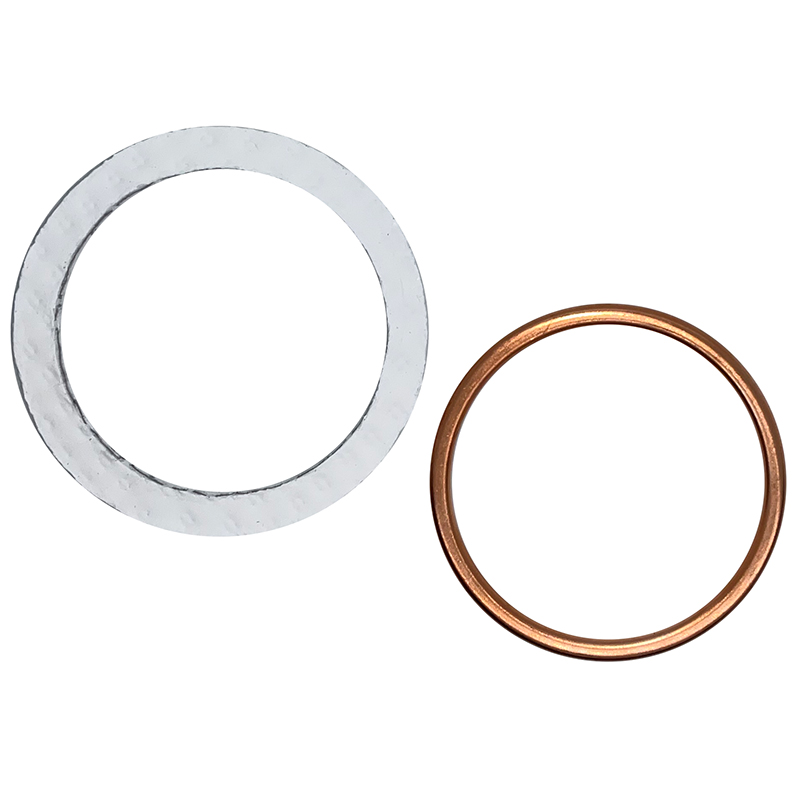

Tempest Gasket Kit ST-07

Stratus Tool Technologies ST07 is a multi-layer gasket designed to combine the enhanced anti-leak characteristics of the FM07 fiber gasket with the resiliency and resistance to sudden rupture of the AN900-28 copper crush washer. The outer facings of this new gasket are comprised of an expanded PTFE matrix that provides better conformance to sealing surface imperfections. The perforated stainless steel core is embedded within the ePTFE to enhance stability and increase blowout resistance. Laboratory and flight testing have confirmed that this new gasket eliminates the nuisance oil leaks some operators have experienced when replacing FM07 fiber gaskets with AN900-28 copper crush washers in compliance with AD 2022-04-04 and Stratus Tool Technologies SB-001 Rev. B.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 16oz
  • Dimensions: 6x9x1 in
    • Frequently Purchased With
    • Customers Also Viewed

    Reviews

    Submit a Review

    Includes the bottom gasket against the engine case and the copper crush gasket between the top and sleeve of the adapter. I always buy two sets because the adapter moves so much and it’s handy to have a few sets on hand during oil filter changes in case the adapter moves.

    Mathew H Verified Purchase

    Tempest Gasket ST-07
    October 25, 2024

    Highly recommend this upgraded gasket. The original gasket was not reinforced like this one and it failed. Lost oil pressure and had to do a single engine landing. This seal is far superior.

    Datchair L Verified Purchase

    Tempest Gasket ST-07
    July 16, 2024

    Big improvement over original parts. Dont forget to order oil sender gasket.

    Slv T Verified Purchase

    Tempest Gasket ST-07
    May 31, 2024

    These work good

    Van N Verified Purchase

    Tempest Gasket ST-07
    May 29, 2024

    Stopped the pesky leak that was present when using the copper crush gasket.

    Sam C
    May 15, 2024

    I purchased my oil filter conversion kit several years before the first gasket became available. It was plagued with small leaks, I believe because the copper crush gaskets would further crush when the oil filter was torqued. I was very pleased when the filter kit guys gave me one of the first gaskets at Oshkosh when I complained of the problem. It completely eliminated any leakage on my installation. When I first saw the SB to replace the gasket with the copper crush ring, I hesitated as long as I could and was very happy to find they had developed a new gasket resistant to cracking and approved for the SB.

    Don R
    May 13, 2024

    Little pricey haven’t tried it yet hopefully it stops the constant leaks

    Bruce C Verified Purchase

    Tempest Gasket ST-07
    January 23, 2024

    I had my F&M oil filter adaptor properly installed with the permissible two AN900s. I found that it is almost impossible to remove the old oil filter without moving the adaptor requiring that it be completely reinstalled. I am hoping that the additional friction of this gasket will allow me to remove the filter without moving the adaptor next time.

    Thomas M Verified Purchase

    Tempest Gasket ST-07
    December 29, 2023

    Super service by Alaska branch of Aircraft Spruce. ST-07 gasket kit fulfills AD requirement.

    Joseph J Verified Purchase

    Tempest Gasket ST-07
    October 10, 2023

    Required for AD 2022-4-4 for replacing the oil filter adapter lower fiber gasket. Download the process for the installation of the gasket from the Tempest website because it involves a precise way of doing it without damaging the fiber gasket. ST-07 also comes with the upper copper crush washer.

    Manuel F Verified Purchase

    Tempest Gasket ST-07
    September 16, 2023

    Q&A

    Submit

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Is the use of the ST07 gasket approved as an alternative method of compliance for AD 2022-04-04?

    Yes, this is approved and it will comply with AD 2022-04-04.

    Q: Does the kit include the AN900-28 copper crush washers with the ST07 Gasket ?

    Yes, this kit contains a fiber washer and an AN900-28 crush gasket.

    Q: Is the ST07 gasket available for purchase by itself? I already have a good stock of the crush washers.

    Yes, please see part number 08-17584.
