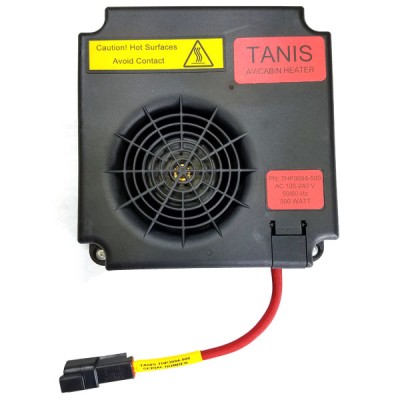

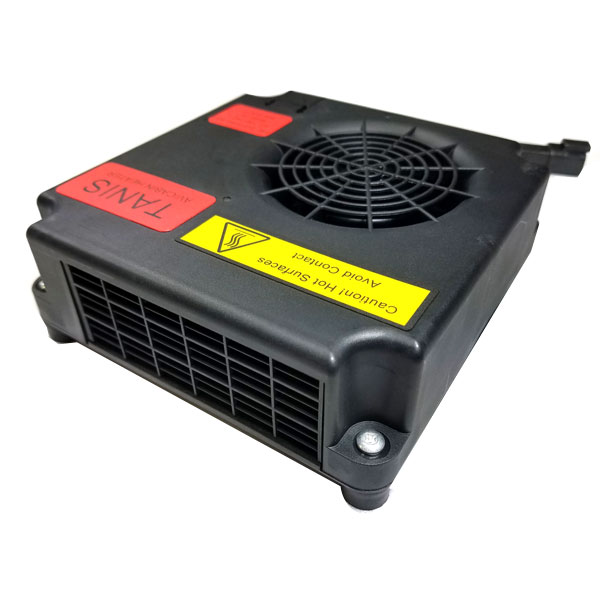

Tanis Avionics / Cabin Heater With Pin Connector - AC 100-240V
$450.00/Each
Part# 05-14755
MFR Model# TAHP3094-500
MFR Model# TAHP3094-500
FREE Shipping
Overview
|
Tanis Avionics/Cabin Heater with pin connector - AC 100-240V.
Includes Isolation feet and 6 foot long cable for easy use on floor of aircraft. (TPS3129) Note: Extension cord to get to your aircraft or inlet/outlets not included. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Output: 500 watts ± 10%
- Required power: AC 100-240 Volt – 50/60 Hz

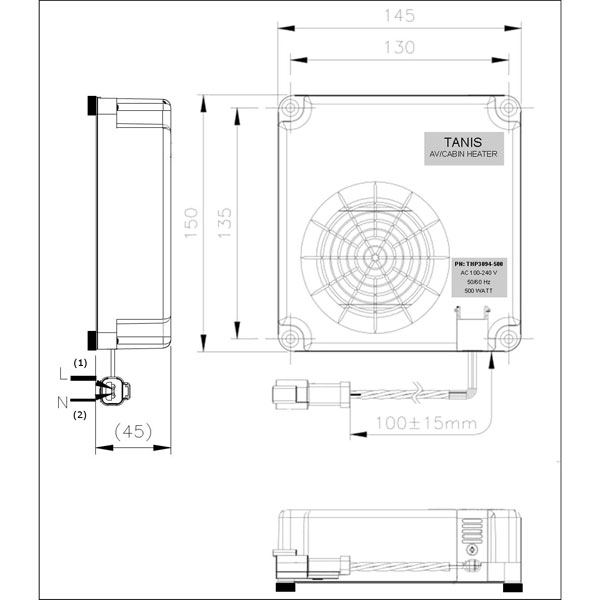

- Dimensions: 5.9 x 5.7 x 1.8 inches (150 x 145 x 45 mm) Approximate
- Weight: 1.50 lbs (0.68 Kg) Approximate (Install hardware not included)
- Heater Lead length: 6 inches (150 mm) Approximate
- Ratings:
- UL: 20150703-E239394
- TUV RHEINLAND: R 50314338
- CE: R 50314338 P.1-4_CE
- * PMA subcomponent of Tanis STC systems.
- Conversion NotesMay require TCS2598 connector kit and/or Standard plug TP02770 or other plug for installation. Wire and firewall pass-through may also be required.Old Part NumberCBN HTR Ceramic,Voltage115, 230USA-Cert (8130-3 available)PMA-Subcomponent (YES)
