Exhaust System For Continental 0-200

From $321.00 to $1882.00
Description Part Number Price Buy
Hb Exhaust System # 33401
33401
$1882.00
Quantity
#33402 Tailpipe Extensions Only For Exh. Sys.
33402
$321.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

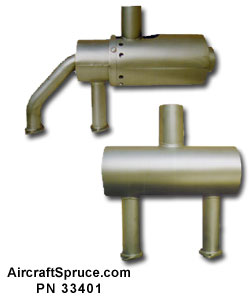

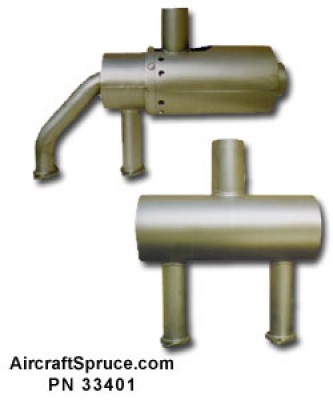

PN 33401
This universal stainless steel exhaust system is designed for experimental aircraft using Continental A65 thru O-200 engines. Consists of 2 manifolds, left hand manifold has heat shroud with 2-1/2” connection for carb heat. Muffler outlet are 3” long. Tailpipe extensions may be required, sold separately

PN 33402
8” Tailpipe Extensions. Furnished with slip joint and pin clamp.

THIS SYSTEM IS PATTERNED AFTER A CESSNA 150 SYSTEM, BUT WILL NOT FIT A CESSNA 150 OR 152.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Drawings



Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does only 1 side have a shroud that can be used for heat or do both?

It only comes with carb heat on one side. They could add cabin heat to the other side if desired.
