Avstar Experimental Fuel Injection Kit - New Outright

From $3388.00 to $3388.00
Description Part Number Price Buy
Avstar AvX320-1 Experimental Fuel Injection Kit New Outright
07-21007
$3388.00
Quantity
Avstar AvX360-1 Experimental Fuel Injection Kit New Outright
07-21008
$3388.00
Quantity
Avstar AvX360-2 Experimental Fuel Injection Kit New Outright
07-21009
$3388.00
Quantity
Avstar AvX390-1 Experimental Fuel Injection Kit New Outright
07-21010
$3388.00
Quantity
Avstar AvX540-1 Experimental Fuel Injection Kit New Outright
07-21011
$3388.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Avstar Experimental Fuel Injection Kit for the New Outright series: AVX320-1, AVX360-1, AVX360-2, AVX390, or AVX540-1.

Avstar Experimental Servo Kit: AVX320-1
Engine Application: Lycoming IO-320/0-320 Engines with 150/160 Horsepower

Avstar Experimental Servo Kit: AVX360-1
Engine Application: Lycoming IO-360/0-360 Engines with 160/180 Horsepower

Avstar Experimental Servo Kit: AVX360-2
Engine Application: Lycoming IO-360/0-360 Angle Valve Engines with 200 Horsepower

Avstar Experimental Servo Kit: AVX390-1
Engine Application: Lycoming IO-360/0-360 Angle Valve Engines with 200 Horsepower

Avstar Experimental Servo Kit: AVX540-1
Engine Application: Lycoming IO-540/0-540 Parallel Valve Engines with 235-260 Horsepower

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

Stronger & Lighter Main Body Material:
  • AL 6061-T6 Billet Machined Throttle Body to Bowl
  • 30% increase in yield strength over legacy cast material
  • Eliminates plug thread deterioration causing leaks
  • Legacy castings are prone to cracks and porosity
  • AVStar's Fuel Systems average a 15% reduction in weight by design resulting in lower operating costs


  • Corrosion Resistance:
  • Fully anodized billets have much higher corrosion resistance than legacy castings
  • More stainless components in each fuel system


  • Consistent Air Fuel Ratio Performance:
  • Billet machined venturi's for improved and consistent air flows
  • Optimized air fuel metering using advanced fluid dynamic analysis validated by the world's largest piston engine manufacturer, Lycoming Engines
  • Specifications

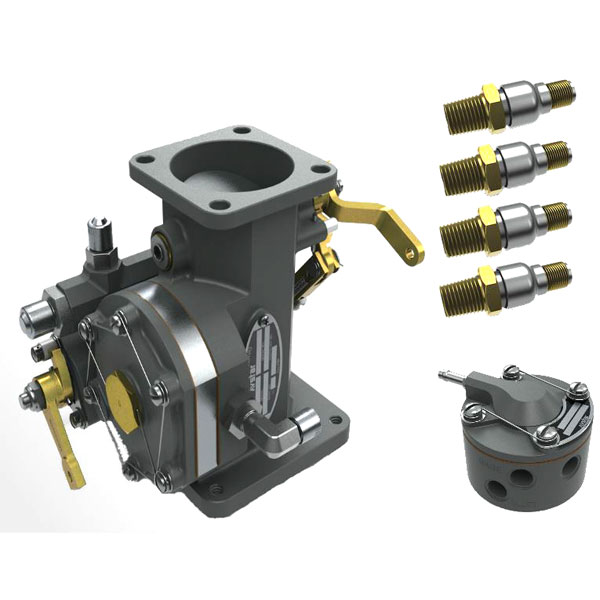

    Avstar Experimental Servo Kit AVX320-1 Includes:

    Description Qty.
    Fuel Injector Servo Assembly 1
    Flow Divider Assembly 1
    Nozzles 4


    Avstar Experimental Servo Kit AVX360-1 Includes:

    Description Qty.
    Fuel Injector Servo Assembly 1
    Flow Divider Assembly 1
    Nozzles 4


    Avstar Experimental Servo Kit AVX360-2 Includes:

    Description Qty.
    Fuel Injector Servo Assembly 1
    Flow Divider Assembly 1
    Nozzles 4


    Avstar Experimental Servo Kit AVX390-1 Includes:

    Description Qty.
    Fuel Injector Servo Assembly
    (Different Lever Configuration compared to AVX360-2)
    1
    Flow Divider Assembly 1
    Nozzles 4

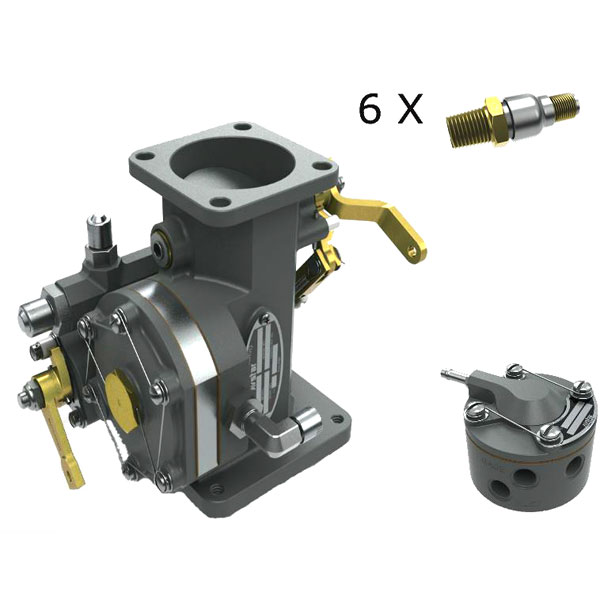

    Avstar Experimental Servo Kit AVX540-1 Includes:

    Description Qty.
    Fuel Injector Servo Assembly 1
    Flow Divider Assembly 1
    Nozzles 6
