Rotax 912 Ul And 914 Ul Double Ignition Coil Assembly | Smd- Electronic Module

1 Review 0 Answered Questions
From $0.27 to $904.39

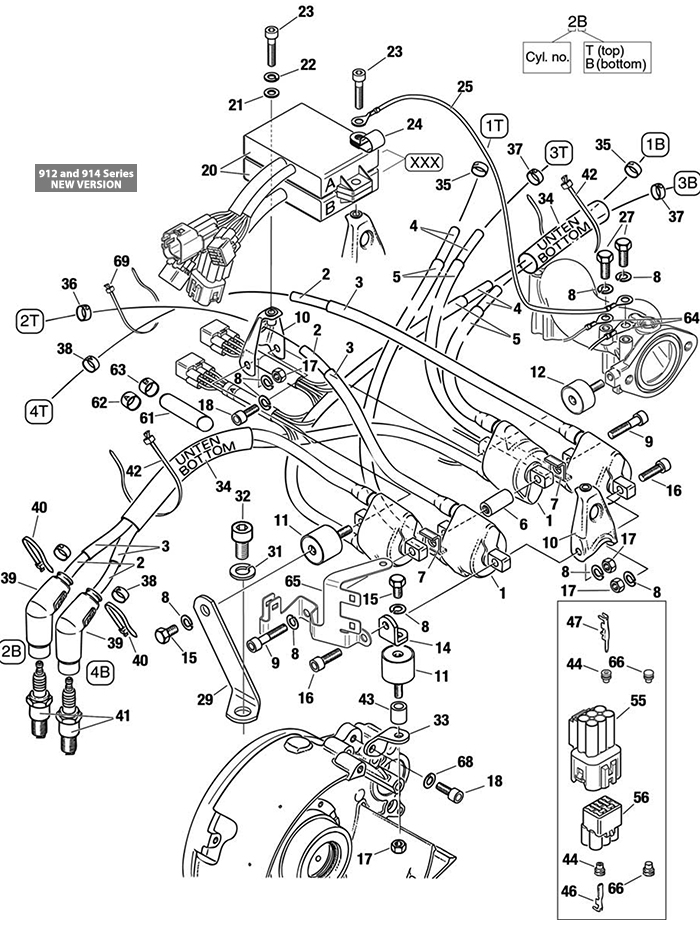

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req. 912 UL Qty Req. 912 ULS Qty Req. 914 UL PN Price Buy
9840-883ALLEN SCREW M6X30222
15-01148
$0.90
Quantity
14851-260IGNITION COIL BRACKET 1111
15-01528
$7.37
Quantity
15240-772HEX. SCREW M6x10222
15-09740
$1.57
Quantity
16241-935ALLEN SCREW M6x20222
15-09771
$1.23
Quantity
18241-237ALLEN SCREW M6X16333
15-00169
$0.42
Quantity
21827-800WASHER A 5.5111
15-00860
$0.27
Quantity
22945-830LOCK WASHER A5111
07-00435
$1.86
Quantity
24851-118CABLE CLAMP 11.3/M5111
15-01514
$4.30
Quantity
25965-788MASS CABLE ASSEMBLY111
15-03906
$8.75
Quantity
26965-781MASS CABLE ASSEMBLY22
15-03902
$32.75
Quantity
27241-186HEX.SCREW M6X16121
15-00164
$0.31
Quantity
36860-742MARKING SLEEVE 2222
15-01733
$0.67
Quantity
40866-710CLAMP 142X2.5 MM888
15-01869
$0.79
Quantity
42251-920CLAMP 279X3.6 MM222
15-00268
$1.25
Quantity
49964-072INSULATION SHEATHARAR
15-03812
$1.42
Quantity
50964-067FASTON CONNECTOR 3.96ARAR
15-03811
$1.42
Quantity
51964-077INSULATION SHEATHARAR
15-03814
$1.54
Quantity
55265-269CONNECTOR HOUSING 6-POLEARARAR
15-00381
$11.20
Quantity
58265-207CONNECTOR HOUSING 1-POLEARARAR
15-00372
$6.59
Quantity
62960-010SHRINKABLE HOSE IMPRINTED A111
15-03619
$5.84
Quantity
63960-015SHRINKABLE HOSE IMPRINTED B111
15-03620
$5.84
Quantity
64965-784MASS CABLE ASSEMBLY2m2m2m
15-03904
$14.89
Quantity
66260-135DUMMY PLUG1m1m1m
15-00290
$1.14
Quantity
-965-440SMD-ELECTRONIC IGN MODULE---
15-08701
$904.39
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a    In a roll, Ignition cable 620 mm;
  • b    In a roll, Protection hose 560 mm
  • c    In a roll, Protection hose 500 mm
  • d    In a roll, Protection hose 450 mm
  • e    Not necessary at intake manifold part no. 867688;
  • f     Marked with S/N; Introduced as per S/N as follows: 04.0388 with altered insulation only for spare parts
  • g    for crankcase part no. 886354, part no. 886358 and older;
  • h    At crankcase part no. 888364 or newer crankcase;
  • i     Not suitable for intake manifold part no. 867688;
  • j     Necessary at version with ring mount;
  • k    In a roll
  • l     Use part no. 842742 and 953390 only together;
  • m   SI-912-013 / SI-914-016 current issue See Maintenance Manual Heavy of the respective engine type,
          current issue.
  • n    In a roll, silicone hose 120 mm
  • o    SI-912-020 / SI-914-022 current issue
  • p   1x lock washer A6 part no. 945751 is not needed after production-year 2010 on position between the
          bracket 2 part no. 851267 and the hex. nut M6.
  • q    Without magneto wheel consisting of 20, 21, 22, 23, 44, 46
  • r    Required for the following cylinders: 413235 / 413236 / 413245 / 413246 / 413185 / 413195.
         Danger of abrasion!
  • s   Short lines connected with 965-359 and 965-446. Length = 85 mm (instead of 70 mm).


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Notes

No.
Status
Part No.
 Description
912 UL
914 UL
Price
4
865-710
 IGNITION CABLE 7 MM
AR c
AR c
5
860-990
 PROTECTION HOSE 8x1
AR d
AR d
$20.15
12
865-710
 IGNITION CABLE 7 MM
1i
1i
20
966-729
 SMD-ELECTRONIC MODULE
2o
2o
*
41
297-940
SPARK PLUG 12MM/Torque 180 in.lb.8
*
41
881-330
SPARK PLUG 12MM/Torque 180 in.lb.8
8
*
59
-
SHRINK TUBE 20 MM
-
60
-
SHRINK TUBE 20 MM
1k
-
61
n.a.
-
PROTECTION HOSE 60 MM
2
2
-
64
965-782
MASS CABLE ASSEMBLY
2
2
NLA
68
s.v.
945-751
 LOCK WASHER A6
1
1
-
N
 964-090 EASY START UNLOCK CABLE ASSY.
1
-
