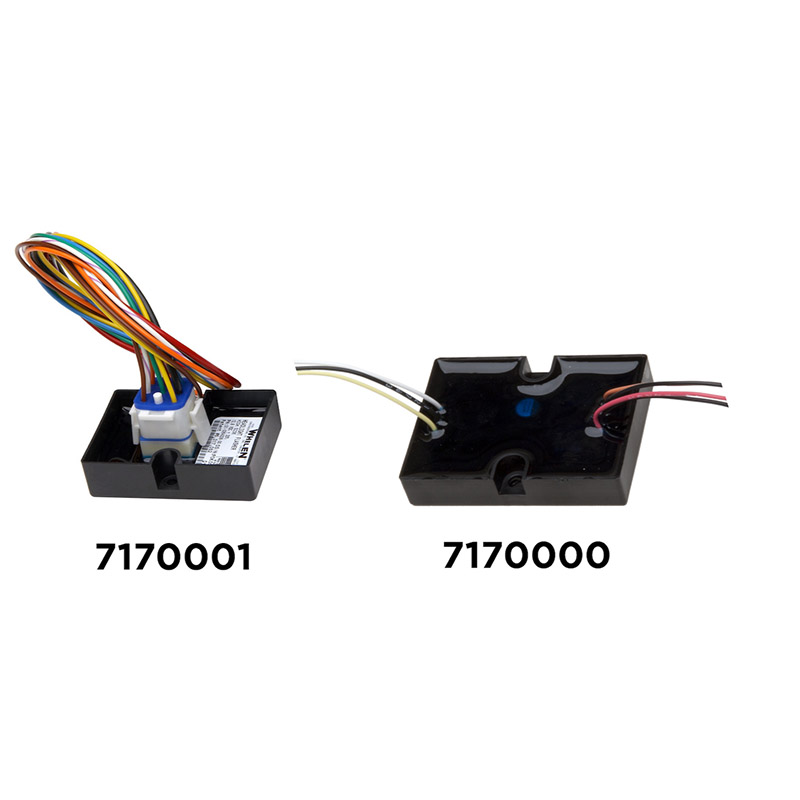

Whelen LED Flasher Assembly Box 7170000

$148.75/Each
Quantity
Add to Wishlist
Part# 11-12474
MFR Model# 01-0771700-00

Overview

Model 71700 is an electronic light flasher for use with Whelen LED Exterior lighting products. The flasher operates two outputs steady on or will flash outputs alternately. This has the operating ability to handle up to 5 amps of power.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Drawing 71700
  • Weight 0.14 lbs
  • Dimensions H x W x L 0.54” (14mm) x 2.04” (52mm) x 2.74” (70mm)
  • Operating Voltages 14 or 28 VDC nominal
  • Combined Alternating Flash Rate 90 FPM (+ / - 10 FPM)

Documents

Reviews

Works perfectly, no RF noise at all. 5 day shipping to Australia from ACS East was faster than I had hoped.

Des H
May 5, 2018

This flasher was easy to install, works just as described. We used this to Wig-Wag 2 par 46 landing lights. I will surely equip future aircraft with this unit.

Andy T
April 23, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this approved Whelen 7170000 flasher assembly box for certified aircraft?

No, this unit is for experimental aircraft use only.

Q: Is there a drawing for the Whelen LED 717000 box available?

Yes we have added the product drawing in the Documents section of the web page.
