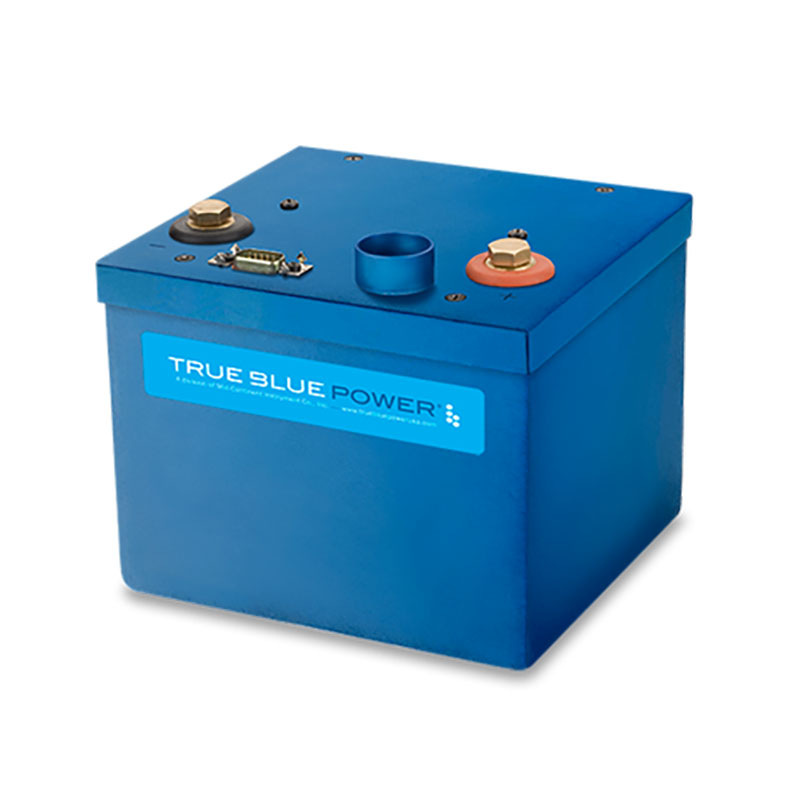

True Blue Power TB14 Lithium-Ion Battery

0 Reviews 0 Answered Questions
Select Version:
StandardSteel Case
Quantity
Add to Wishlist

Overview

Cut your aircraft battery weight and increase your useful load. The TB14 is designed for smaller, 28-volt fixed wing aircraft. You’ll gain faster and cooler engine starts and benefit from superior performance in extreme temperatures (-20°C to +70°C). The TB14 features built-in charge current limiting to protect your aircraft's alternator or generator without needing to install additional equipment and delivers cockpit communication via RS-232 (analog and discrete signals). This lithium-ion aircraft battery is TSO certified, lasts 8 years and features on-condition maintenance, saving you time and money.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Capacity: 13 amp-hour nominal at 23°C/73.4°F
  • Charge Voltage: 28.8 VDC nominal
  • Output Voltage: 26.4 VDC nominal
  • Output Current: 100 A continuous, 850 A max
  • Technology: Advanced iron phosphate lithium-ion cell chemistry
  • Protection: Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
  • Energy Density: 76 Wh/kg 121 Wh/liter
  • Operating Temperature: -20°C to +70°C (-4°F to +158°F)
  • Weight: 10 lbs. (4.54 kg)
  • Dimensions: 6.3” L x 5.6” W x 4.9” H
  • Configuration: 2P8S; 2 parallel cells x 8 series cells
  • Maintenance: On-condition
  • Battery Life Expectancy: 8 years (average)
  • Case: Anodized aluminum, blue
  • Certification: FAA TSO C179b (Class A-4B), RTCA DO-311A, RTCA DO-160G, RTCA DO-178C DAL A, UNDOT/IATA

Benefits

  • Delivers more power per pound than any other aircraft battery
  • 13 amp-hour nominal at 23°C/73.4°F
  • Weighs 10 lbs. (4.54 kg)
  • Advanced iron phosphate lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • 35 minutes (at 28 amps average) for complete recharge when the battery is fully discharged
  • Superior high-temperature and cold-weather performance from -20°C to +70°C (-4°F to +158°F)
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Communicates battery status to the cockpit via RS-232, analog and discrete signals
  • On-condition
  • 8 years (average) life expectancy
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO Certified
  • Two-year limited warranty
