| Description | PN | Price | Buy |
|---|---|---|---|
| Rear Terminal Mini Fuse Panel | 11-13348 | $62.75 | |

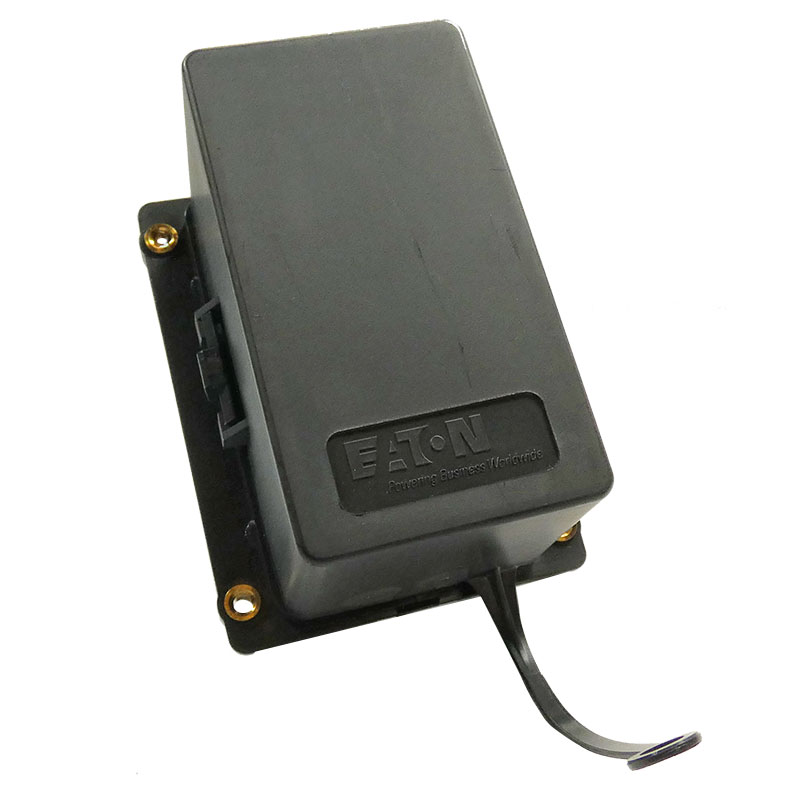

| Rear Terminal Combo Mini Fuse & Micro Relay Panel | 11-13351 | $62.75 | |

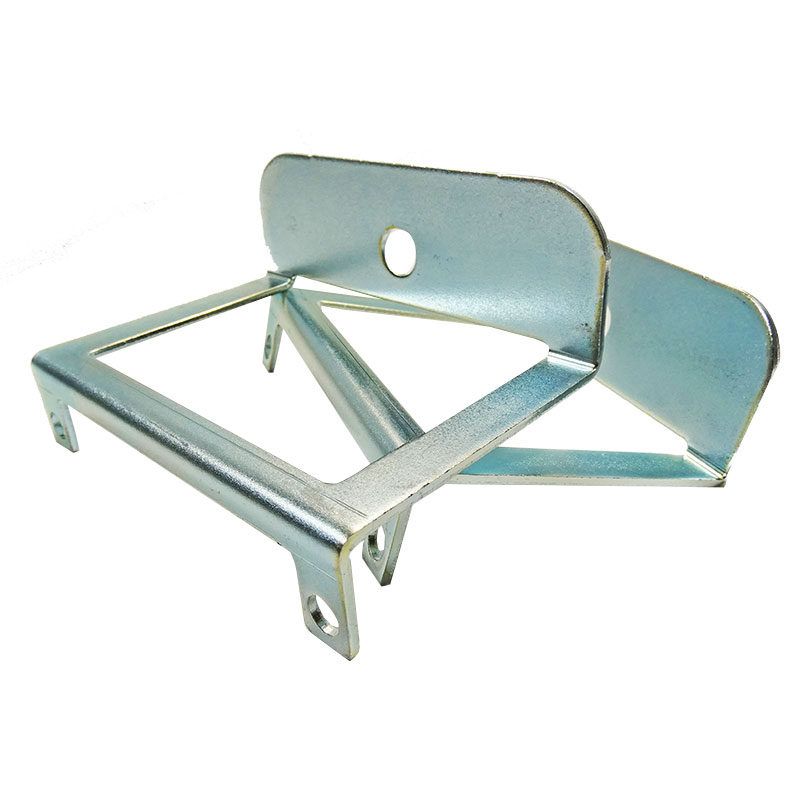

| Mounting Bracket Sold as Pair | 11-13352 | $20.95 | |

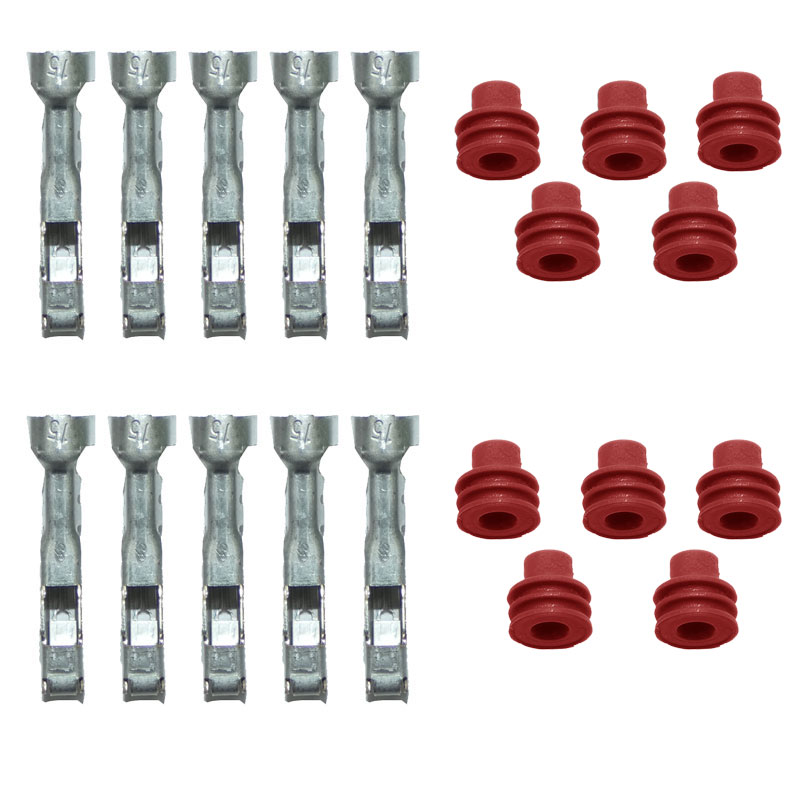

| Terminals 22-20ga with seals Red (10 terminals & 10 Seals) | 11-13353 | $9.95 | |

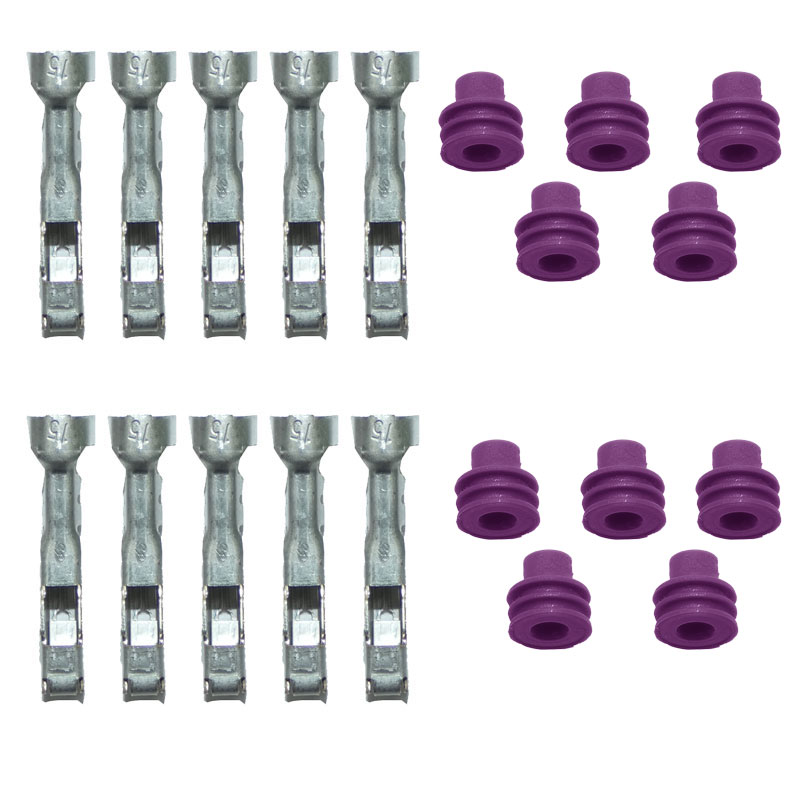

| Terminals 18-16ga with seals Purple (10 terminals & 10 Seals) | 11-13354 | $9.95 | |

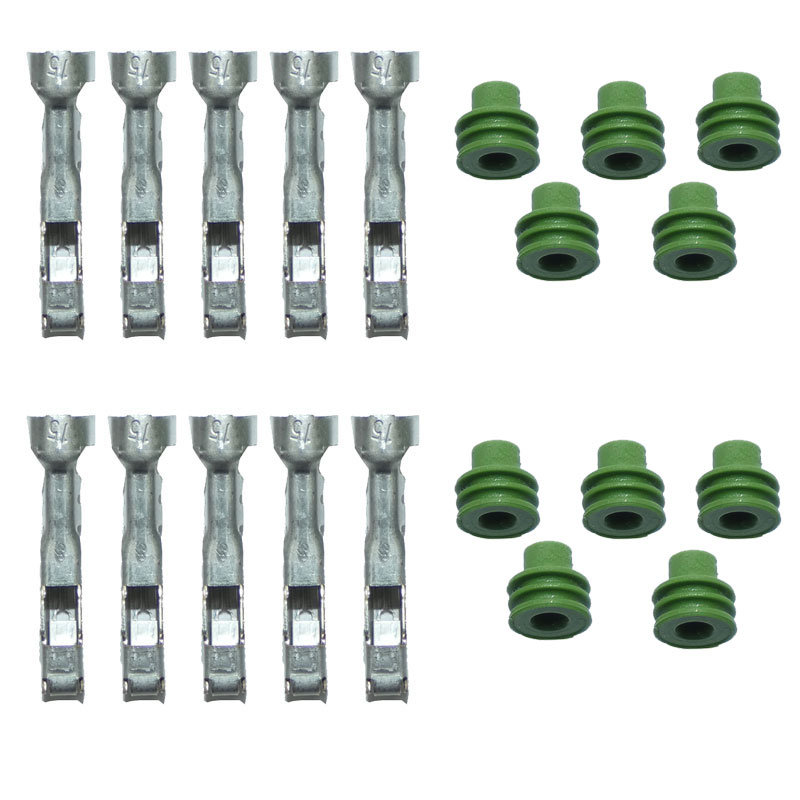

| Terminals 16-14ga with seals Green (10 terminals & 10 Seals) | 11-13355 | $9.95 | |

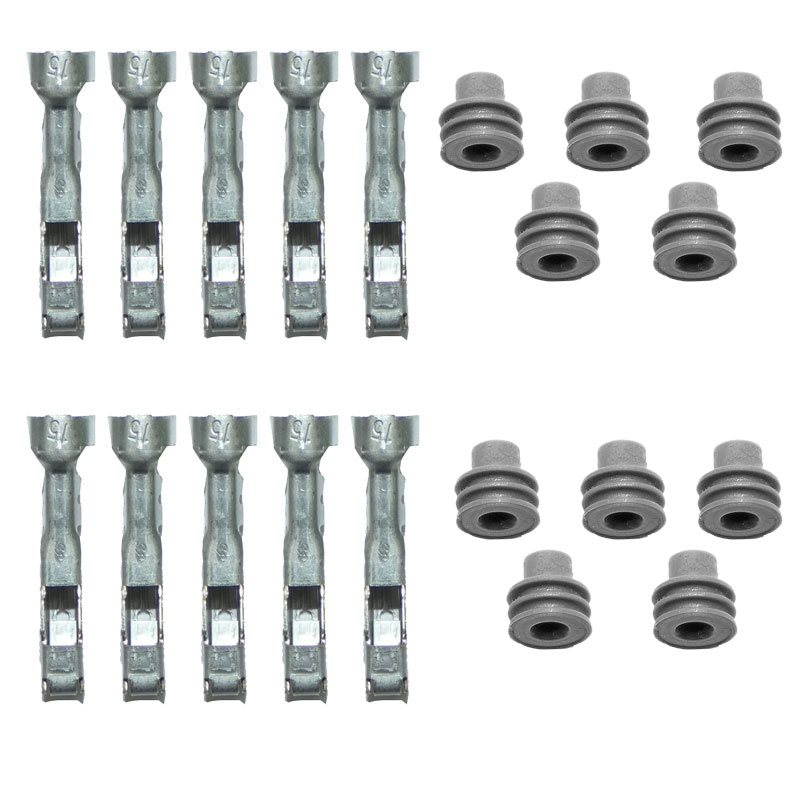

| Terminals 14-12ga with seals Gray (10 terminals & 10 Seals) | 11-13356 | $9.95 | |
| Cavity Plug - 5 plugs | 11-13357 | $3.45 | |

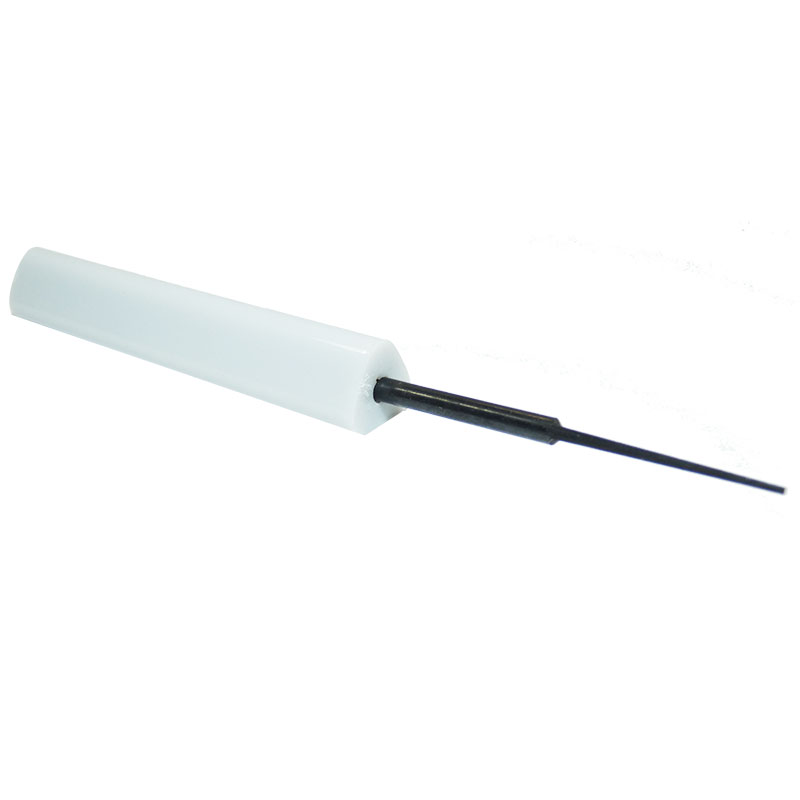

| Terminal Removal Tool | 11-13358 | $16.85 | |

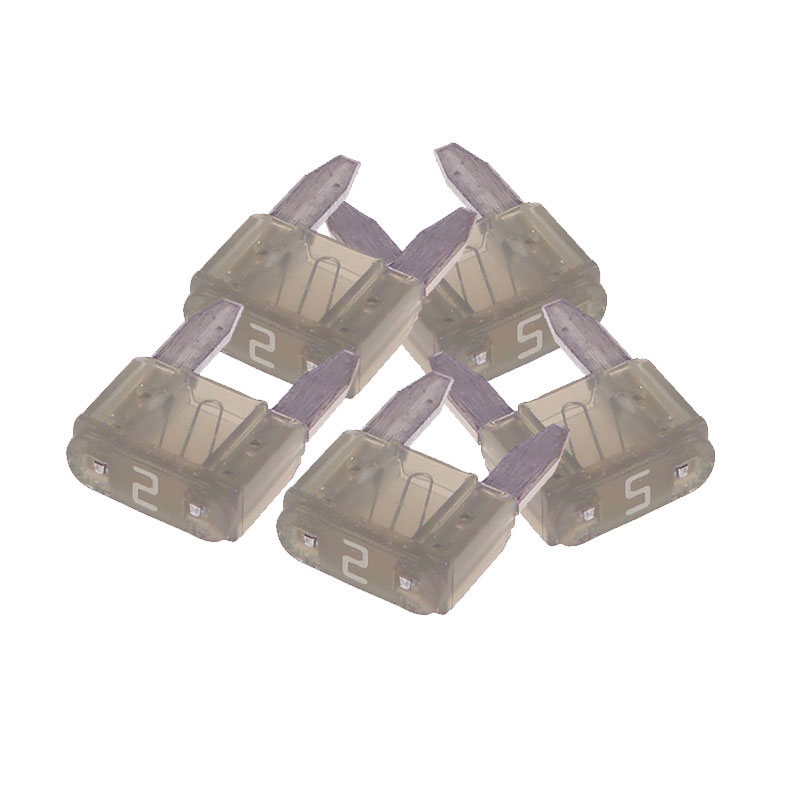

| Mini Fuse Gray 2 Amp Pack of 5 fuses | 11-13359 | $4.75 | |

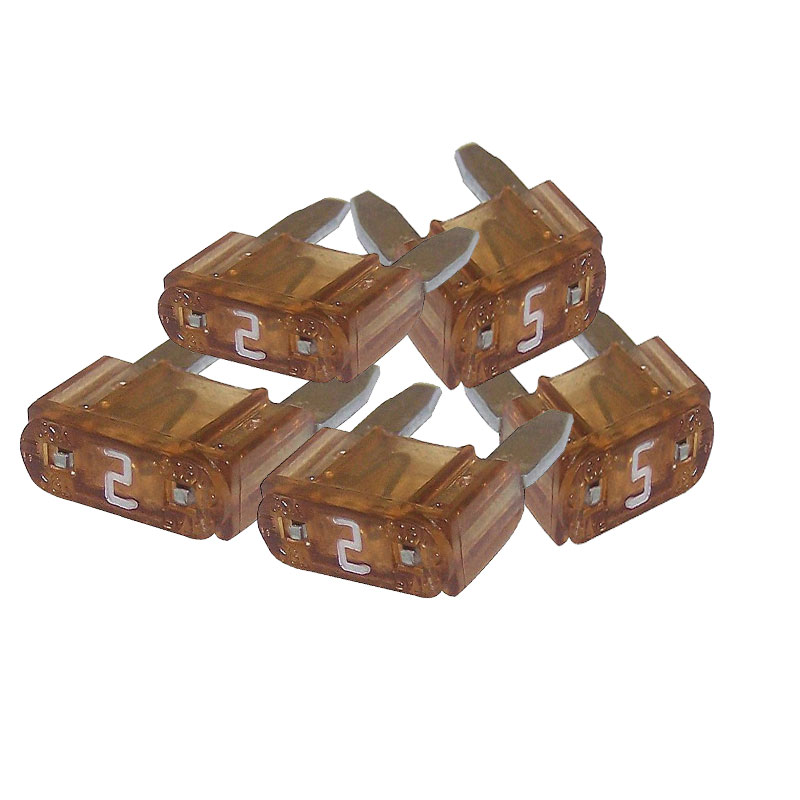

| Mini Fuse Tan 5 Amp Pack of 5 fuses | 11-13360 | $4.95 | |

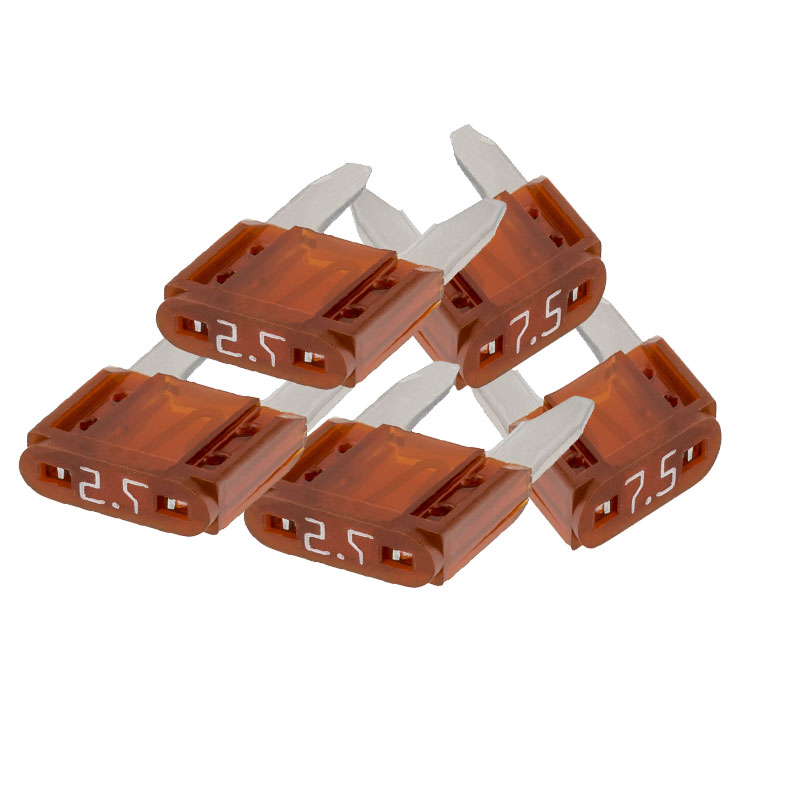

| Mini Fuse Brown 7.5 Amp Pack of 5 fuses | 11-13361 | $4.95 | |

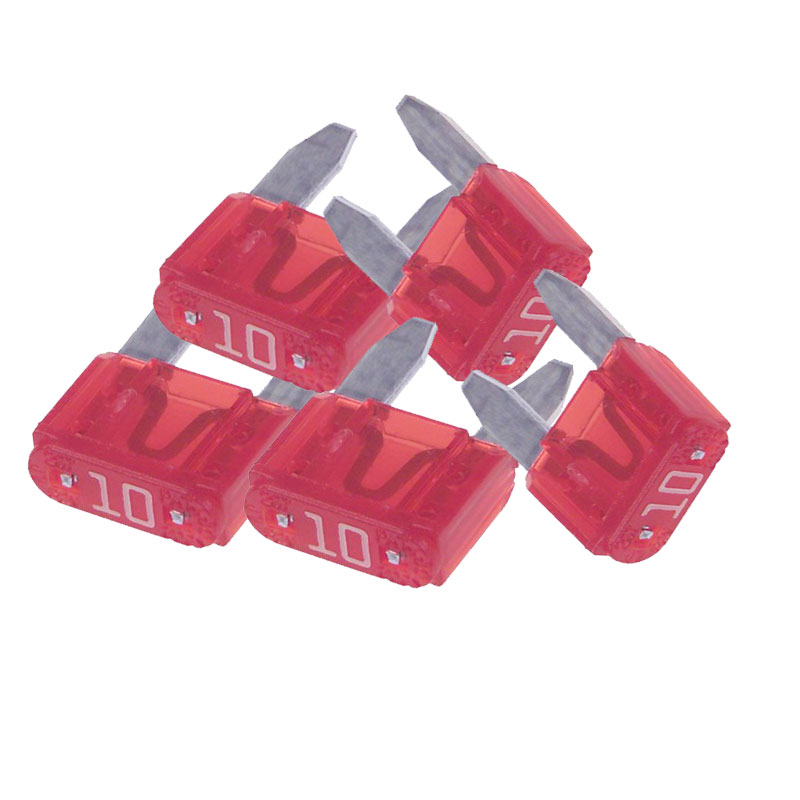

| Mini Fuse Red 10 Amp Pack of 5 fuses | 11-13362 | $5.25 | |

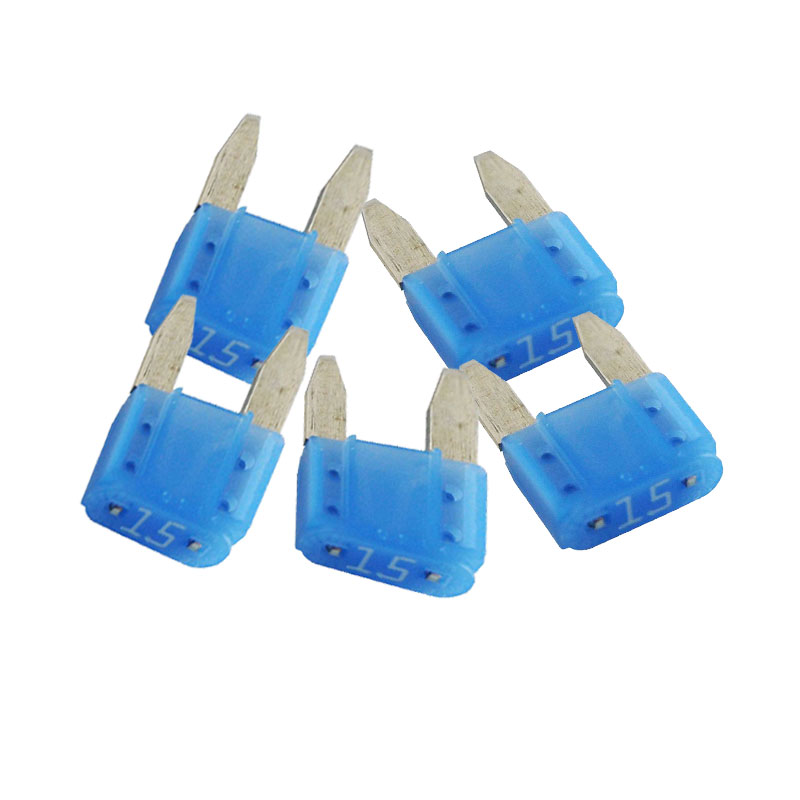

| Mini Fuse Blue 15 Amp Pack of 5 fuses | 11-13363 | $4.95 | |

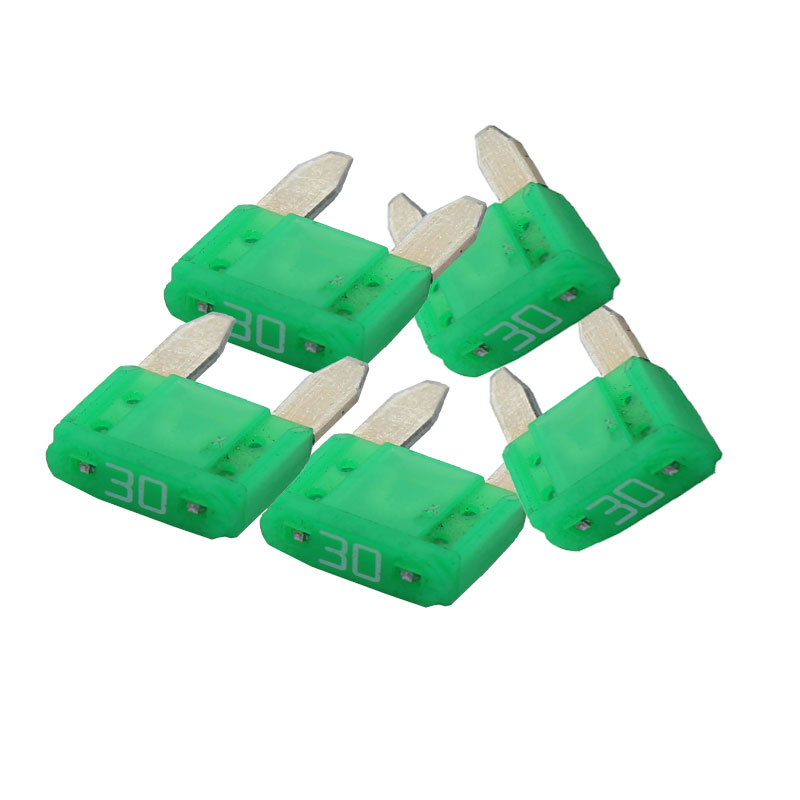

| Mini Fuse Green 30 Amp Pack of 5 fuses | 11-18507 | $4.75 | |

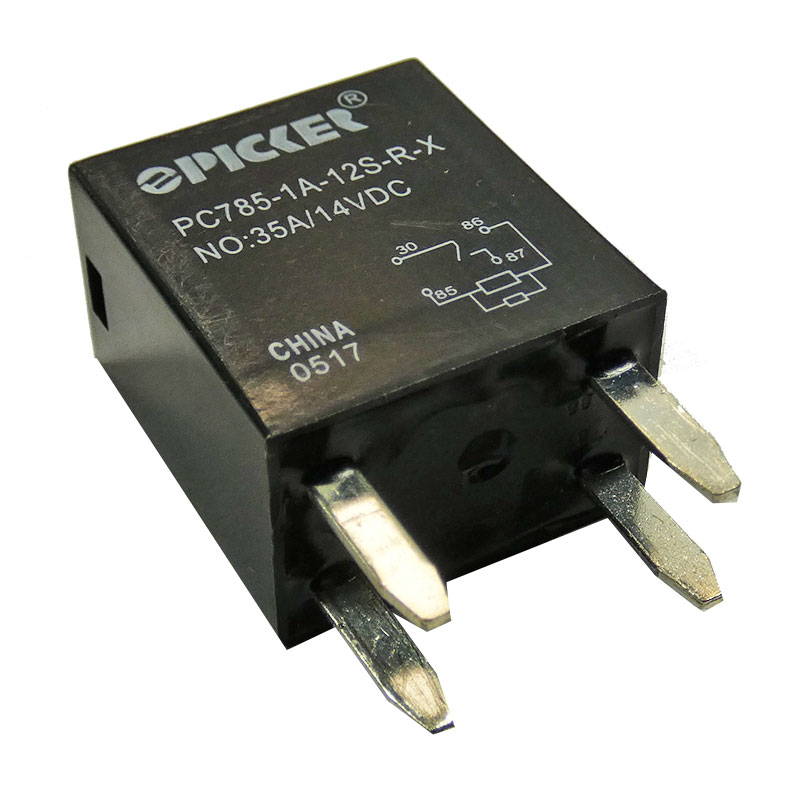

| Micro Relay 12 Volt AMP RATING NO-35/NC-- / SPST contact | 11-13364 | $7.95 | |
| Micro Relay 12 Volt AMP RATING NO-35/NC-25 / SPDT contact | 11-13365 | $7.85 | |
| Micro Relay 24 Volt AMP RATING NO-20/NC-15 / SPDT contact | 11-13366 | $7.50 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview

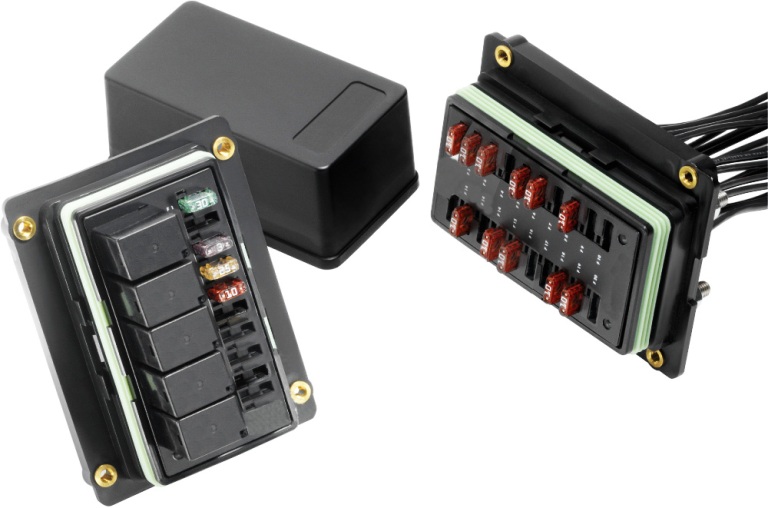

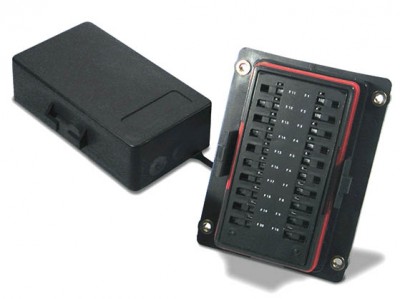

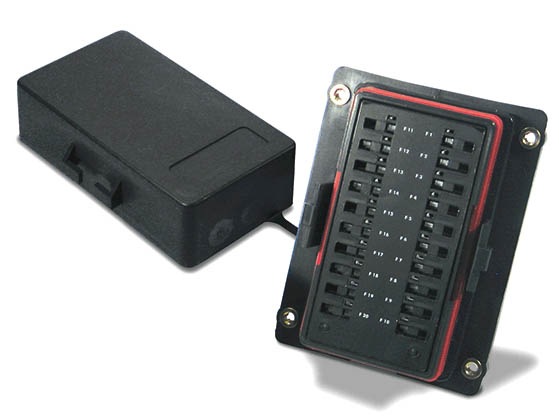

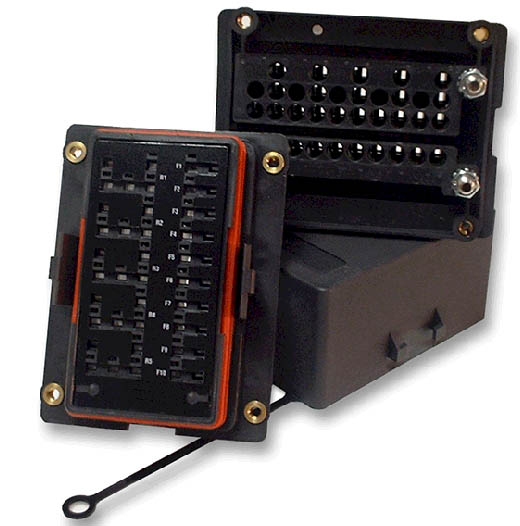

Seal-All Mini Fuse Panel
Sealed cap cover and seals for wires to make it a weather tight unit Compact size (4.44"H x 3.33"W) Each row of 10 fuses is separately bused with #10-32 input studs (you can separate avionics and lighting circuits on separate busses and control power to them by relays) Accepts wire size 22-12 gauge Easy wiring (crimp terminal and push into hole on the backside) Uses crimp terminals (sold separately based on wire size and accepts 22-12 ga wire) Wire seals are included with the crimp terminals to make a weather tight seal Available mounting bracket for easy mounting and wiring (sold separately) Cavity plugs are available to seal any unused openings Seal-All Combination Mini Fuse and Micro Relay Panel
Sealed cap cover and seals for wires to make it a weather tight unit Compact size (only 4.44"L x 3.33"W) Row of fuses and relays are bused separately with #10-32 nickel plated brass input studs (you can separate essential and non-essential circuits and control power to them by relays) Easy wiring (crimp terminal and push into hole on the backside) Accepts wire size 22-12 gauge Uses tangles terminals (sold separately based on wire size and includes seals) Available mounting bracket for easy mounting and wiring (sold separately) Wire seals available for every wire size (and cavity plugs for any unused openings) |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
As described and got fast to Hawaii. Thank you.
Verified Purchase
SPT Fuse Relay Panel Gray Seal And Terminal Kit 14-12 Wire
As described and got fast to Hawaii. Thank you.
Verified Purchase
SPT Fuse Relay Panel Green Seal And Terminal Kit 16-14 Wire
2nd try at ordering this part, got the right p/n this time but unit wasn’t quite assembled correctly. AS&S made it right by crediting my account the price of the unit
Verified Purchase
SPT Rear Terminal Mini Fuse Panel
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this panel is only the panel itself. All fuses and terminals are sold separately.
No, there is a top cover for water/moisture protection. The wires come out of the bottom and each wire is individually sealed (the seals come with the terminal connectors.)
Part # 11-06592 per the manufacturer.
