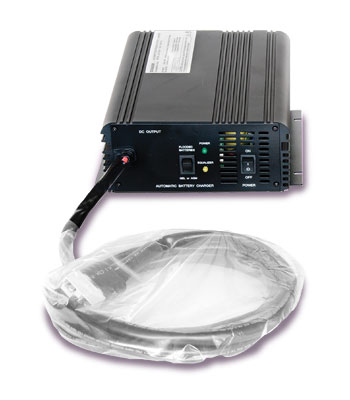

Schauer Battery Charger 12V/25Amp With Battery Clips

0 Reviews 1 Answered Question
$285.95/Each
Quantity
Add to Wishlist
Part# 11-14734
MFR Model# JAC2512-C

Overview

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic.
Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Charge control: constant current charge to a constant voltage, then to a float standby voltage.
  • Current limiting.
  • Fully automatic 3 stage charger can be left on the battery in maintaining/float mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic Voltage: Flooded 2.47 volts/cell; Gel & AGM 2.4 volts/cell. May be preset to customer's specification for battery type.
  • Continuous - 100% duty cycle.
  • Low voltage start: will start a deeply discharged battery with low terminal voltage.
  • Reverse polarity and short circuit proof.
  • Aluminum case.
  • Not intended for use as a DC power supply.
  • AC Input 115/230 volts, 50 or 60Hz Input voltage selection by switch.

Specifications

  • Amps: 25
  • Volts: 12
  • Dimensions: 10"W x 7.5"H x 3"D
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this charger certified to work with gill and concorde aircraft batteries?

Gill and Concorde recommend BatteryMinder chargers. They may work with those batteries but could void the warranty.
