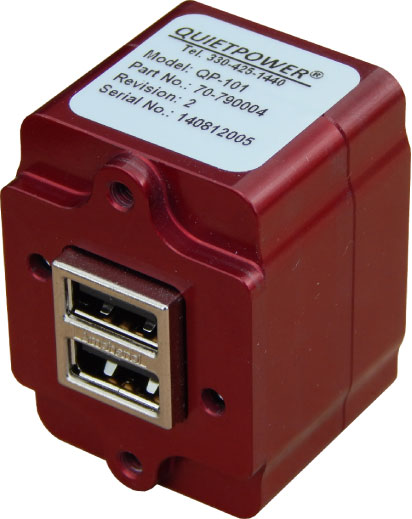

Quiet Power Charger Assembly 12 VDC Aux
Select Model:
Non-LightedLighted
FREE Shipping
Overview
|
The QUIET POWER® QP™-104 Series Dual USB Charging Port is designed specifically for aircraft cockpit and cabin installation and is compatible with both standard and high-power USB. Simultaneously charges two USB powered devices, including cell phones, tablets, radios, ADS-B receivers and GPS devices. An Auxiliary Charging Port is available in the QP101-QP104 series products, producing 5, 9, 11 or 12 Volts DC. This port is provided to trickle charge remote devices such as hand-held radios, auxiliary / back-up flashlights and instruments, or an additional USB charging port. Fly with confidence knowing that your backup equipment is fully charged. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Simultaneously charge two USB and one AUXILIARY devices
- Over-Current, short-circuit and over-temperature protected
- Cockpit or cabin mount
- 2 year limited Warranty
- Designed and manufactured in Twinsburg, Ohio, USA
Specifications
| Input Voltage: | 13.2 - 36 VDC |
| Input Current: | 5 Amps Maximum |
| Output Current/Voltage: USB - Top Port: USB - Bottom Port: Auxiliary Port: | 2.1 amps @ 5 VDC ± 0.2 VDC 1.0 amps @ 5 VDC ± 0.2 VDC 1.0 amps @ 12 VDC ± 0.2 VDC |
| Efficiency: | 87% Average |
| Weight: | 0.2 lbs |

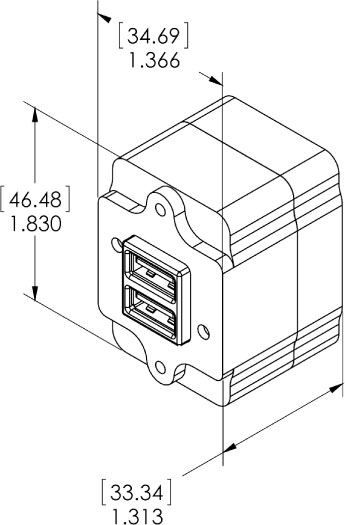

| Dimensions: | 1.4” W x 1.8” H x 1.4” D |
| USB Port Type: | USB Standard - A |
| RTCA DO-160G Qualified: | Temperature and Altitude - A1 Temperature Variation - C Power Input - B(xx) Emission of Radio Frequency Energy - M |
