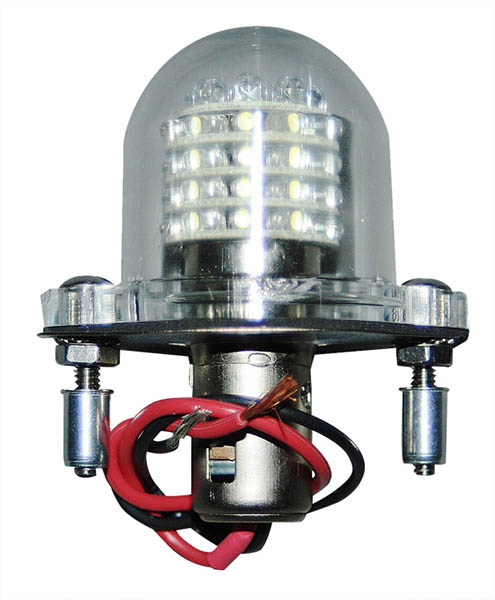

PSA Enterprises Model 936 Combination Tail / Beacon Light

14 Reviews 9 Answered Questions
Select Voltage:
12 volt24 volt
Quantity
Add to Wishlist

Overview

Replacement Lamp (part #s) P936-45-12VW and P936-45-24VW Tail Light with Beacon (Combination) for your Grimes or other incandescent tail light unit. Simply remove your current Incandescent lamp and replace it with the combination LED lamp and upgrade to LED’s and add a Beacon at the same time. Completely self-contained with no modifications required. This combination unit will save you 2 Amps as it draws less than .2 Amps. No RFI, Runs cooler and longer, NON-PMA

Color: White LED

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Adf M Verified Purchase

Combination Tail/Beacon Light 24V
October 5, 2024

Easy install, worked perfectly on my Cherokee 6.

Nicholas M Verified Purchase

Combination Tail/Beacon Light 12V
May 31, 2022

Simple and functional a great addition for the price

Viking S Verified Purchase

Combination Tail/Beacon Light 12V
January 11, 2022

Great Light, I have on on each of my planes

Matthew G Verified Purchase

Combination Tail/Beacon Light 12V
December 24, 2021

Very nice replacement for my Whelen A555A 28V Tail Light ... The pseudo strobe effect is impressive.

Paradox I Verified Purchase

Combination Tail/Beacon Light 24V
September 18, 2021

works like a charm

Yehoram U
January 7, 2021

Good product, easy install on my Mooney .... basically a plug and play after removing strobe power box. Brighter then original that came with plane.

Nick
October 27, 2020

Very bright, works fine.

Hkr
July 1, 2017

Fits perfectly, very bright tail light and beacon

Marc B
March 7, 2017

I installed this on my '59 Cessna over a year ago. I love it. No RFI at all. Increased visibility. Increased safety. Reduced current draw. People say that they can really see me at night with this product. It might not be PMA'd but neither is the fuse in the circuit. It is made to MIL spec's. An excellent product. I love it.

Barney K
June 2, 2015

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This combination tail / beacon light states that it will fit where a standard Grimes light would go. Does it need separate wiring for the strobe and nav or is it a selectable function?

Per supplier: The unit mounts in the same mounting holes as the Grimes. We do provide new screws as most often the old one are usually rusty. The unit does not require additional wiring (use the existing wiring) for the grimes. The unit is self contained and all the electronics are in the lamp. The nine LEDs facing to the rear are on continuously while the 36 LEDs around the circumference flash. One circuit controls both functions on one circuit. On or off.

Q: I note on the PSA enterprises Combination tail beacon light it says not PMA'd. Does this mean its for experimental aircraft only?

That is correct, since this is not a PMA'd or TSO'd product, this is for use in experimental aircraft and not certified aircraft.

Q: My Grimes does not rotate anymore due to stripped gears. Can I remove the shield behind the bulb and use this light in a stationary position?

The manufacturer does not recommend modifying the product.

Q: What is the difference between this unit and the PSA #11-12040 (LED tail/beacon light). I have a standard Grimes mounted tail light, do I need this unit or will the drop in bulb (#11-12040) do the same thing? Is this unit and just the drop in bulb rated at the same brightness? Thanks AS, great service as always!

Part # 11-12042 is the full assembly. If you already have the Grimes then the bulb part # 11-12040 will be sufficient for the install.

Q: What is the rated output (lumens or candlepower) of the beacon and the tail light of this PSA combo light?

Per the manufacturer: This is rated at 20 candlepower of the tail light, and the beacon portion is about 100 candlepower.

Q: On my Mooney I have a Whelen power supply, which gives me the beacon flash. Do I need to remove it for this unit?

Yes you would need to remove it, LED lights do not require the power supply.

Q: What socket type(base) is used BAY15s or BA15s?

This is a BA15S base.

Q: I do not have any beacon on my experimental plane, can this unit be used as a stand alone beacon with power via a switch to it?

Yes, it could be used for that application.

Q: This unit is is clear (white light) and also produces a red beacon flash correct?

This is a white light that produces a white light flash.
