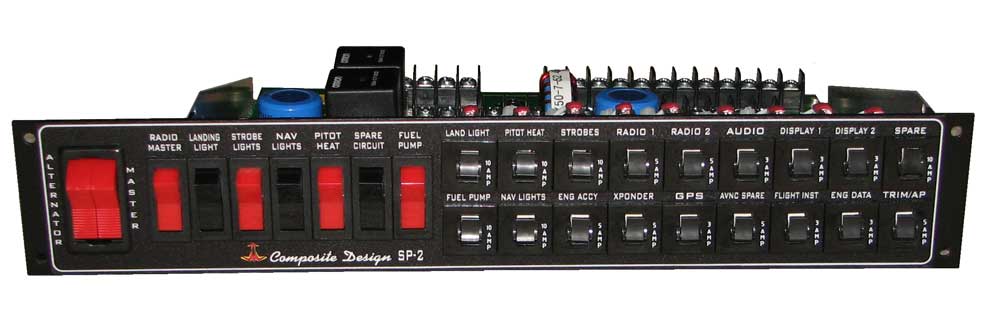

Standard Power Panel

$820.00/Each
Quantity
Add to Wishlist
Part# 11-11675

Overview

The Composite Design Standard Power Panel was revised February 2011. This is the first change to this product in 18 years. Changes were made to compliment modern avionics and instrumentation.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Dimensions: 2.25”H x 13.00”W x 7.75”D
  • Weight: approx. 2.75 pounds
  • Panel Specifications:
    Capacity:17.5 V max. at 80A (Main Buss)
    Radio Buss: 25A cont.
    Essential Buss: 10A cont.
  • Switches:
    Master
    Alternator Field
    Radio Master
    Landing Light
    Strobe Lights
    Nav Lights
    Fuel Pump
    Pitot Heat
    Spare Circuit control
  • Circuit Breakers – Main Buss:
    Landing Light
    Strobes
    Nav Lights
    Fuel Pump
    Pitot Heat
    Spare
    Engine Accessories
  • Circuit Breakers – Radio Buss:
    Radio 1
    Radio 2
    Transponder
    GPS
    Audio
    Avionics Spare
  • Circuit Breakers – Essential Buss:
    Display 1
    Display 2
    Flight Inst
    Engine Data
  • This Panel has Essential Buss back-up capability for use with the Composite Design Power Guard Module and back-up battery

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Standard Power Panel for certified or experimental aircraft?

The Standard Power Panel is for experimental aircraft only.

Q: Do you the instruction manual for the Standard Power Panel by Composite Design available as a PDF download?

Yes, it is located under the documents tab of p/n 11-11675 on the website.

Q: Can I re-label the switches and breakers? If so, what is needed? Also, do you have a cutout template?

Per the supplier: "We can do custom labeling for a fee, but it cannot be relabeled by the customer. Typical custom artwork projects are $150+." We have added the template to the web page for download.
