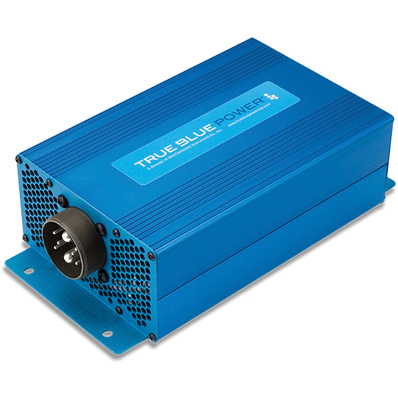

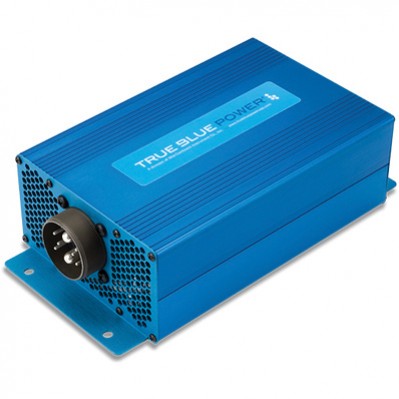

True Blue Power Inverter 6432000-2
$13863.00/Each
Part# 10-07619
MFR Model# 6432000-2
MFR Model# 6432000-2
FREE Shipping
Overview
| True Blue Power Inverter 6432000-2 |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Supplies 2,000 watts of wall outlet power
- Ideal for emergency medical equipment, special mission and VIP cabin configurations
- Lightweight — 7.7 lbs
- 93% efficiency
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 20 – 36 VDC
- Input Current: 80A at 28 VDC input
- Output Voltage: 230 VAC ± 3%
- Output Power: 2,000 VA
- Output Frequency: 50 Hz ± 0.1%
- Output Waveform: Single phase, true sine wave,
- < 3% total harmonic distortion
- Weight: 7.7 lbs (3.49 kg)
- Altitude: 55,000 ft
- Humidity: Tested to greater than 95% for 10 days,
- temperature cycle of 75° F to 160° F
- Temperature: -67°F to +158°F (-55°C to +70°C)
- Integral Cooling: Dual, electronically-controlled brushless fans
- Mating Connector: P/N 9018784-1
- P/N 9018550-2 (cable clamp / backshell)
- Case: Anodized aluminum extrusion, blue
- Certification: FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
