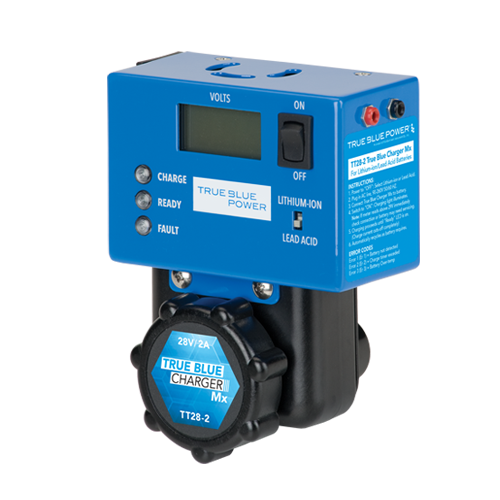

True Blue Power Charger MX TT28-2

$1324.00/Each
Quantity
Add to Wishlist
Part# 10-07287
MFR Model# 282-101

Overview

Charge and maintain lithium-ion and lead-acid aircraft batteries with the intelligent and compact TT28-2 True Blue Charger Mx.

Charge and maintain lithium-ion and lead-acid aircraft batteries with the intelligent and compact TT28-2 True Blue Charger Mx. The intelligent True Blue Charger Mx extends battery life and provides simple, safe and automatic charging for lithium-ion and sealed lead-acid aircraft batteries.

The intelligent True Blue Charger Mx extends battery life and provides simple, safe and automatic charging for lithium-ion and sealed lead-acid aircraft batteries. The direct-connect, 2.5-amp charger maintains batteries of any capacity, from zero to full state-of-charge (SOC), while continuously displaying battery voltage. The highly-efficient True Blue Charger Mx can be used for standby maintenance without trickle charging.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Charges and maintains sealed lead-acid and all True Blue Power lithium-ion aircraft batteries:
  • TB17* (17 amp-hour) - TB40 (40 amp-hour)
  • TB20 (20 amp-hour) - TB44 (46 amp-hour)
  • TB30 (30 amp-hour) - TB60 (60 amp-hour)
  • Power Output: 2.5 amps charge current limit
  • Alphanumeric LCD display provides battery voltage and indicationsCharge, Ready and Fault LED indicators
  • Continuously monitors and charges to maintain a quick-ready state
  • One-year limited warranty
  • Specifications

    Model Number TT28-2
    Part Number 282-101
    Input Voltage 90 – 264 VAC, ±10%
    47 – 63 Hz
    1A (maximum)
    Input Connector IEC60320-C13
    Battery Charge Voltage Lithium-ion 28.8V (maximum)
    Lead-acid 28.6V (maximum)
    Operating Temperature -20°C to +50°C (-4°F to +122°F)
    Storage Temperature -28°C to +70°C (-18°F to +158°F)
    Timing Accuracy ±5% of nominal time
    Display Accuracy ±0.2 volts
    Weight 2 lbs (0.9 kg)
    Dimensions 4.33” W x 5.9” H x 3.8” D
    Battery Connector MS-3509 compatible
    Protection and Monitoring Overcharge and over-temperature protection
    Internal timer automatically monitors open-circuit voltage to determine top charge
