Lc-40E Lighting Controllers

$129.95/Each
Quantity
Add to Wishlist
Part# 11-03366
MFR Model# LC-40E

Overview

The LC-40e Lighting Controllers are Low Cost Four-Channel Light Dimming Systems for Experimental Aircraft

The LC-40e is a low cost four channel light dimming system. Compact and modern, it features extra control knob sensitivity at dim end of the lighting range where it is needed most. It is microcontroller controlled and has continuous over voltage, current limit and fault protection. Each channel can handle 1.5 amps

LC-40e

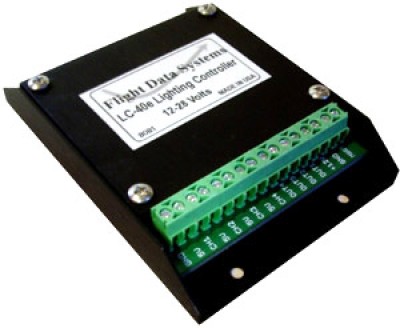

The LC-40e comes in an anodized brushed aluminum chassis.Potentiometers included.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Less than Half the Price of other Comparable Systems
  • Four Independent Channels
  • 1.5 Amps per Channel (Typically up to18 Post Lights Per Channel)
  • Capable of Dimming LED Lighting
  • Low frequency PWM control eliminates bulky heatsinks
  • Overload and Short Circuit Protection
  • Compact Design (LC-40: 2.4”x1.8”, LC-40E: 2.5"x3.4") Mounts Easily
  • Microprocessor Control Allows Continuous Fault Monitoring and a "Bi-Linear" Response
  • "Bi-Linear" Response Gives the Pilot More Sensitivity at the Dim End of the Range Where it is Needed Most
  • "Master Bright" mode allows all or selected channels to be joined and controlled by a single knob
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the overall size and hole size for the dimmer pots that come with the unit?

The unit has the measurements of width 2.53", Length 3.42", Height .55".
