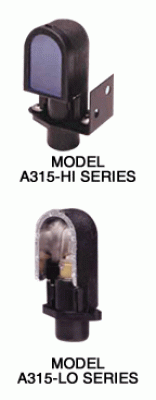

Interior Lighting Model A315Lo Series

$62.50/Each
Quantity
Add to Wishlist
Part# 11-03679
MFR Model# 01-0770106-00

Overview

Cockpit utility light assembly which rotates for convenience in reading maps and illuminating instrument panels. Furnished with a right angle bracket for ease of mounting. Available with Instrument White (blue) lens, Red or Clear. Uses a 14 VDC #1414

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight: 0.07 lbs.
  • Height: 2.2”
  • Depth: 0.93”
  • Width: 0.87”
  • Power Consumption: 0.46 amps @ 14 VDC, 0.3 amps @ 28 VDC
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are you sure the dimensions here are in inches and not in centimeters?

Per Whelen's website the dims are. Height: 2.18 (55mm) | Depth: 0.81 (21mm) | Width: 0.81 (21mm)

Q: What is the difference between the HI and the LO series? thanks.

A315-HI version comes with a bracket and a colored lens assembly depending on what version the customer wants. Besides that the items are identical.
