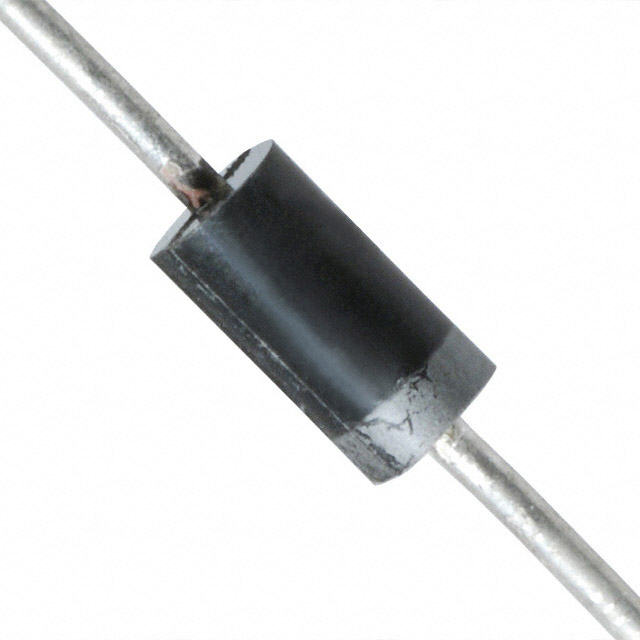

Digikey 1N4007-TP Diode Standard 1000V 1A Through Do-41 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Category | Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
---|---|
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Technology | Standard |
Voltage - DC Reverse (Vr) (Max) | 1000 V |
Current - Average Rectified (Io) | 1A |
Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
Speed | Standard Recovery >500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 2 µs |
Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
Mounting Type | Through Hole |
Package / Case | DO-204AL, DO-41, Axial |
Supplier Device Package | DO-41 |
Operating Temperature - Junction | -55°C ~ 150°C |
Base Product Number | 1N4007 |
