D B Assembly Apu Battery Chargers / Power Supply Series P-1450

Select Version
Power SupplyBattery Charger
Select Unit:
Power Supply OnlyPower Supply Only (European)Power Supply w/ Piper Plug (European)Battery Charger OnlyBattery Charger Only (European)Battery Charger w/ Piper PlugBattery Charger w/ Piper Plug (European)
Quantity
Add to Wishlist

Overview

The D B Assembly, Inc. Aircraft Ramp Power Supply and Battery Charger "APU" series is a dual-purpose aircraft flight line service and maintenance tool. The unit has a filtered 14 volt DC power supply with up to 50 amperes capability for tests of aircraft electrical systems and a secondary mode for recharging run-down batteries.

The P-1450 series plugs directly into the aircraft APU connector and is tied to the electrical system when the master switch is activated.

This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

The battery charging mode is selectable by a front panel switch. The charging process is fully automatic. When the charge is in progress a red LED is illuminated. This is replaced by a green LED when the aircraft battery is fully charged. The on/off switch on the unit also resets the unit.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • 50 amperes filtered 14 volt supply
  • Aircraft APU connectors furnished
  • Operates from: P-1450 / P-1450A 115 VAC, 60 Hz -- P-1450 AE 230 VAC, 50 Hz -- P1450E 220 VAC, 50 Hz
  • AC circuit breaker included
  • 7 foot DC cable furnished
  • Weighs only 46 pounds. Portable
  • Ferro-resonant regulated supply
  • One year warranty
  • Extensive testing by FBO's
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

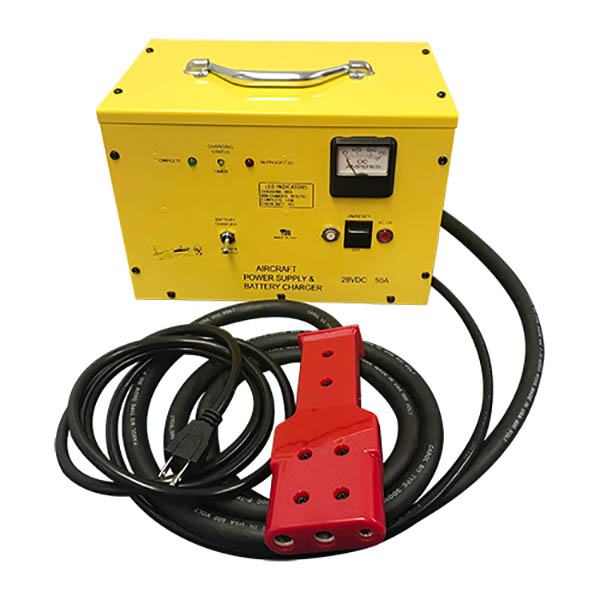

Q: The description of the unit indicates it is 14volt only, but the unit in the photo indicates 28 volt. Is it both?

No it is only 14V. The photo is a representative image of the series. If you order this item, it will be 14 volt.

Q: Is it a power supply plus a battery charger? That is what I want. What is the part number with Spruce for the combo 50 amp?

That would be part number 11-18258 for 14v 50amp.
