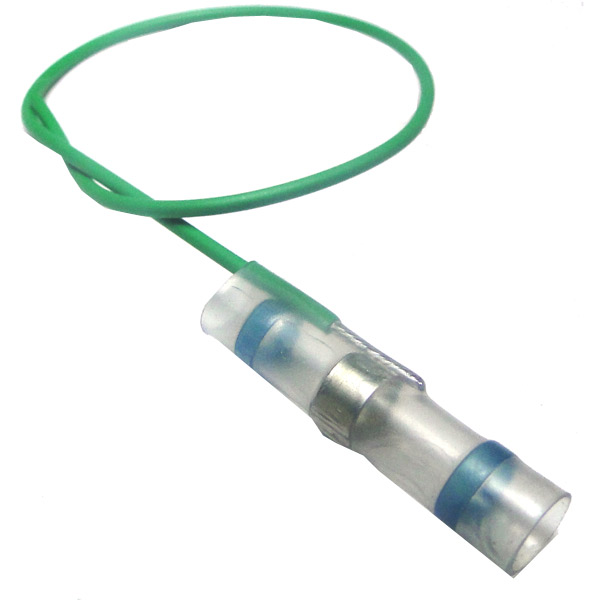

Te Soldersleeve With Pre-Installed Lead

$3.35/Piece
Quantity
Add to Wishlist
Part# 11-16370
MFR Model# CWT-5-W122-5

Overview

SolderSleeve shield grounding terminators provide an environmentally sealed, insulated, and encapsulated solder connection for a variety of applications.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Product Type: Shield Terminator
  • Temperature Indicator Type: Thermochromic
  • Temperature Indicator: Yes
  • Pre-Installed Lead: Yes
  • Pre-Installed Lead Type: XL Polyethylene
  • Lead Stranding: Stranded (W1)
  • Lead Plating Material: Tin
  • Lead Color: White
  • Specifications

  • Jacket Outside Diameter: 4.3 mm [.169 in]
  • Expanded Inside Diameter (Min): 4.3 mm [.17in]
  • Recovered Inside Diameter (Max): 2 mm [.079in]
  • Shield Outside Diameter (Min): 2 mm [.079 in]
  • Overall Length: 29.3 mm [1.15 in]
  • Pre-Installed Lead Wire Size (mm²): .38
  • Operating Temperature (Max)(°C): 125
  • Resistance Properties: Splash Protection
  • Wire Temperature (Max)(°C): 105
  • Government Qualified: No
