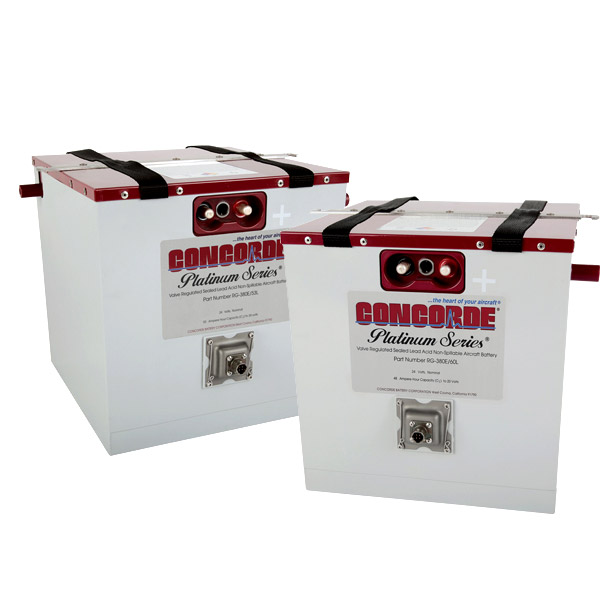

Concorde Cessna Citation Sovereign Battery RG-380E/53L RG-380E/60L Battery
Select Model:
STC Kit OnlySTC Kit with 53L BatteriesSTC Kit with 60L Batteries
FREE Shipping
Overview
|
STC provides for the installation of two Concorde RG-380E/53L or RG-380E/60L, fitted with temperature sensors TS-C1B, in place of the original equipment nickel cadmium batteries.
Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde's VRLA-AGM batteries are well known for quality and their ability to perform reliably in hot & cold climates with superior engine starting performance and excellent charge acceptance.Concorde’s proprietary PolyGuard® Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature. Main Battery Upgrade – Marathon 9914058-6 (24V, 44Ah) is replaced with either RG-380E/60L (24V/48Ah) or RG-380E/53L (24V/53Ah). |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
Description of the RG-380E/53L Aircraft Battery:RG-380E/53L is a fire resistant powdered coated aluminum container & cover with side vent tubes. Temperature Sensor mounting pad in front, fabric lifting straps and hold down bar on the cover.
- Certified battery for turbine and piston engine aircraft models
- Certified nickel cadmium battery replacement in many aircraft
- Superior starting power
- Reliable essential power in the event of a generator failure
- Low impedance design
- Maintenance free
- Constructed with non removable vent valves - no addition of electrolyte or water required
- Aerobatic: Non spillable at any altitude or attitude
- Factory tested to assure airworthiness
- Shipped fully charged
- RG® Series batteries ship HAZMAT EXEMPT
Description of the RG-380E/60L Aircraft Battery:
RG® Series batteries ship HAZMAT EXEMPT RG-380E/60L is housed in a fire resistant aluminum powder coated container with polypropylene side vent tubes and a temp sensor mounting pad. Concorde Temperature Sensors are available. Cover of powder coated aluminum with stainless hold down bar and fabric lifting straps.
- Superior starting power
- Reliable essential power in the event of a generator failure
- Low impedance design
- Maintenance free - no addition of electrolyte or water required
- Non spillable at any altitude or attitude
- Factory tested to assure airworthiness
- Shipped fully charged and ready to install
- Manufactured with absorbed glass mat separators (AGM)
- Fire resistant powder coated aluminum container and cover with stainless hold down bar
- Side vent tubes, temperature sensor mounting pad
- Concorde aircraft batteries rated for engine starting may be used for emergency power
*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4-SPRUCE (777823) if applicable to your aircraft.
Benefits
- Lower cost of acquisition
- Increased capacity
- Reduced cost per flight hour
- No deep cycling requirement
- No part replacements
- Hazmat Exempt
- 100% recyclable – the green solution
Battery Specifications
Battery Type | Voltage | Ampere Hours | Max. Weight | Battery Diagram PDF |
RG-380E/53L** Turbine Starting Aircraft Battery | 24v | 53 | 96 lbs. | |
RG-380E/60L** Sealed Lead Acid | 24v | 48 | 96 lbs. |
Specifications
- STC provides for the installation of two Concorde RG-380E/53L or RG-380E/60L, fitted with temperature sensors TS-C1B, in place of the original equipment nickel cadmium batteries.
- 1) Install TS-C1B on each Concorde battery.
- 2) Aircraft fitted with Cessna Washer P/N 5538330-35 may require slight
- modification to washer in order to allow for proper fitment with the Concorde battery hold-down bar as detailed in the STC.
- 3) Batteries are drop-in replacements installed in accordance with the Cessna 680 Aircraft Maintenance Manual.
- STC includes two TS-C1B temperature sensor kits.
- Warranty Form
Documents
Concorde Cessna Citation SovereignConcorde Application Chart
FAA-PMA Installation Eligibility List
Limited Warranty (
Warranty Card
RG Series Aircraft Battery Owner/Operator Manual
Storage and Boost Charge Recommendations
Valve Regulated (RG® Series) Lead Acid SDS
Concorde Battery AS9100 Certificate of Registration
