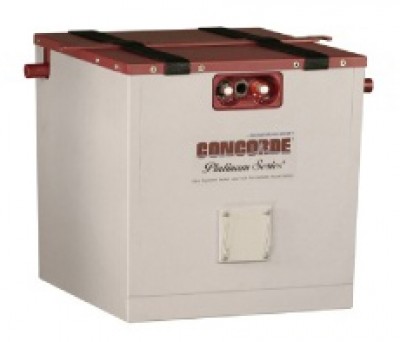

Concorde Sealed Battery RG-380E/60L

0 Reviews 0 Answered Questions
Select Model:
STC Kit OnlyRG-380E/60L
Quantity
Add to Wishlist View More In This Series →

Overview

Description of the RG-380E/60L Aircraft Battery:
Concorde recombinant gas (RGŪ Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde VRLA-AGM batteries are well known for quality and their ability to perform reliably in hot & cold climates with superior engine starting performance and excellent charge acceptance.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free - no addition of electrolyte or water required
  • Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • Fire resistant powder coated aluminum container and cover with stainless hold down bar
  • Side vent tubes, temperature sensor mounting pad
  • Concorde aircraft batteries rated for engine starting may be used for emergency power
  • RGŪ Series batteries ship HAZMAT EXEMPT RG-380E/60L is housed in a fire resistant aluminum powder coated container with polypropylene side vent tubes and a temp sensor mounting pad. Concorde Temperature Sensors are available. Cover of powder coated aluminum with stainless hold down bar and fabric lifting straps.

*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4-SPRUCE (777823) if applicable to your aircraft.

Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N

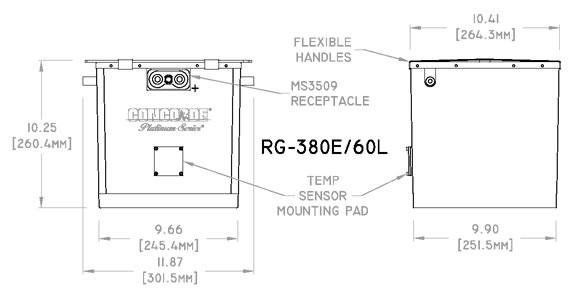

Battery Diagram PDF
RG-380E/60L**
Sealed Lead Acid
24
48
96 lbs.
11-10837

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
