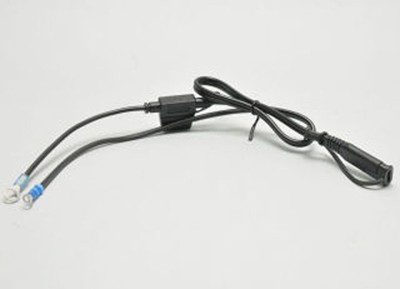

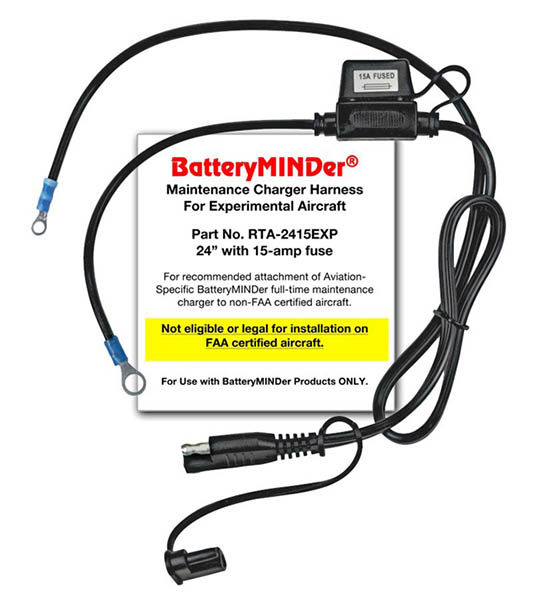

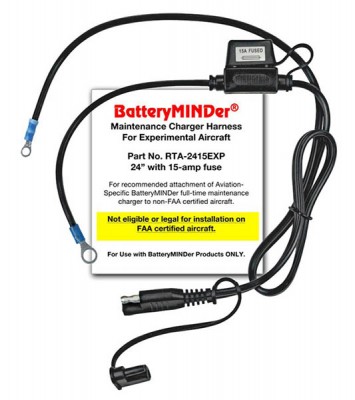

BatteryMINDer Maintenance Charger Harness For Experimental Aircraft

$25.95/Each
Quantity
Add to Wishlist
Part# 11-14576
MFR Model# RTA-2415EXP

Overview

Full-time maintenance charging with the new CEC1-AA BatteryMINDers. Ready-to-use cable assembly provides simple connection to experimental aircraft's master solenoid and airframe ground. SAE plug for aviation-specific BatteryMINDer maintenance chargers.

For experimental amateur-built aircraft only.
NOT eligible or legal for installation on FAA certified aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • 24" long with 15A inline safety fuse.
  • Adapts BatteryMINDer® SAE plug to ring terminals
  • NOT for attachment directly to battery terminals.

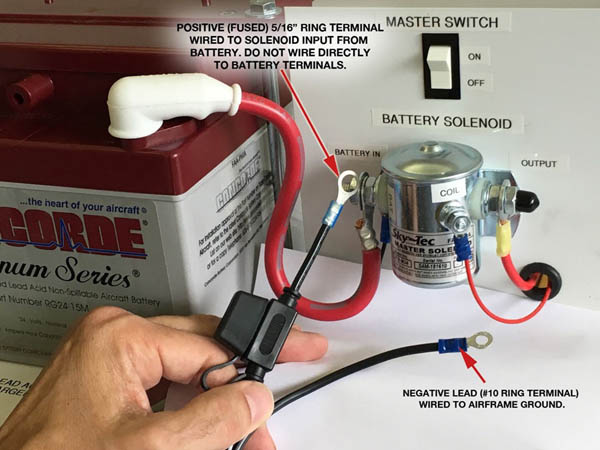

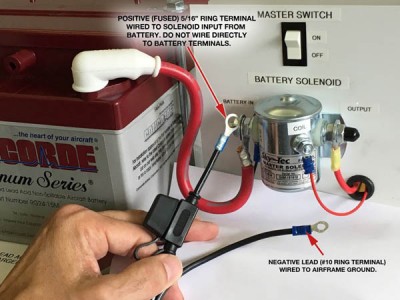

  • Connects to aircraft's master solenoid and airframe ground.
  • May be installed on experimental aircraft by the builder.

In The Box

  • Plug with in-line fuse
  • 5/16" and #10 ring terminals
  • Installation instructions

Reviews

This kit worked great, was easy to install and now I have the peace of mind that my battery will stay charged. I installed this on my experimental Mustang II which has a battery in the tailcone which is inconvenient to get to for charging. After adding about 18” to the positive wire, I ran the connection cable from the master solenoid through the baggage compartment bulkhead making the quick-disconnect for the Battery Minder now easily accessible. I wish I’d bought this years ago.

Rick H
December 11, 2020
