Aveo EyeBeam MB™ Cockpit & Cabin Light

Select Color:
SilverBlack
Quantity
Add to Wishlist

Overview

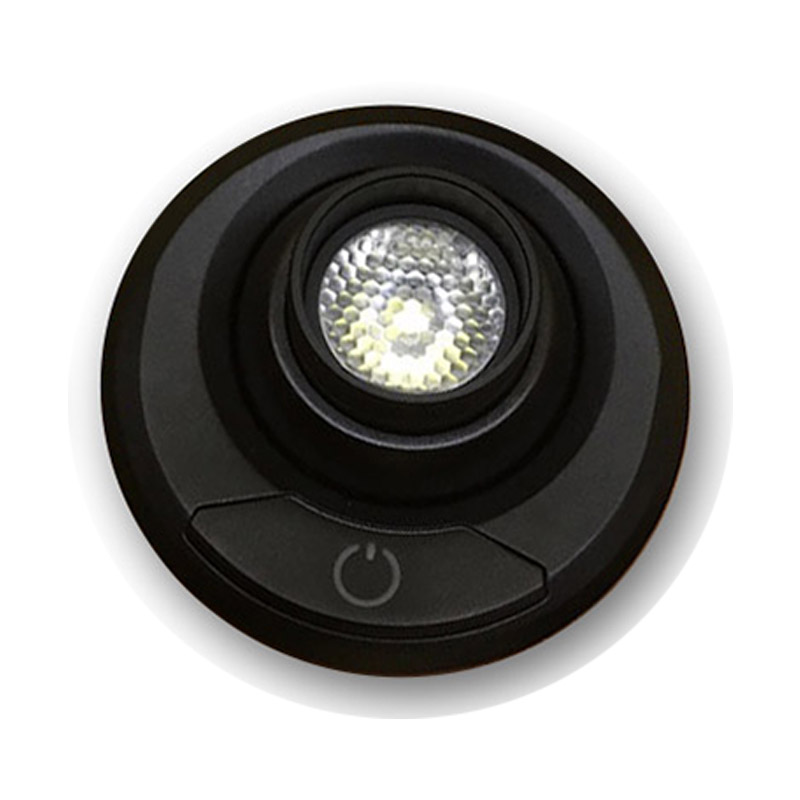

The new Aveo EyeBeam MB™ uses a single microswitch button to control cockpit and cabin lights. This "EyeBeam Mini-sized" light features a swiveling enclosure to direct light where you need it simply and quickly. Standard aluminum colors available are anodized black or anodized silver.

Cockpit and cabin lighting, especially on aircraft, helicopters, boats, recreational vehicles and trucks are plagued by problems from vibration.... the EyeBeam MB™ overcomes this with a vibration-proof product.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Operating Voltage Range: 9 – 36 VDC

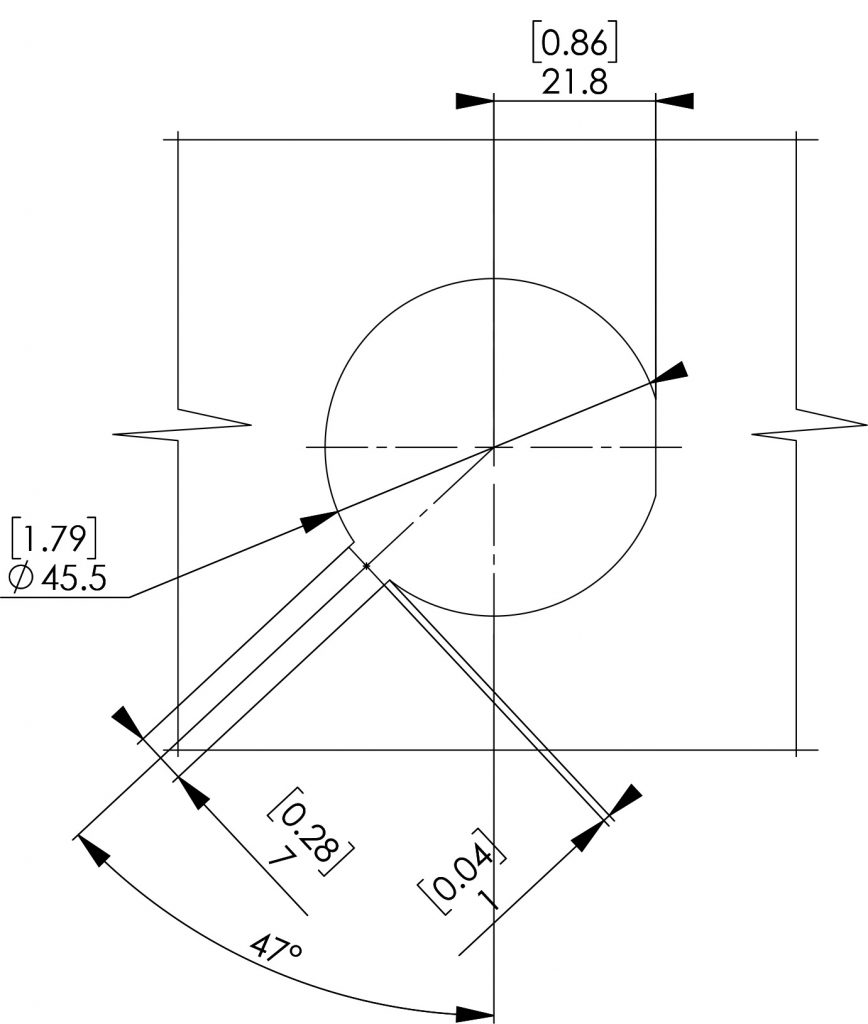

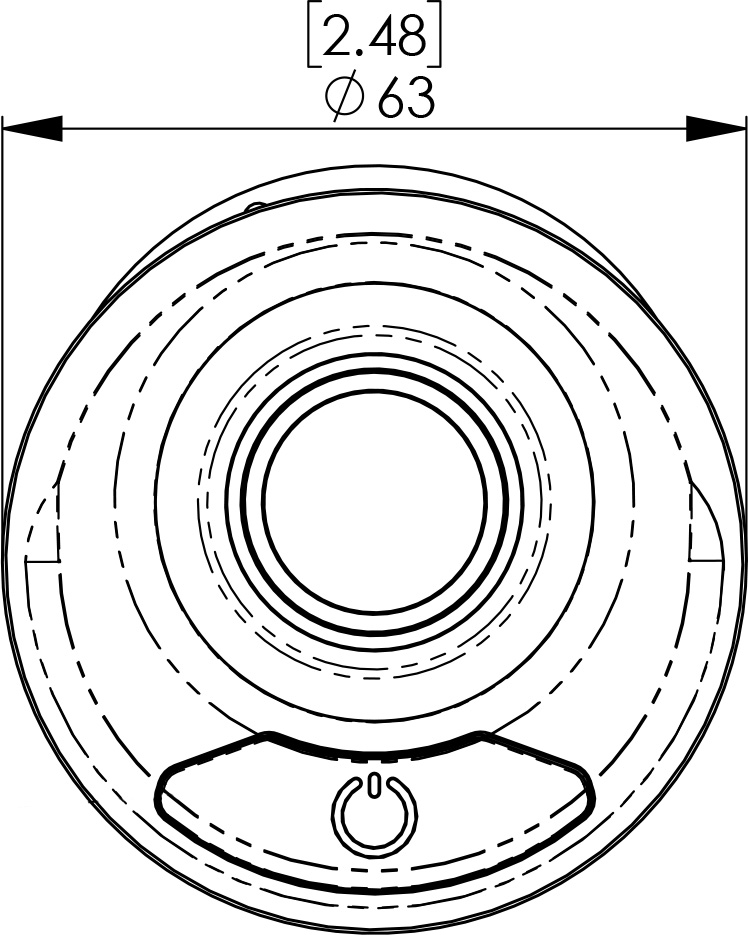

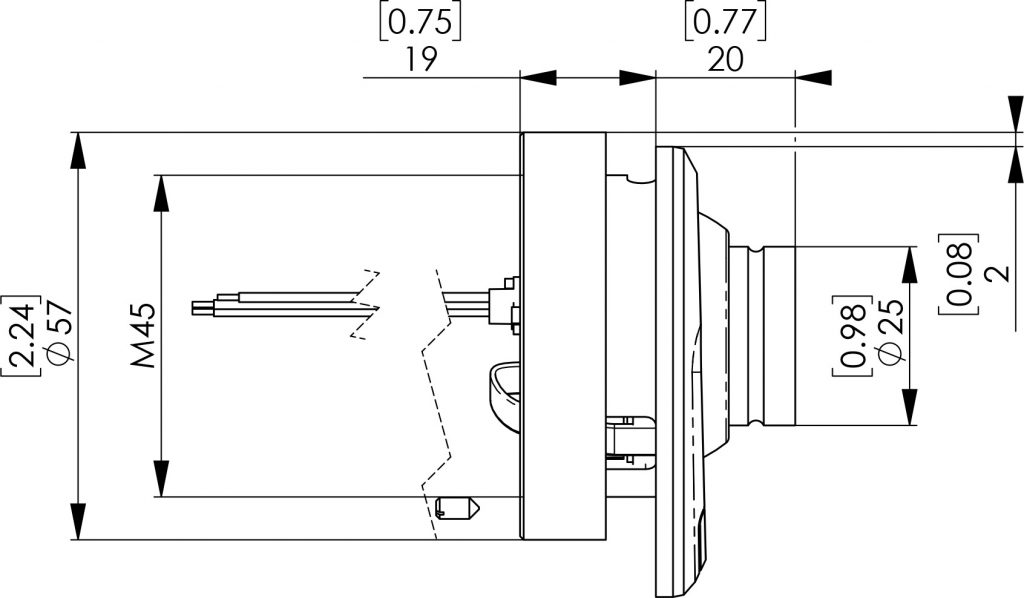

  • Dimensions:: See technical drawing
  • Weight: 105 g / 3.7 oz
  • Input current (FULL): 0.139A @14V 0.085A @28V
  • Input current (DIM): 0.006A @14V 0.006A @28V
  • Input power (FULL): 1.9W @14V (typ) 2.38W @28V (typ)
  • Input power (DIM): 0.084W @14V (typ) 0.168W @28V (typ)
