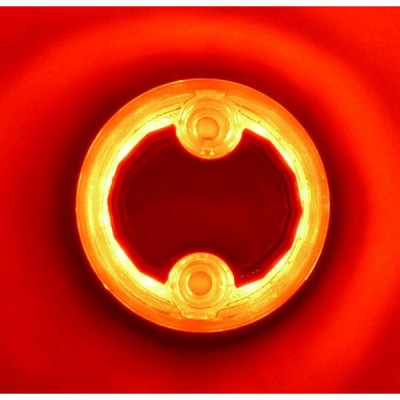

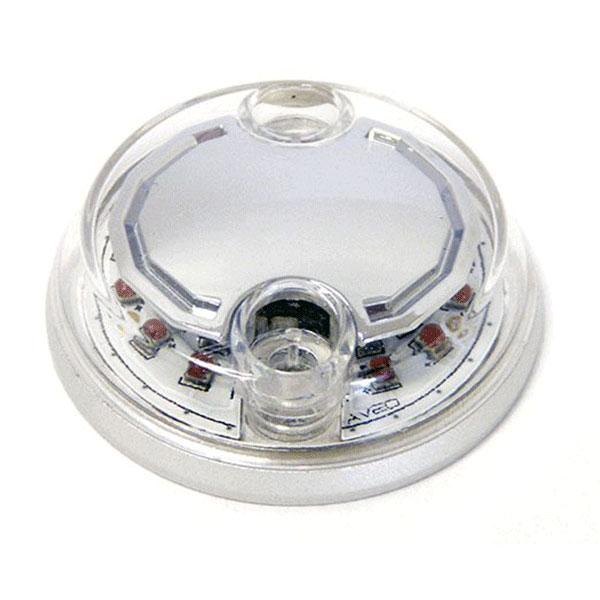

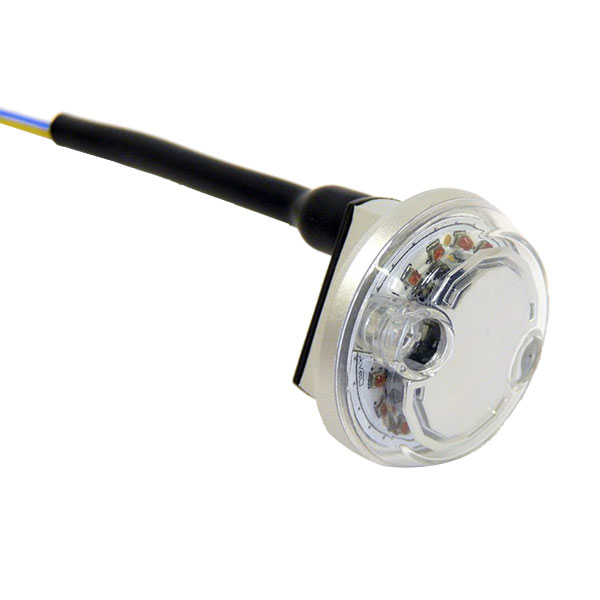

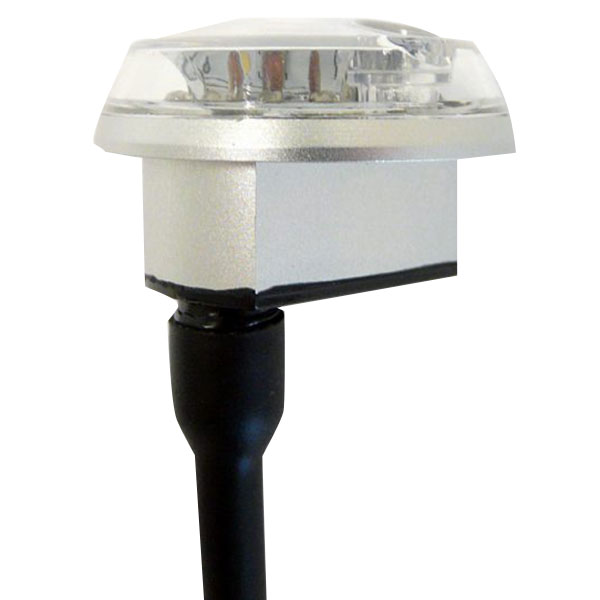

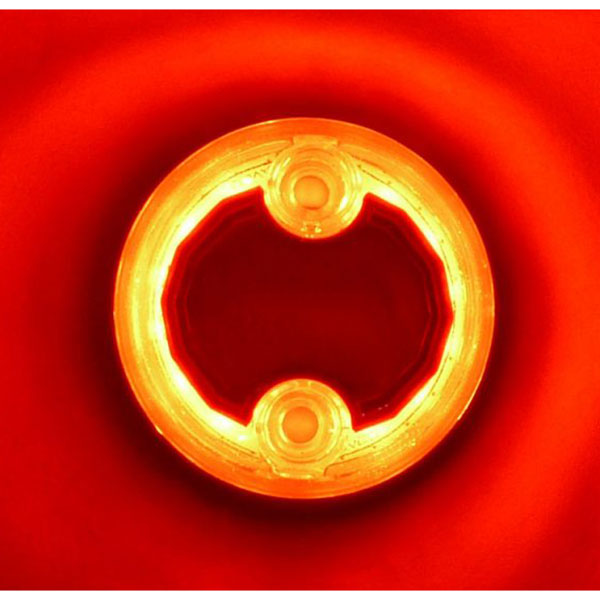

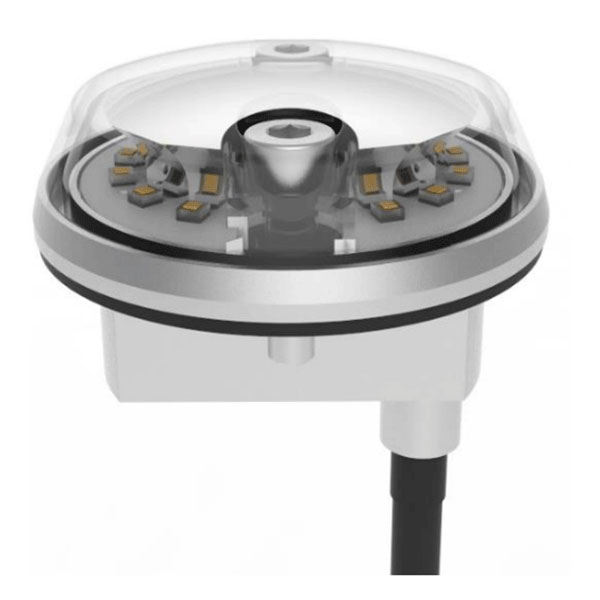

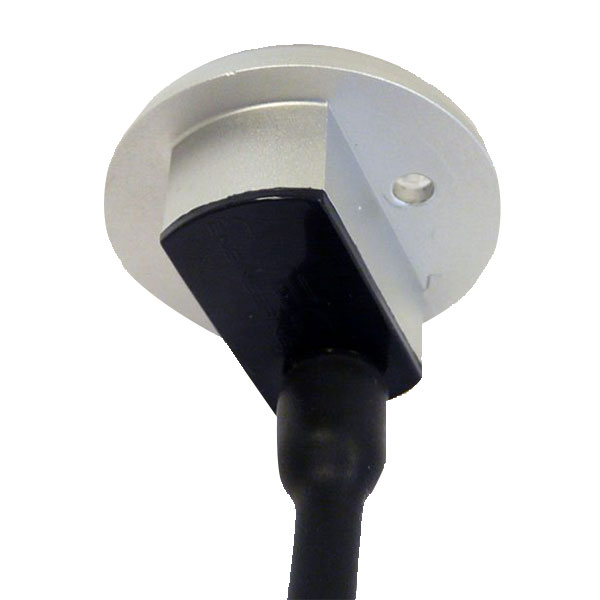

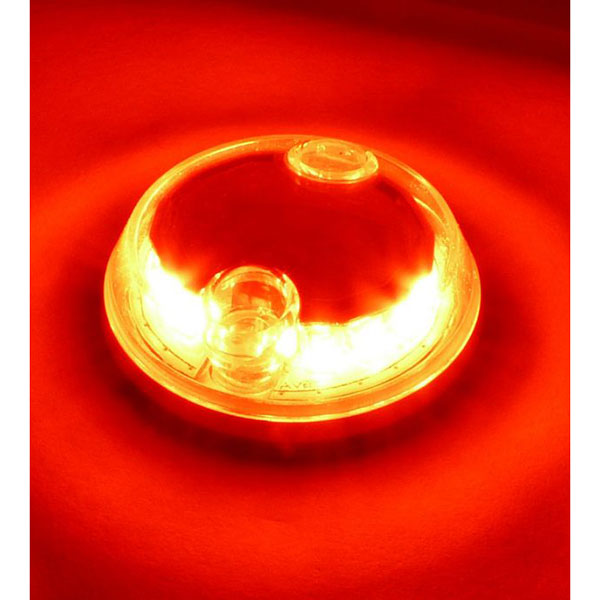

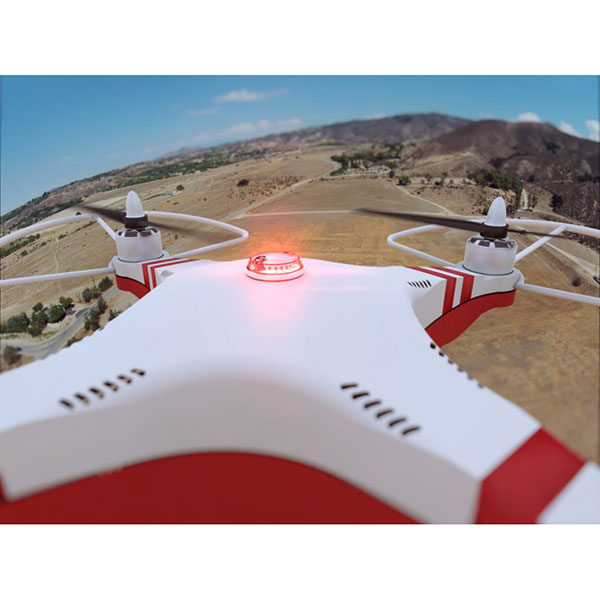

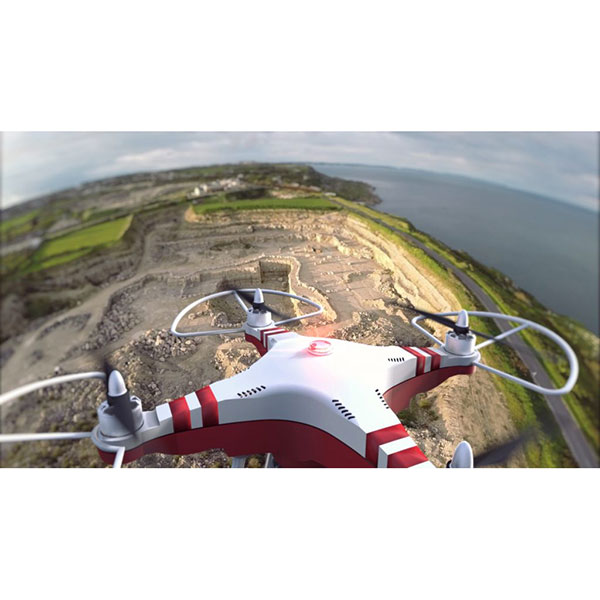

Aveo Micromax™ Uavs / Mini Drones LED Anti-Collision Light
FREE Shipping
Overview
|
Fully D0-160 tested and weighing less than 30 grams, MicroMax™ will help you comply with all the tightening and future regulations around operating
small UAVs/MiniDrones and ensure SAFETY is included in your flight operations. Available in Red or White, the patented MicroMax™ provides a 360 degree arc of coverage. An amazing product from Aveo’s famous engineering prowess, which has made it the world market leader in UAV lighting by a wide margin.
Note: Not Approved for installation on Certified Aircraft. This is not a TSO Certified Light. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features

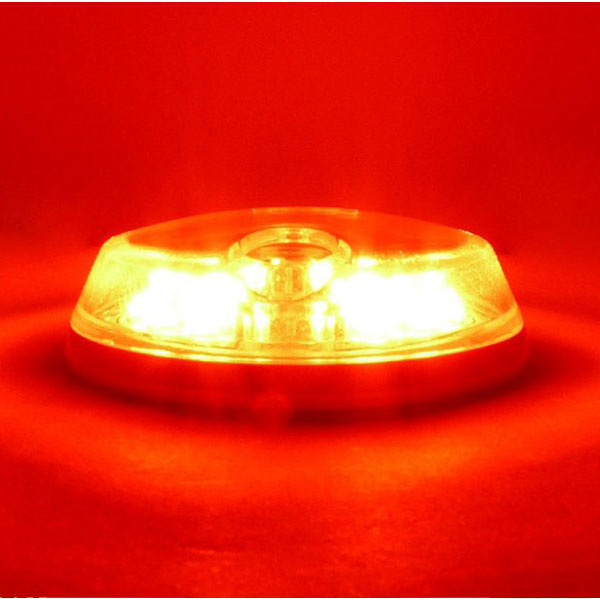

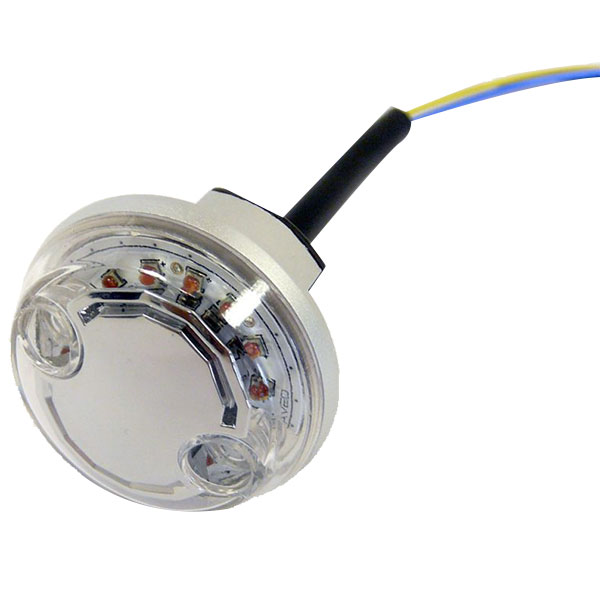

- Packed with 12 ultra high brightness CREE LEDs in RED or WHITE color that are the industry state-of-the-art in performance and output lumens, the MicroMax feature a significantly lower footprint than competitor lights.
- An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any aircraft requiring a rear coverage light due to wingtip light coverage zone limits.
- Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 32 volt input range too!
Specifications
- Dimensions – above surface (mm): 35 mm x 11 mm
- Dimensions – above surface (inches): 1.378“ x 0.433“
- Weight: Less 30 g / 1.05 oz
- Operating voltage range: 9-32 V DC
- Output power: 5.4W (peak)
- Input current: 0.25A @28V (peak)
- Repetition rate of strobe: 50 cycles per minute
- Ambient temperature: from -40°C to +85°C
- from -40°F to +185°F
- Overheat protection: Yes
- Recommended size of mounting screw: M3
- Reverse polarity protection: Yes
- Over-Voltage spike protection: 60V / 1s
- Under-Voltage protection: Yes, 8.5V
- Over-Voltage protection: Yes, 33V
- Waterproof, Dust-proof, Vibration-proof: Yes
Benefits
- Waterproof
- Shockproof
- Dust-proof
Drawing
Reviews
Very bright. Not as bright and regular size LED beacons but brighter than any legacy beacons out there. Im using it as a 2nd beacon in the vertical stab after my LED beacon on the belly
Verified Purchase
Aveo Micromaxlite Anti-Collision LED Light Red
