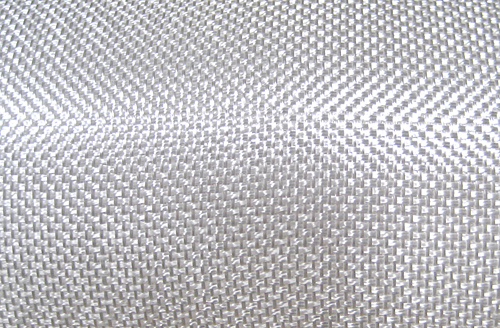

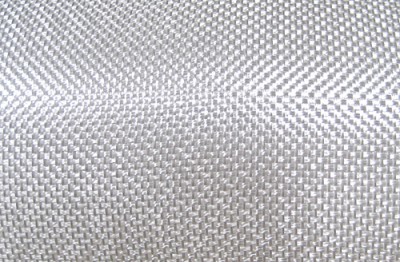

#4533 S-Glass Cloth - 5.8 OZ

$24.75/Yard
Quantity
Add to Wishlist
Part# 4533-60
MFR Model# F-81

Overview

The chemical formulation of S-glass differs from that of standard E-glass. Examples of E-glass are found in the Standard Fiberglass Cloth section of this catalog. S-glass is 30% stronger and 15% stiffer than E-glass and retains these properties up to 1500° F. S-glass is also considerably tougher than an equivalent E-glass. Other styles are available on request. Sold by the yard.

Specifications
  • Style #: 4533
  • Weight (Oz./Sq Yd.): 5.8
  • Width: 60"
  • Thickness: .009"
  • W x F: 18 x 18
  • Weave: Plain

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Ragnar E Verified Purchase

S-Glass-Style 4533 5.8 Oz. 60

February 25, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you inform me as to the thread count for the warp and fill of this fabric as well as the weight before layup?

The thread count is 18x18, and the weight is 5.59 oz.

Q: Hi! What's the width of this fabric roll?

He have updated the description to include the width, which is 60".

Q: Does this s-glass cloth meet any MIL or AMS specification?

Per the supplier: the finish can meet AMS3824C.

Q: Is the #4533 S glass a bi-directional weave?

Yes, it is a bi-directional cloth.

Q: What is the thickness of the 4533 S-Glass cloth 5.8 oz, part # 4533-60?

Per the tech data sheet, it is 7.40 mil.
