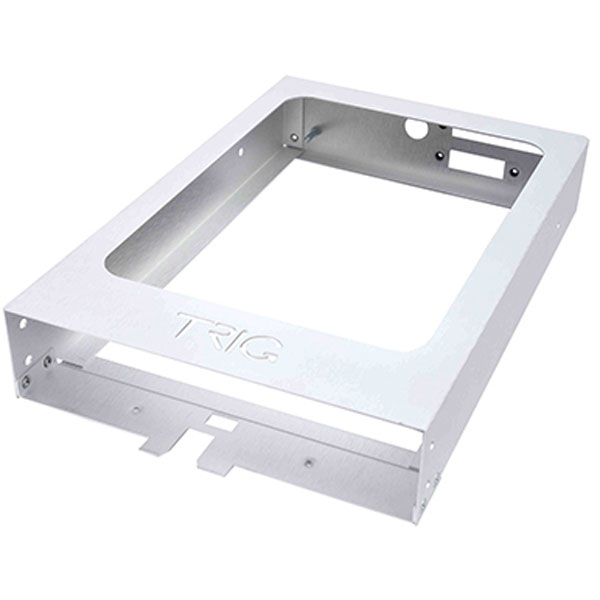

Trig TY96 / TY97 Installation Kit
$279.95/Each
Part# 11-15378
MFR Model# 01650-00
MFR Model# 01650-00
FREE Shipping
Overview
|
The TY96 and TY97 VHF radio systems are ED-23C compliant class C (25 kHz offset carrier) and class H1 and H2 (8.33 kHz offset carrier) VHF radios. The TY96 has a nominal power output of 10 watts, and meets the power output requirements for Class 3 and Class 5. The TY97 has a nominal power output of 16 watts, and meets the power output requirements for Class 3 and Class 5. The TY96 and TY97 are certified to ETSO 2C169a, 2C128a, TSO C169a and TSO C128a.
The TY96 can be powered from either a 14 volt nominal or 28 volt nominal DC power supply with no configuration changes required. The TY97 requires a 28 volt nominal DC power supply. The installation kit for Trig TY96/TY97 transceivers include: tray, connector, and manuals. Note: Includes EASA Form 1. Suitable for Part 23/LSA/Experimental. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
The TY96/TY97 installation kit includes the following items:| Unit Description | Qty |
|---|---|
| Connector Mounting Plate | 1 |
| Connector Standard Mount 25 Way D receptacle to M24308 | 1 |
| Crimp Socket Contact, Wire size 20-24 AWG | 25 |
| D-Sub Shell | 1 |
| D-Sub Shell Clamp | 1 |
| D- Sub Shell Cover | 1 |
| BNC Female to Blind Mate Adapter | 1 |
| Washer, 7/16", Plain, Stainless Steel | 1 |
| Circlip, 7/16", External Stainless Steel | 1 |
| Washer, 7/16", Wave, Stainless Stell | 1 |
| Screw, Pozidrive, Csk Head, M2.5 x 5mm, Pre Patch | 2 |
| Screw, Pozidrive, Pan Head, M2.5 x 5mm, Pre Patch | 6 |
| Screw, Pozidrive, Pan Head, M2.5 x 8mm, Pre Patch | 4 |
| Screw, Philips, Csk head, 4-40 UNC x 0.312", Pre Patch | 2 |
| Washer, M2.5 Rect Sect, Spring | 1 |
| User Label Sheet | 1 |
| USB Flash Drive | 1 |
