Antenna Installation Templates

From $25.85 to $26.95
Description Part Number Price Buy
Antenna Install Template 525
11-06656
$25.85
Quantity
Antenna Install Template 430
11-06665
$26.95
Quantity
Antenna Install Template 470
11-06667
$26.95
Quantity
Antenna Instl Template 350-Dia
11-06671
$26.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Custom designed templates improve the antenna sealing process, making it more precise, efficient and cost-effective.

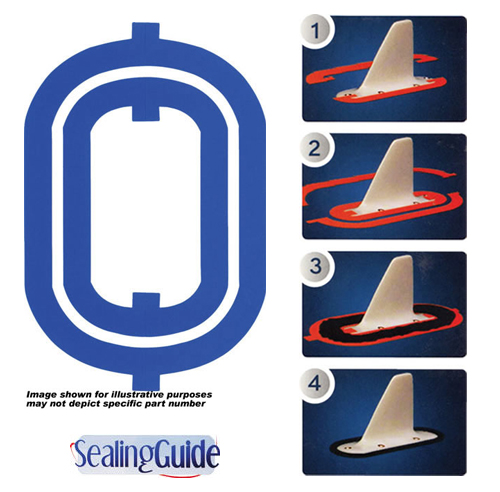

Each Sealing Guide template is custom designed to correspond to an individual antenna. They consists of 2 pieces, one inner part and one outer part. The inner template adheres to the base of the antenna, the outer template is placed on the body of the aircraft surrounding the antenna. Sealant is applied to the gap between the templates. Sealant is applied to the gap between the templates. When the templates are removed and discarded, the sealant is left to cure, resulting in a clean, precise and smooth seal.

Each template is custom designed to correspond to an individual antenna. You will no longer need to laboriously cut and paste various lengths of tape, trying to fit them around the irregular antenna shape.

The Sealing Guide template consists of 2 pieces, one inner part and one outer part. Application is simple. The inner template adheres to the base of the antenna, and the outer template is placed on the body of the aircraft surrounding the antenna. Sealant is applied to the gap between the templates. The templates are then removed and discarded. The sealant is left to cure, resulting in a clean, precise and smooth seal.
Incorporating the “Sealing Guide” system into your sealing process will significantly reduce labor time.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

For use with the following antennas:
PN
CI-105-9, CI-105,
CI-105-16, AV-74
11-06653
CI-105-3
11-06653
CI-102
11-06655
CI-100 Series, CI-105-6, CI-105-7, CI-110-40 Series, CI-110-41 Series, CI-110-60 Series, CI-110-61 Series, S65-5366-850L, S65-5366-890L, S65-5366-2L, S65-5366-3L, S65-5366-7L, S65-5366-8L, S65-5366-10L,
S65-5366-10LC, S65-5366-11L, S65-5366-116L, S65-5366-119L, S65-5366-144L, S65-5366-145L, S65-5366-168L, S65-5366-4 Series,
AV-741, DM N150 Series, DM N170 Series
11-06656
CI-275-2, CI-275-5, CI-310-20, CI-310-22, CI-310-25
11-06658
CI-305
11-06660
CI-118-10, CI-118-1, CI-118-9, CI-118
11-06662
CI-200, CI-175
11-06663
CI-121, CI-122, CI-177, CI-177-1, CI-177-13, CI-177-3, CI-177-4, CI-177-20, CI-291, CI-292-1, CI-292-2, CI-292-3, CI-292-4, CI-222, CI-222-1, CI-4510, CI-317, CI-317-1,
CI-405 Active Series, CI-405-26 Active, AV-10, AV-14, AV-17
11-06665
CI-248-5, CI-248-30, CI-248-180, CI-2480-100, CI-2480-101, CI-2480-200, CI-2480-201, CI-2480-204, CI-2480-206, CI-2480-300, CI-2480-301, CI-2480-304, CI-2480-400, CI-2480-401, CI-420-10,
CI-420-16, CI-420-220, CI-420-221, CI-420-224, CI-420-230, CI-420-420, CI-420-421, 2.70-4.40, 110-338
11-06666
CI-401 Series ACT, CI-401 Series PAS, S67-1575-16, S67-1575-52, S67-1575-82, S67-1575-132, S67-1575-133, S67-1575-134, S67-1575-135, S67-1575-145, AV-GPS, DM N1021-1
11-06667
CI-145, CI-2680-500, CI-2680-400, CI-2680-401,
CI-119, CI-138, CI-139, CI-196
11-06668
CI-119, CI-138, CI-139, CI-145, CI-145-1, CI-196, CI-238
11-06669
CI-211, CI-211-1, CI-211-1-L, CI-211-16, CI-211-L
11-06670
CI-408-20, S67-1575-20, S67-1575-39, S67-1575-49, S67-1575-59, S67-1575-14, S67-1575-76, S67-1575-86, S67-1575-98, S67-1575-96,
S67-1575-136, S67-1575-863, S67-1575-109, S67-1575-137
11-06671

CI-108, CI-108-1, CI-108-1-L, CI-108-L
11-06672
CI-164, CI-165
11-06673

Reviews

As ordered.

Steven S Verified Purchase

Antenna Install Template 430

April 30, 2024

Q&A
