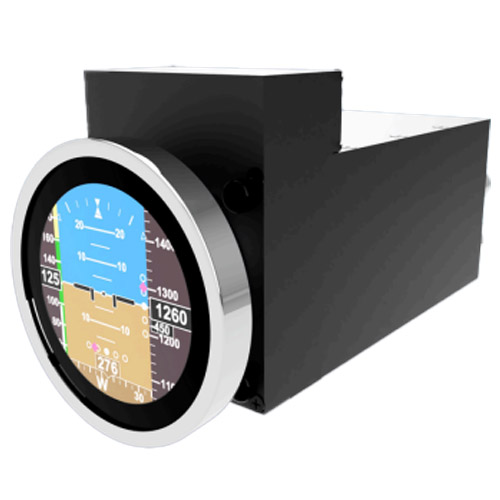

Microair Avionics T3000BNX2D Skysuite Navigation Sensors With Battery Backup

0 Reviews 0 Answered Questions
$2823.00/Each
Quantity
Add to Wishlist
Part# 11-20672
MFR Model# 20001878

Overview

Experience the future of aviation technology with the T3000 SkySuite, our state-of-the-art avionics system. Engineered with a modular design, the T3000 seamlessly integrates essential functionalities, to elevate your flying experience. Choose to purchase the complete system at once or gradually enhance your setup by adding capabilities and components over time.

T3000 skySuite - NAVIGATION SENSORS

Equip your aircraft with our precision navigation sensors for optimal performance. The T3000 Navigation Sensors module provides:
  • GNSS Position Source
  • Attitude and Heading Reference System (AHRS)
  • Air Data
    • Airspeed
    • Altitude
    • OAT
Central sensors feed a T3000 skySuite active touch screen display that offers multiple user-selected ‘face’ options to display sensor data.

Include additional remote displays to tailor your instrument panel for your specific needs.

For added safety and reliability, combine the Navigation Sensors module with a 90-minute battery backup module. Step into the future of aviation with the new T3000.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Navigator:
  • GNSS Position Source
  • DO-316
  • Attitude and Heading Reference System (AHRS)
  • DO-334 Class A3 H3 T1
  • Air Data
  • Airspeed to 300kts AS8002B/AS8005A
  • Altitude to 30,000ft
  • Outside Air Temp -55 to 150 deg C (-67 to 302 deg F)

  • Options:
  • Software upgradable to WAAS GNNS Position Source

  • Display:
  • Integrated or Remote option (same functionality)
  • 3.1" Display
  • 2.1” (53mm) high resolution LCD active touch screen
  • 480x480 pixel with 16 bit colour
  • Sunlight readable with brightness control and ambient light
  • sensor
  • 2.4GHz Bluetooth and WiFi
  • Selectable “Faces” to configure display as a range of
  • common instruments including:
    • Artificial Horizon (AH)
    • Altimeter (ALT)
    • Air Speed Indicator (ASI)
    • Directional Gyro (DG)
    • Turn Coordinator (TC)
    • Horizontal Situation Indicator (HIS)
    • Vertical Speed Indicator (VSI)
    • Radio Magnetic Indicator (RMI)
    • Clock with Timer (CLK)
    • Traffic Display (TRA)
    • Standby EFIS (STDBY)
    • COMM Radio and Transponder Controls
    • NAV Radio Controls
    • Plus settings pages
