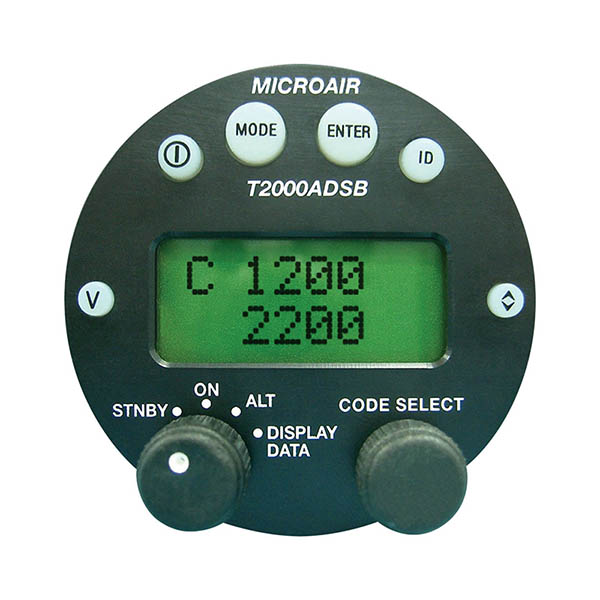

Overview

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• Enhanced visibility – to both other aircraft and Air Traffic Control
• Compact design in one unit – enables simple ready to go, plug and play installation
• Seamless integration of GPS position source and altitude encoder – no further configuration or purchases required
• Suitable for light sport and experimental aircraft
• Mode A/C with ADSB Out
• Integrated GPS position source and altitude encoder in one unit
• Compact and lightweight design. Suits standard 57mm (2 ¼ inch) round panel cut out, with 160mm housing depth.
• 200 watt antenna output
• Low power consumption
• Display screen readable in all lighting conditions
• Designed and manufactured in Australia
• Compliant to Civil Aviation Safety Authority (CASA), Civil Aviation Authority (CAA) of New Zealand requirements and Federal Aviation Administration (FAA) for ADSB Out

Specifications

• Weight: 0.6 kg
• Dimensions: 16 × 6.1 × 6.1 cm
• Compatibility:
• Compatible with any C88a compliant altitude encoder with either a Gilham or serial output. Or use the inbuilt altimeter.
• TSO EQUIVALENCE
• C74c Class 1a – Transponder
• C166b Class B0 1090Mhz Extended Squitter ADS-B Out (with B1S power output and antenna configuration meeting all 14 CFR 91.227 requirements)
• C196b GPS Position Source (with software upgrade to C145f in late 2023)
• C106c & C88a – Altimeter (to 30,000 feet)
• Mounting: Round panel mount 2 ¼” (57 mm)
• Control Backlit: LCD with rotary selector for setting Mode A code, Flight ID and settings. Push buttons for easy access to common features such as Ident and VFR default code.
• Connections:
• DB25 for power, Gillham code, serial, discrete inputs. Plug and play with the existing T2000SFL Transponder.
• BNC – Transponder antenna
• TNC – GPS antenna
• 1/8” NPT- Static
• Temperature: -20 to +55 Celsius
• Altitude: 55,000 feet, inbuilt altimeter to 30,000 feet
• Power Unit: 10 to 33 volts DC negative chassis ground, 2W average (7W peak)
• RF Output: 1090 Mhz at 200 watts (nominal peak power)
• SWR Tolerance: <5:1 or open feed line
• Accompanying Apps:
• iOS and Android T2000 App
• Allows configuration and settings from an intuitive app installed on the owner’s or pilot’s personal device
• Secondary display of altimetry and position data
• Facilitates periodic software updates as new features and functions are released
