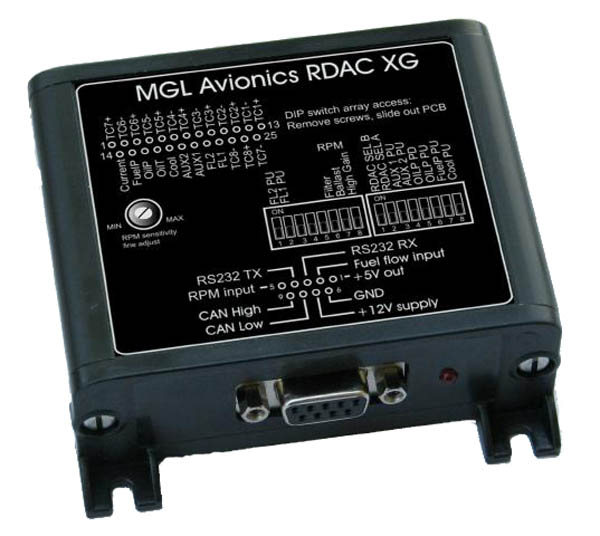

MGL RDAC-XG (8 Termocouple Channels)

2 Reviews 1 Answered Question
$215.00/Each
Quantity
Add to Wishlist
Part# 11-16718

Overview

The RDAC XG is a compact version of the RDAC XF Engine monitor module and can be used used with Xtreme, Odyssey G2, Voyager G2 and all iEFIS instruments.

The RDAC XG provides a CAN bus interface. Further to this a RS232 interface is provided allowing third party (OEM) use of the RDAC system.

The RDAC XG is fully compatible with the larger RDAC XF subject to the following differences:
  • 8 Channels Thermocouple system (vs 12 channels in the RDAC XF)

  • 1 RPM input (vs 2 in the RDAC XF)

  • 1 Fuel flow sender input (vs 2 in the RDAC XF)

  • No manifold pressure sensor option

  • The RDAC XF uses convenient screw terminals for connection of senders while the RDAC XG uses DB9 and DB25 connectors with supplied pre-made cables.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Once installed I love it. But installation and set-up instructions arent as detailed as I would have liked. I needed this MGL RDAC unit to feed 4 CHT and 4 EGT probes to the MGL Vega instrument/display. Fortunately I was able to talk with MGL tech support to get my questions answered.

David B Verified Purchase

MGL Rdac Xg, 8 Termocouple Channels
August 23, 2024

Works well, good support. Only slightly frustrating thing is when using the RDAC you cannot manually adjust the thermocouple inputs +/- a few degrees for variation thats close to their error bounds. The error bound is only several degrees F, mine reads 13F low under a boil test and so given its above a 10F change I figure I should placard the error for CHT temps.

Brent D
April 3, 2024

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: If I already have the Vega EMS-1, do I need any extra cables outside of what is included with this or the EMS-1? I will be installing on a Rotax 912ULS. Thanks! Ready to order.

Per MGL website: No, there is no requirement of an extra harness or cables.
