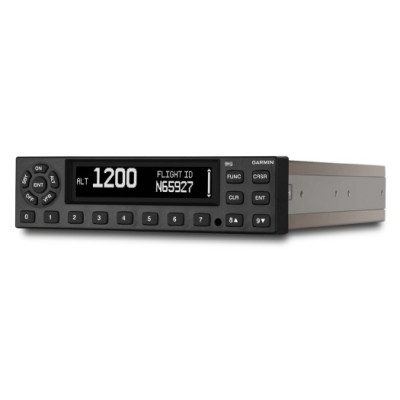

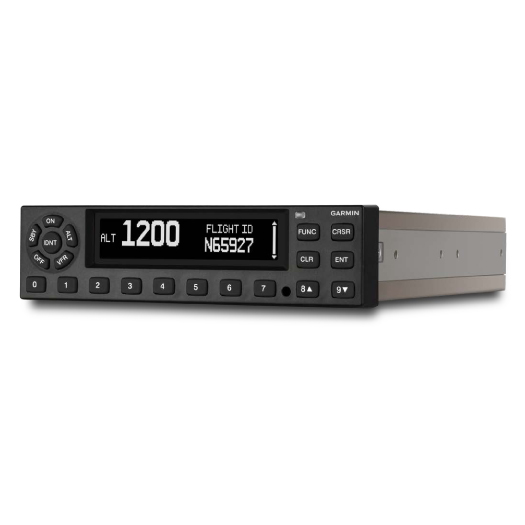

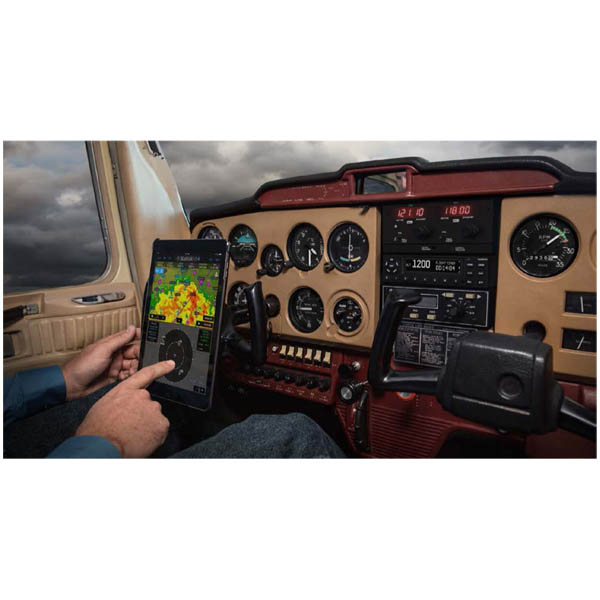

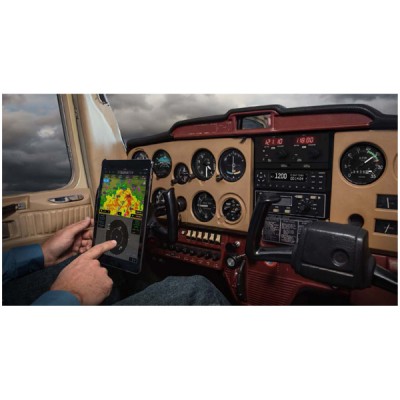

Garmin GTX335 ADS-B Transponder With GPS + GAE12 Encoder Promo Kit With Harness For Experimental Aircraft
FREE Shipping
Overview
|
Note: This promotional kit includes a GA 35 WAAS antenna, offering customers a completely standalone ADS-B “Out” solution. The GTX 335 system is certified, however, is offered as a combination with harness for experimental aircraft only. All-inclusive 1090 MHz ADS-B “Out” Transponder Solution
The Inside Track to ADS-B “Out” With more fielded ADS-B solutions than any other brand in the industry, Garmin is committed to making the transition to NextGen airspace as simple and straightforward as possible. The IFR-certified GTX 335 is a prime example. It looks and operates like a standard Mode S transponder. It fits in the same 1.65-inch high slot in your avionics stack. It boasts a digital display, a pressure altitude readout, and dedicated pushbuttons numbered 0-9 for quick and easy squawk code entry. Plus, it’s an all solid-state design, which makes for lower power consumption and enhanced reliability, compared to earlier-generation transponder technology. What’s more, the addition of 1090 MHz ADS-B “Out” transmission capability (using precise GPS-referenced positioning information) enables the GTX 335 to automatically output more accurate, and more useful, traffic surveillance data to ATC – including aircraft flight ID, position, altitude, velocity, climb/descent, and heading information. Conventional Mode S and Mode C transponders can only broadcast altitude and squawk code – which means they require ground-based radar to correlate and identify the aircraft’s position on the controller’s radar screen. Enhanced Traffic Surveillance Using 1090 MHz extended squitter ADS-B “Out” transmission, the Garmin GTX 335 improves upon the existing transponder query system while working seamlessly with existing ATC protocols. The ADS-B reports provide ground controllers with considerably faster updates than traditional radar. And by simultaneously broadcasting this information to ADS-B “In” display-equipped pilots, it enables them to essentially see the same traffic picture for their location that ATC is watching on the ground. Leverage Your Existing Avionics Designed to interface with a wide range of avionics, the GTX 335 enables operators to leverage their existing cockpit equipment to meet ADS-B “Out” requirements with a minimum of cost, downtime and disruption to their panels. The ES transponder’s 1090 MHz ADS-B “Out” signal meets worldwide requirements for flight at any altitude. And, as a size-conforming replacement for many existing Mode S or Mode C transponders, the GTX 335 makes it easy to plug in the NextGen capability you need to the avionics layout you already have. Altitude Encoding Made Simple In addition to its WAAS-enabled position reporting capabilities, the GTX 335R can also be paired with an optional Garmin altitude encoder to satisfy data transmission requirements for IFR. As opposed to other transponders with altitude encoding built in, the Garmin altitude encoder mounts separately on the install rack. So, should the transponder ever require removal, there’s no need for the static line to be disconnected. Which, in turn, eliminates the need for a follow-on leak check, and thus helps minimize ongoing service costs. Note: Transponder antenna is not provided. Any transponder antenna will work for this unit. The most common antenna for the experimental aircraft market is the Ted, part # 11-17995.The most common for the certified aircraft market is the RAMI AV-22. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Documents
Wiring Harness
The four-foot wiring harness includes installation of the GAE12 and USB Module to the GTX 335, and wiring for:
- 2 RS232
- Audio out
- Power/Ground
- AUX Inhibit
- EXT Identifier
- Air Data Select
- Squat Switch
- EXT Standby
- Dimmer Hi/Lo
Reviews
nice part
Awesome transponder. Once again Garmin sets the bar for elegance of design and ease of installation. Yes that’s exactly how an encoder should be, a tiny chip mounted on the back of the transponder. The installation amounts to running a power/ground wire then antennas and static pressure. Beautiful!
Very good, fast shipment (3 business days), and kit complete, as advertised. I flew it and the plane to the Avionics A&P. Once installed and working, rating will be upgraded to a 5 star!
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This unit would require a GNS430W in order to display TIS capabilities.
No, this is out only.
Yes, a WAAS GPS antenna is required. This comes included in this kit.
Per Garmin: If this is a certified aircraft the G5 can not be connected to an external antenna.
No, the GTX 335 is not a diversity ADS-B unit and does not meet the Canadian ADS-B requirements.
Since this is the experimental unit, RG-58 would be more than acceptable but the RG-400 is the most popular and can be used on certified aircraft.
Yes, this is a complete kit for ADS-B out compliance.
No, the connector/backplate comes attached to the harness.
Yes, the mounting tray is in the box.
Yes, a transponder antenna is required. Transponder antenna is not provided. Any transponder antenna will work for this unit.
