With this flush mount, the G5 unit may be recessed into the instrument panel which positions the display flush with the instrument panel. Some

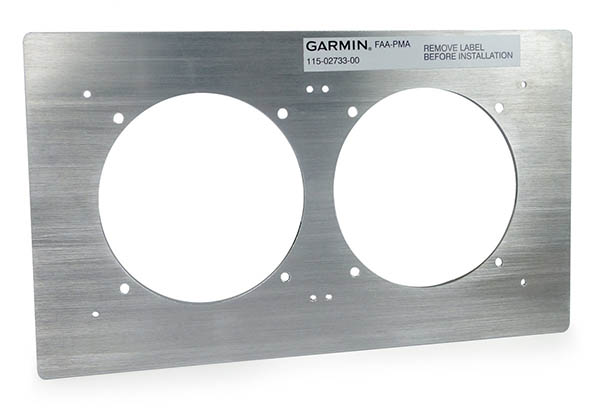

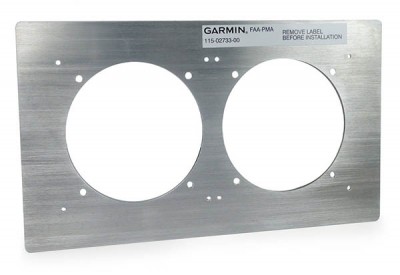

instrument panels may not be capable of supporting this modification. The Recessed Adapter Plate includes reference holes and can be used as a template for creating the recessed cutout. Supports one or two G5 units. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Garmin G5 Flush Mount Kit PMA
CAUTION! For this mounting system to work you MUST purchase the REQUIRED HARDWARE that is ONLY mention in the G5 installation manual. IMHO, the finished product looks good, BUT requires lots of work to get it there. CAUTION! This type of recessed mount with NOT fit all panels (sa. Commander 114) Ask me how I know. :)
Garmin G5 Flush Mount Kit PMA
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these can be used with the instruments in either horizontal or vertical stack. Vertical stack is the most common install. The installer will need to determine the legality of additional cuts required to the panel.
This would be included in the installation manual for the G5.
