Comdat GPS - CI-401-221

$661.00/Each
Quantity
Add to Wishlist
Part# 11-06795
MFR Model# CI-401-221

Overview

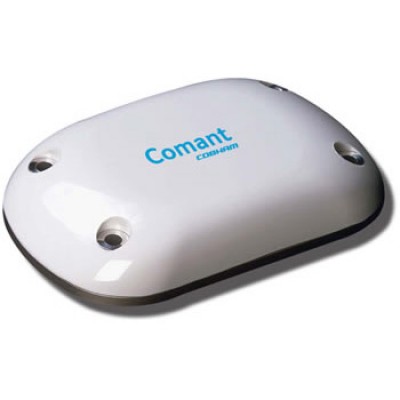

Comant’s ComDat® stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets.

Meets RTCA DO 160-D operating standards including direct effects lightning.

Designed to operate with Garmin 17.0 dB gain panel mount GPS receivers.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Not compatible with most hand held GPS receiver units.

Applications
Most aircraft up to and including business jets. Consult your FBO or installation shop for best application information.

Frequencies Covered
GPS 1575.42 MHz / 17.0 dB Gain


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

GPS Preamplifier Characteristics
Frequency
1575.42 +/-3 MHz
VSWR
1.5:1 Maximum
Polarization
RHCP
Radiation Pattern
Hemispherical
Output Impedance
50 Ohms

Gain@ 1575.42 MHz

17 +/ -3db
DC Voltage
4-24 Volts
DC Current Min/Max
40 mA Max.
Noise Figure
3.5 dB
Selectivity
-40 dB min. @ satcom 1626.5 MHz
Mechanical / Enviromental
Weight
6.2 Ounces
RTCA Env. / TSO
DO 160-D / C 144
Connector
TNC (Female)
